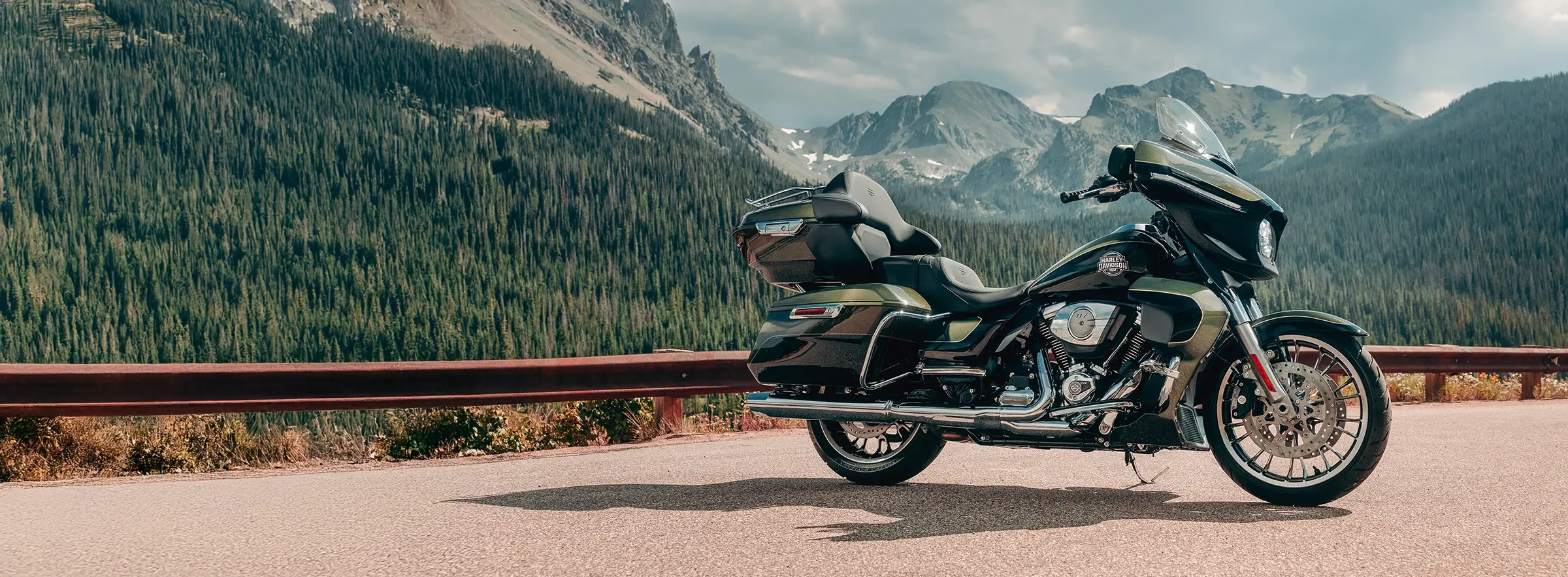

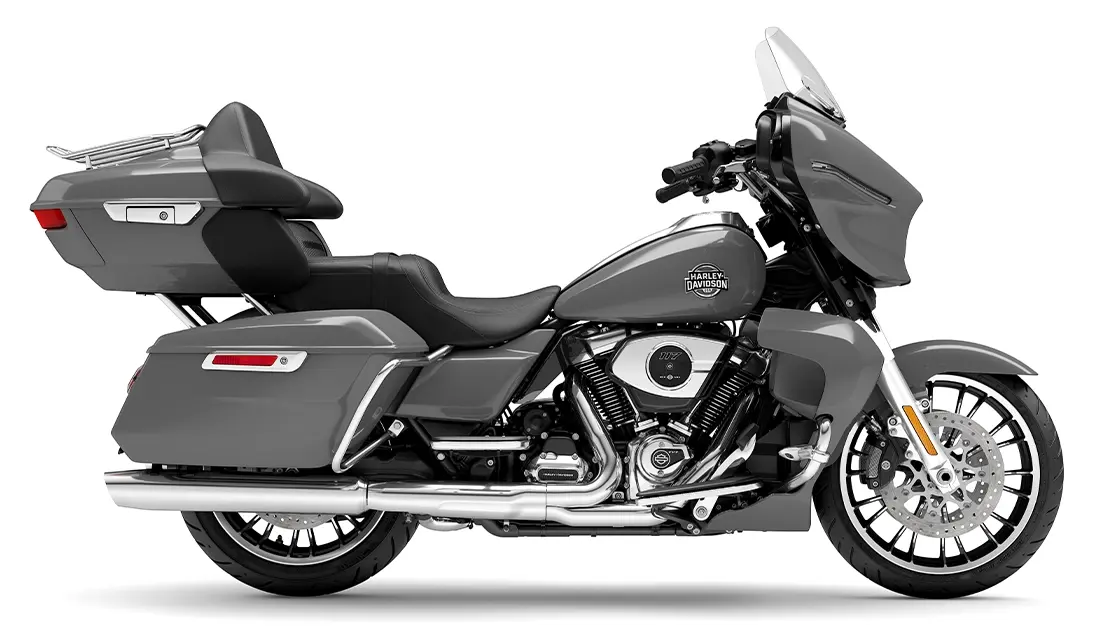

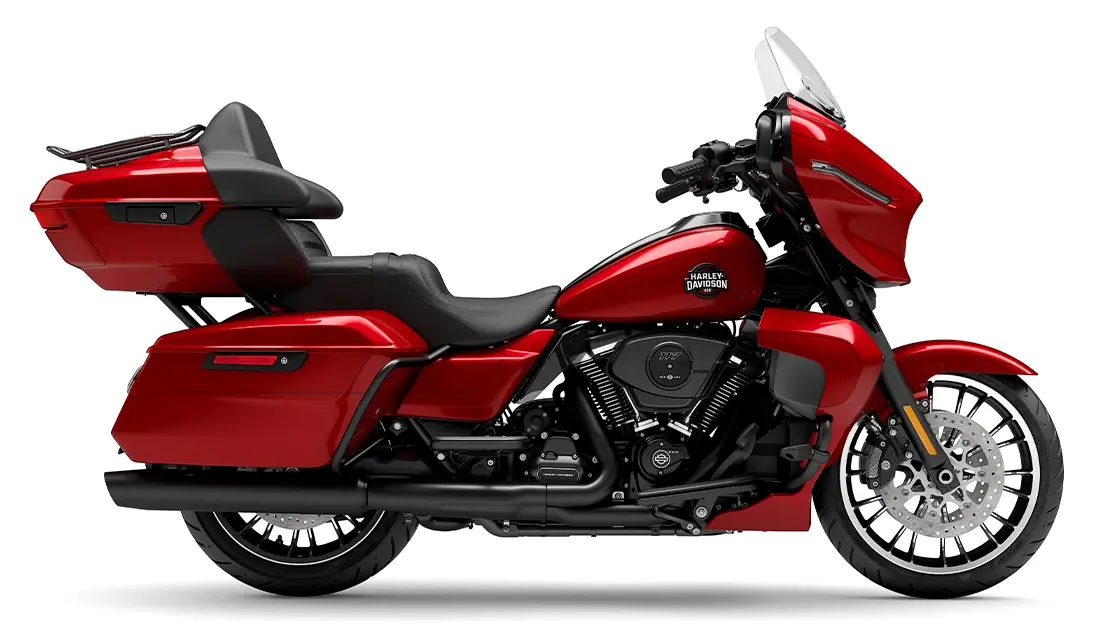

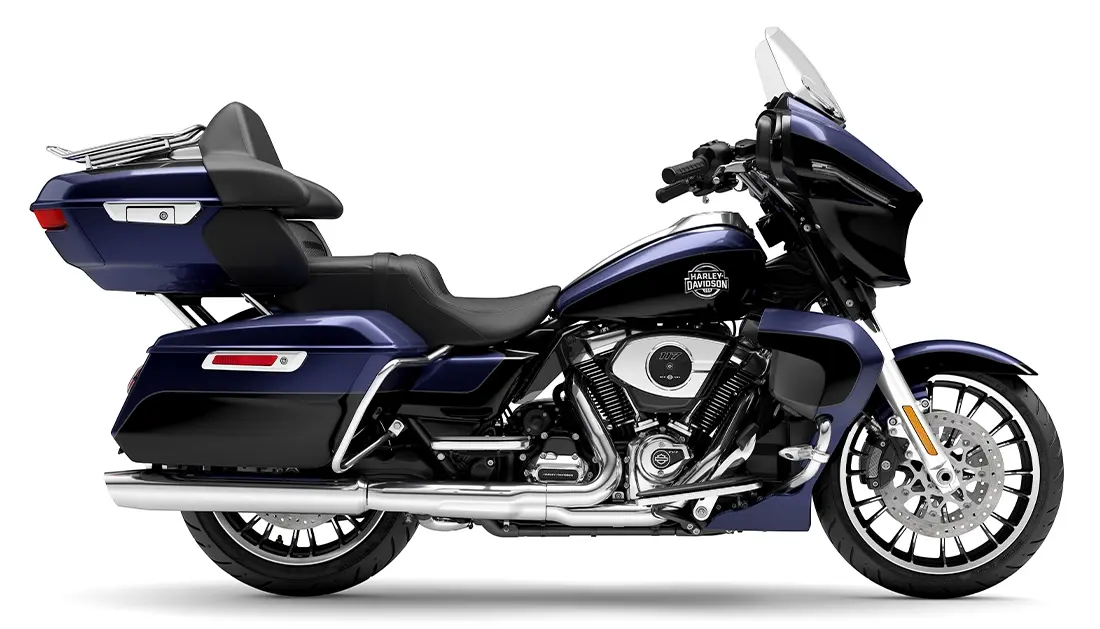

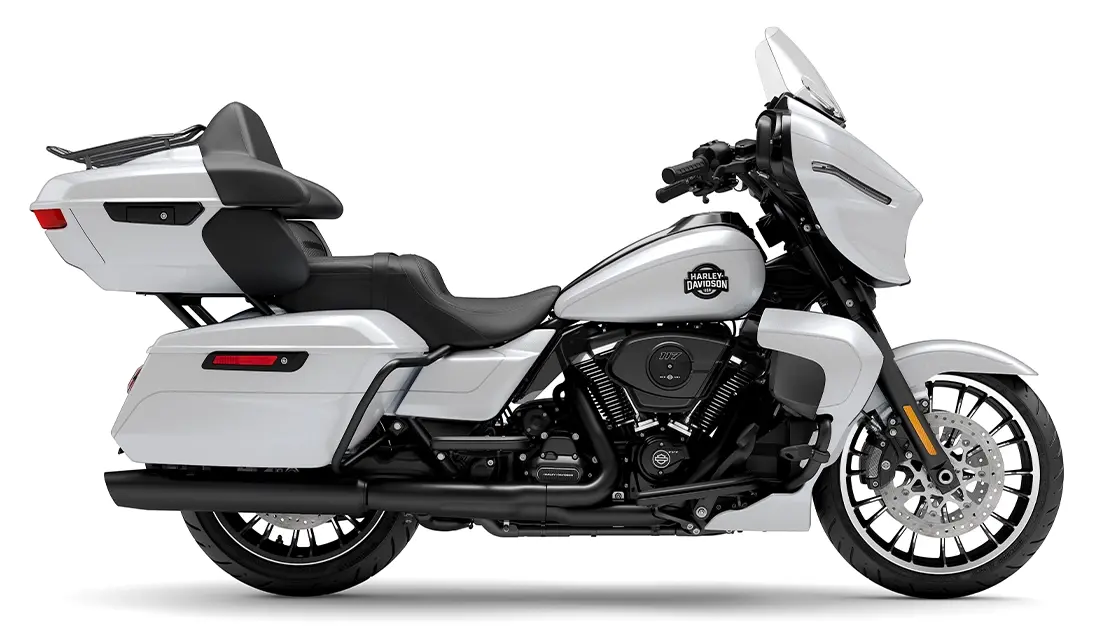

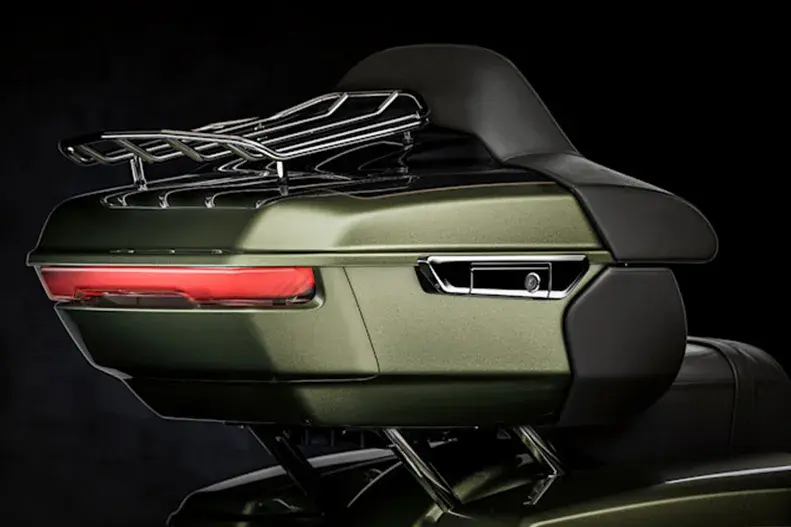

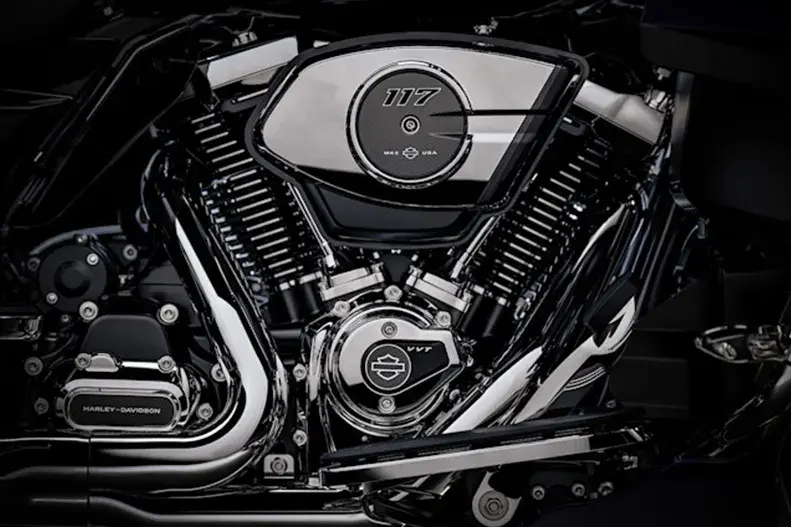

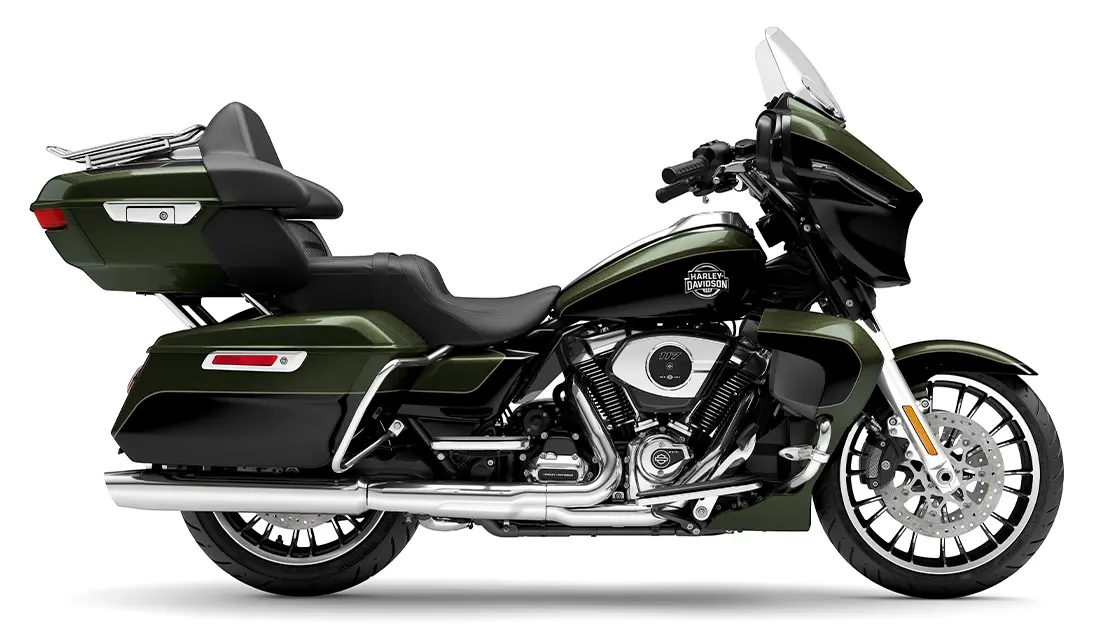

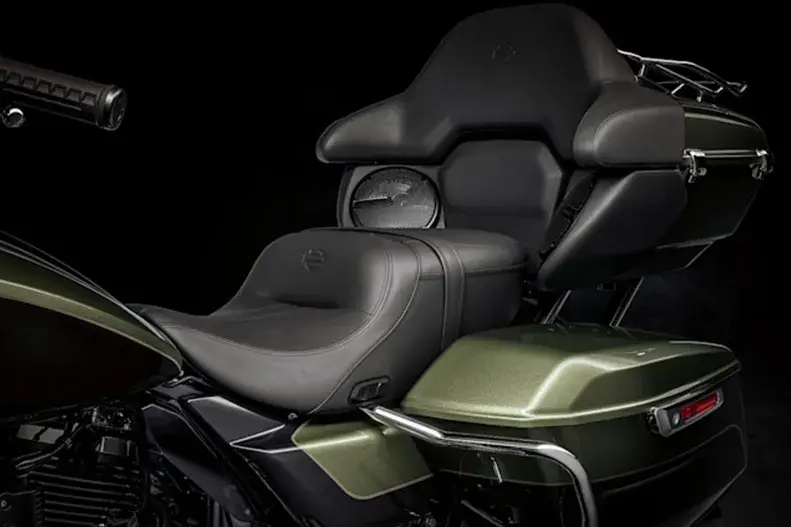

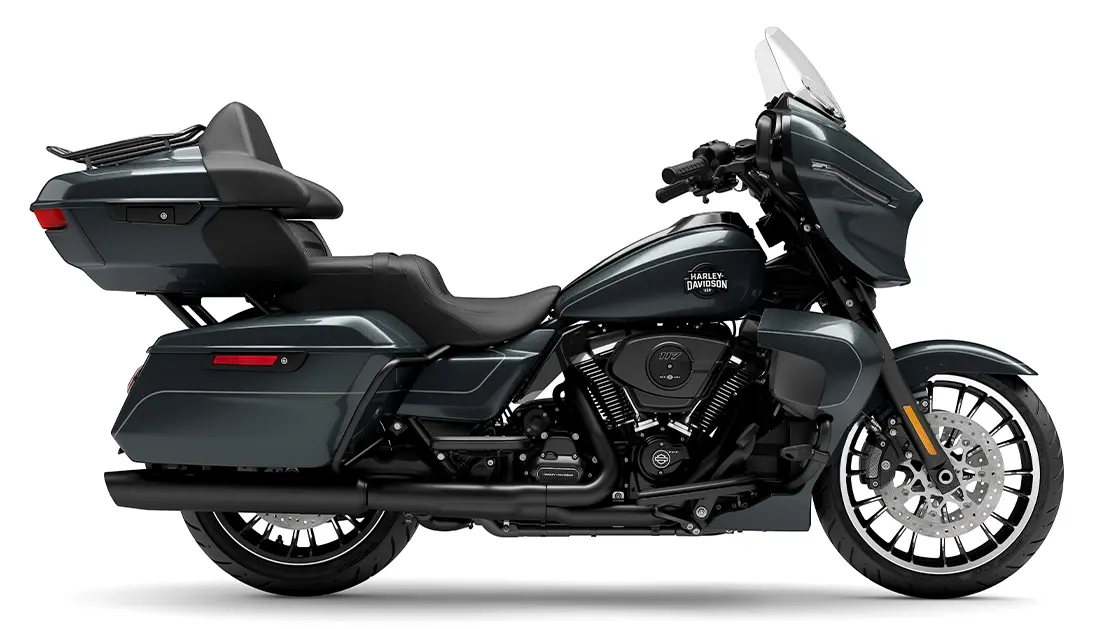

Every line, feature, and finish on the 2026 Street Glide Limited is built to make every mile feel easier than the one before it. From the Milwaukee-Eight® VVT 117 motor to the all-new Grand Tour-Pak®, heated seat and grips, and premium Rockford Fosgate® audio, it’s a touring experience built to overdeliver at every level. This is long-haul luxury the only way Harley-Davidson knows how.
Disclaimer
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Specifications
Length
2425 mm mm
Seat height, unladen
740 mm mm
Rake
26
Trail
170 mm
Wheelbase
1625 mm mm
Tyres, front specifications
130/60B19 M/C 61H
Tyres, rear specifications
180/55B18 M/C 80H
Fuel capacity
22.7 l
Oil capacity
4.7 l
Weight, as shipped
388 kg kg
Weight, in running order
405.06 kg kg
Luggage capacity – Volume
5.05 cu ft (0.143 m3)
Engine
Milwaukee-Eight®VVT 117
Bore
103.5 mm mm
Stroke
114.3 mm mm
Displacement
1923 cm³ cm³
Compression ratio
10.3:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-1-2 dual exhaust with tapered mufflers
Primary drive
Belt, 34/46 ratio
Gear Ratios (overall) 1st
9.593
Gear Ratios (overall) 2nd
6.65
Gear Ratios (overall) 3rd
4.938
Gear Ratios (overall) 4th
4
Gear Ratios (overall) 5th
3.407
Gear Ratios (overall) 6th
2.875
Engine torque testing method
J1349
Engine torque
177 Nm Nm
Engine Torque (rpm)
3,250
Horsepower
106 HP / 79 kW @ 4600 rpm
Lean angle, right (deg.)
32
Lean angle, left (deg.)
32
Fuel economy testing method
Estimated City/Hwy
Fuel economy
45 mpg (5.1 l/100 km)
Wheels, front type
Cast Aluminum
Wheels, rear type
Cast Aluminum
Brakes, caliper type
1.3 in., 4-piston fixed dual axially mounted front, and single axially mounted rear
Front fork
1.9 in. Dual Bending Valve
Rear shocks
3 in. Dual adjustable emulsions suspension with remote preload adjustment on the left shock, and threaded preload on the right shock
Brakes, Type
Dual floating rotors (front), fixed rotor (rear)
Lights (as per country regulation), Indicator Lamps
LED headlamp, tail/stop, front signal lights and rear turn signals
Gauges
Digital gauges integrated within the display

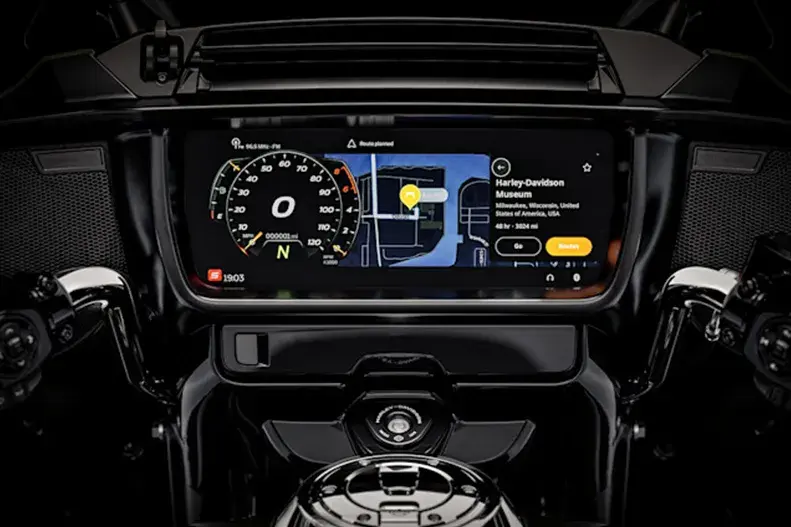

Infotainment system
Skyline™ OS
Type
Full Color TFT
Watts per channel
50
Speakers
4
Speaker size
Two 6.5 in. fairing speakers plus two 6.5 in. Tour-pak speakers
AM
Standard
FM
Standard
SD Card, Flash Drive and MP3 - via USB Connection
Supported
Languages
Arabic, Bahasa (indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/French), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese
Hands-free Mobile Phone - via Bluetooth
Standard
Screen size
12.3 in.
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner / Media / Navigation
Danish, English (UK/USA default), French (Canada/France), German, Italian, Spanish (Mexico/Spain), Swedish
Text-to-Speech (TTS) Languages
Same as Languages list
Vehicle information screen
Standard
USB
USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
Bluetooth
Phone/Media Player, Headset
