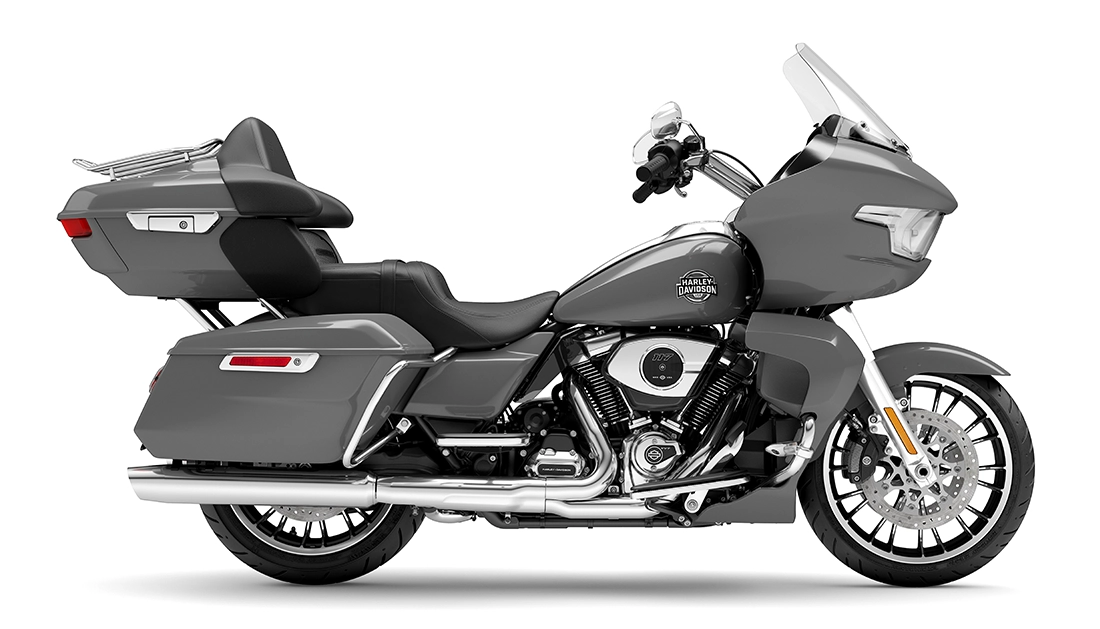

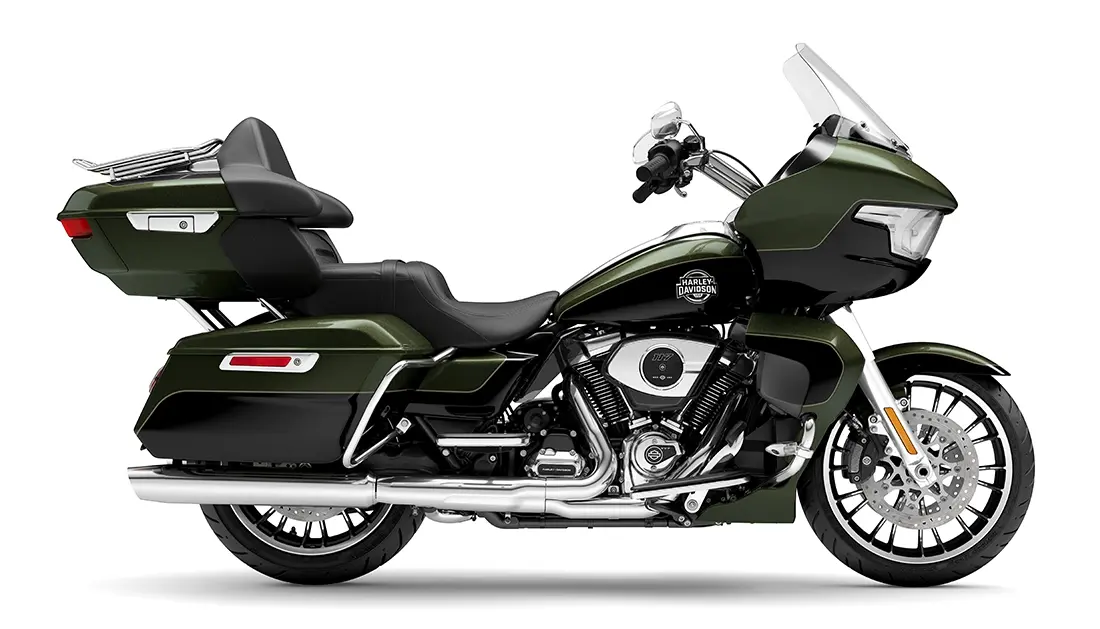

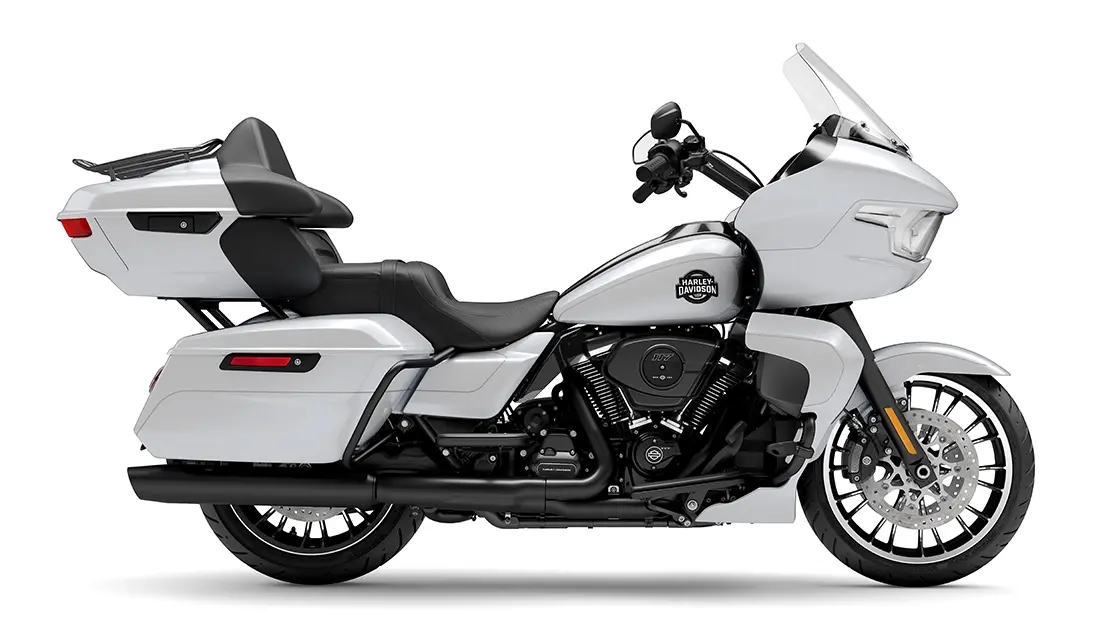

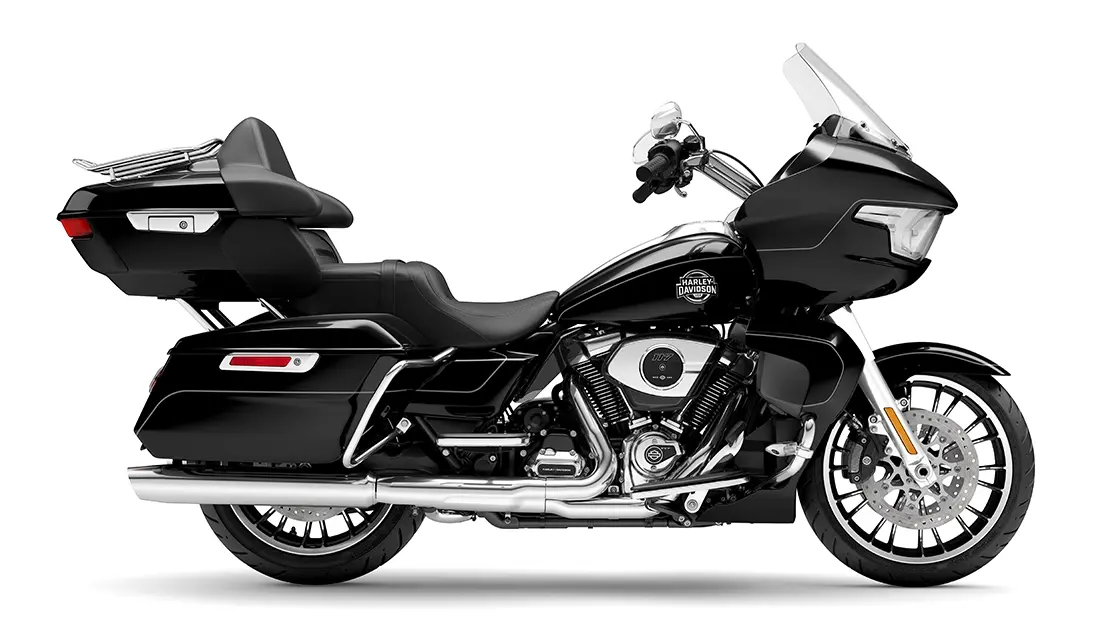

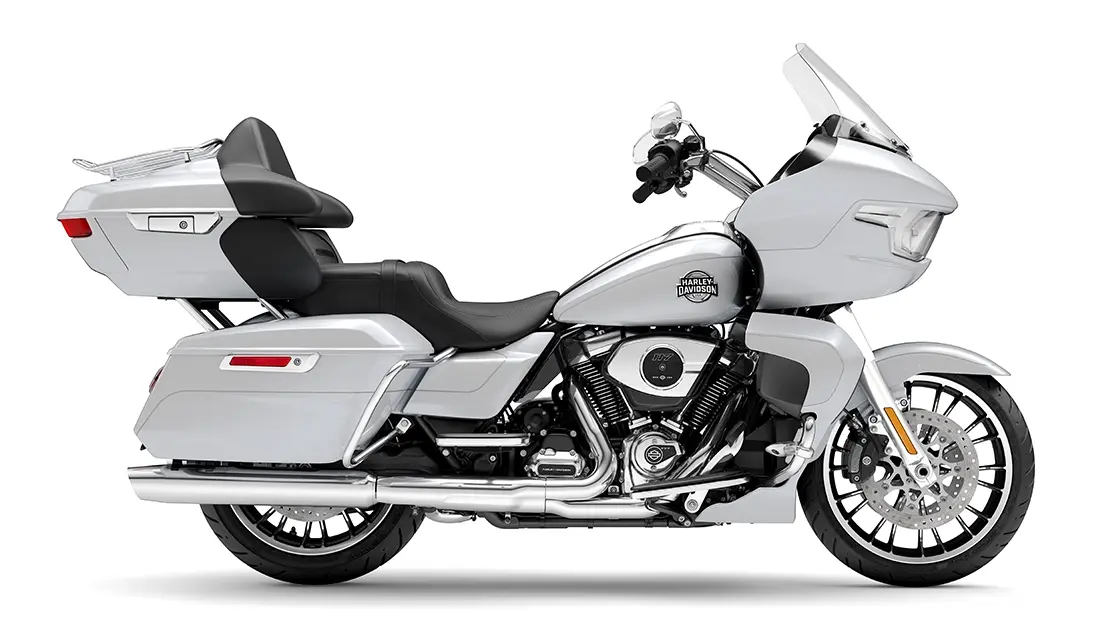

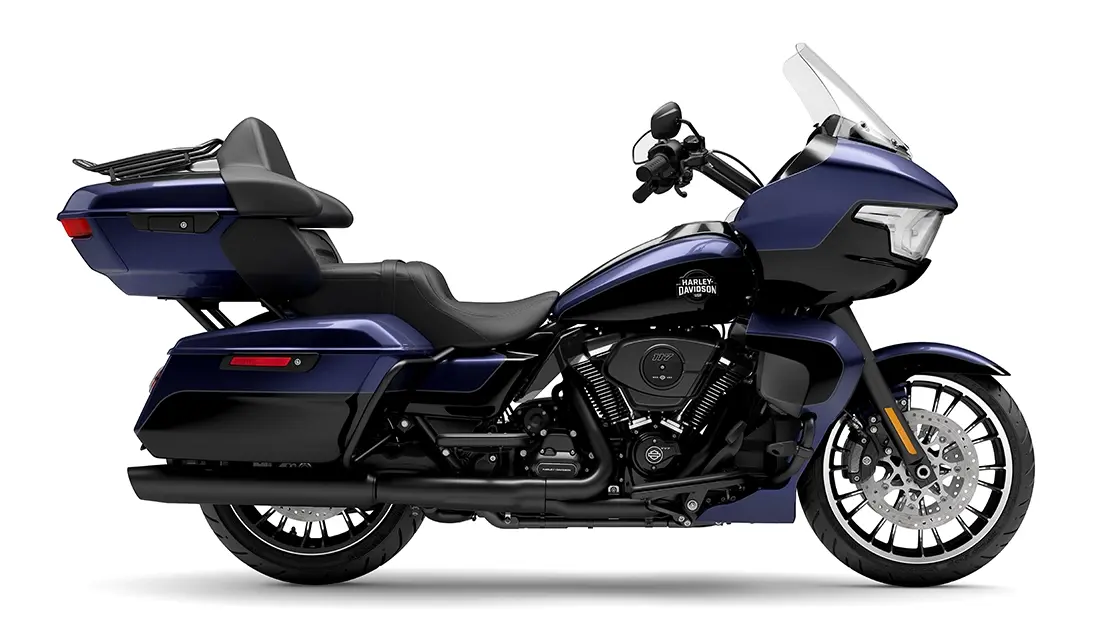

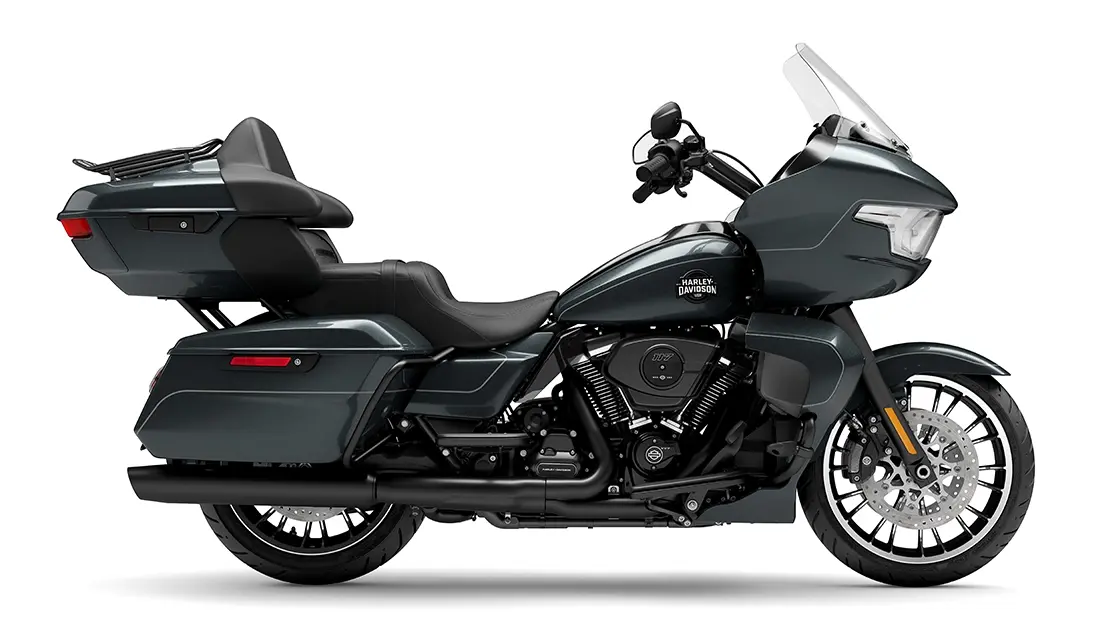

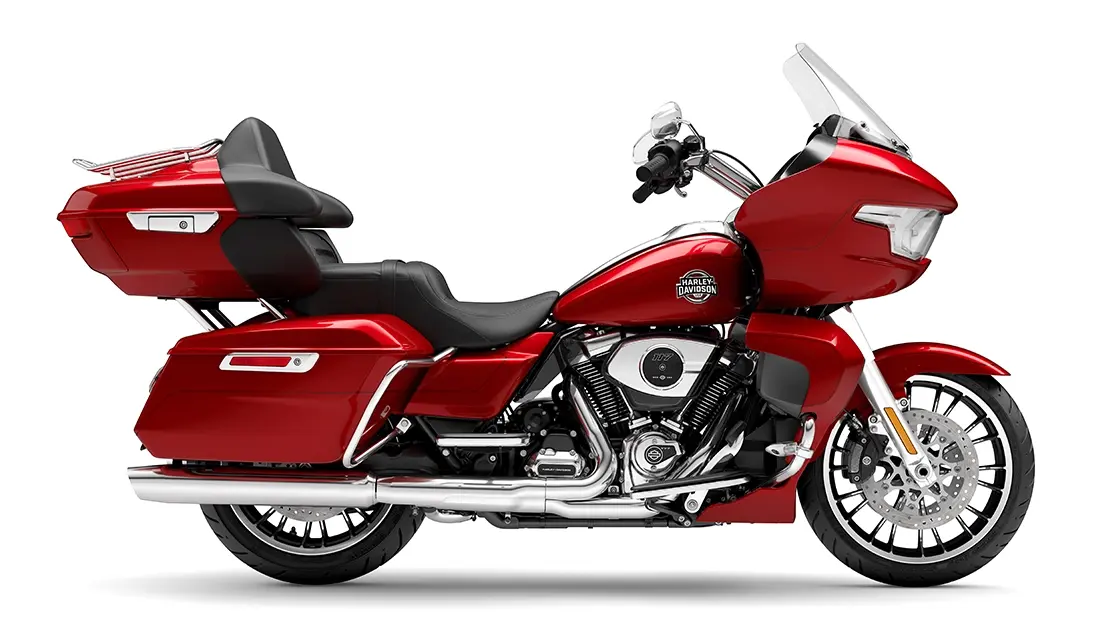

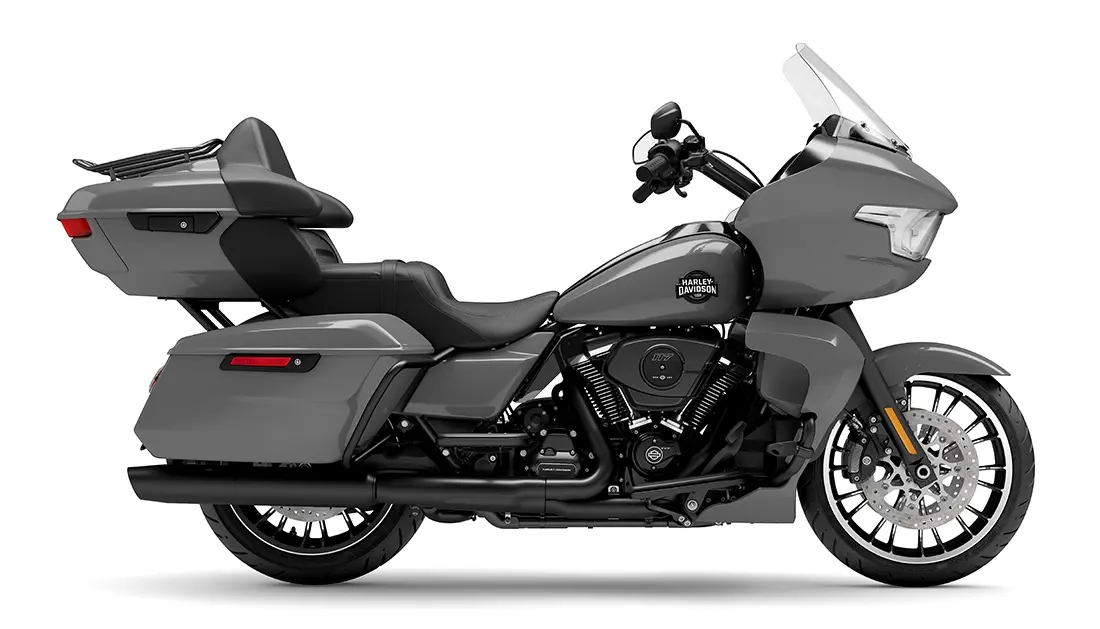

Road Glide® Limited
A fully loaded Grand Touring machine with 114 cubic inches of power and new premium finishes. Enjoy the ride to the fullest.
Disclaimer
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Specifications
Length
2595 mm
Seat height, laden
690 mm
Seat height, unladen
735 mm
Ground clearance
130 mm
Rake
26
Trail
170 mm
Wheelbase
1625 mm
Tyres, front specifications
BW 130/70B18 63H
Tyres, rear specifications
BW 180/55B18 80H
Fuel capacity
22.7 l
Oil capacity
4.7
Weight, as shipped
407 kg
Weight, in running order
422.75 kg

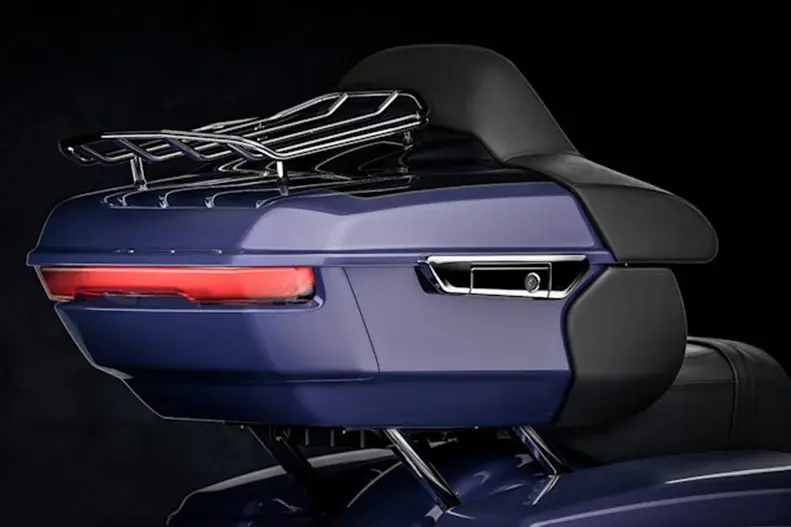

Luggage capacity – Volume
4.7 cu ft (0.132 m3)
Engine
Twin-Cooled™ Milwaukee-Eight® 114
Bore
102 mm
Stroke
114 mm
Displacement
1868 cm³
Compression ratio
10.5:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2:1:2 dual exhaust with 4 in. tapered mufflers
Primary drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.593
Gear Ratios (overall) 2nd
6.65
Gear Ratios (overall) 3rd
4.938
Gear Ratios (overall) 4th
4
Gear Ratios (overall) 5th
3.407
Gear Ratios (overall) 6th
2.875
Engine torque testing method
EC 134/2014
Engine torque
166 Nm
Engine Torque (rpm)
2750
Lean angle, right (deg.)
32
Lean angle, left (deg.)
32
Fuel economy testing method
EU 134/2014
Fuel economy
5.5 l/100 km
CO2 emissions testing method
EU 134/2014
CO2 emissions
146 g/km CO2
Wheels, front type
Slicer II cast aluminum with clear coat
Wheels, rear type
Slicer II cast aluminum with clear coat
Wheels, optional style type
Gloss Black Slicer II
Brakes, caliper type
32 mm, 4-piston fixed front and rear
Lights (as per country regulation), Indicator Lamps
High beam, neutral, running lights, turn signals, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABS.

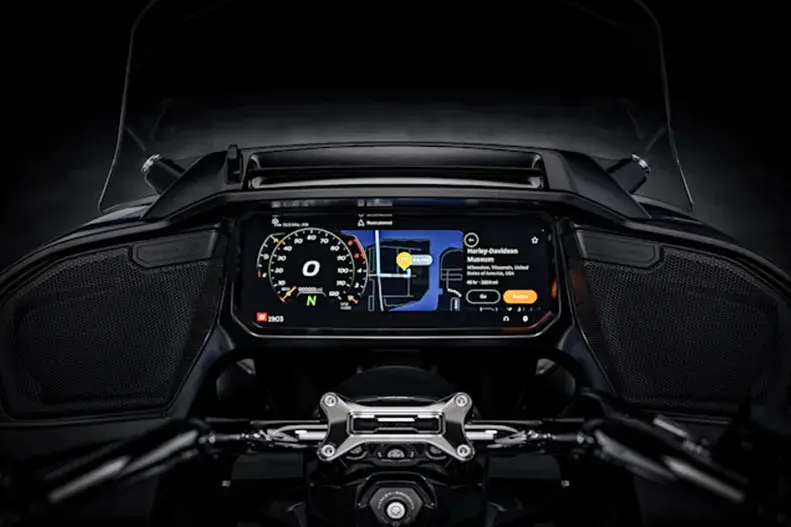

Gauges
Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
Infotainment system
Boom!™ Box GTS
Type
Full Color TFT
Watts per channel
25
Speakers
4
Speaker size
5.25 inch standard
Headset specifications (if equipped)
16-64 ohms
FM
Standard
MW
Standard
LW
Standard
SD Card, Flash Drive and MP3 - via USB Connection
Supported
SiriusXM Presets
20 - P&A Upgrade (USA & Canada only)
Languages
English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
Hands-free Mobile Phone - via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone dependant
Voice Recognition Languages: Tuner / Media / Navigation
Phone dependant
Text-to-Speech (TTS) Languages
Phone dependant
Rider/Passenger Intercom
Standard (Passenger Headset Sold Separately)
Vehicle information screen
Standard
USB
USB/MTP/iPod/iPhone
Bluetooth
Phone/Media Supported
