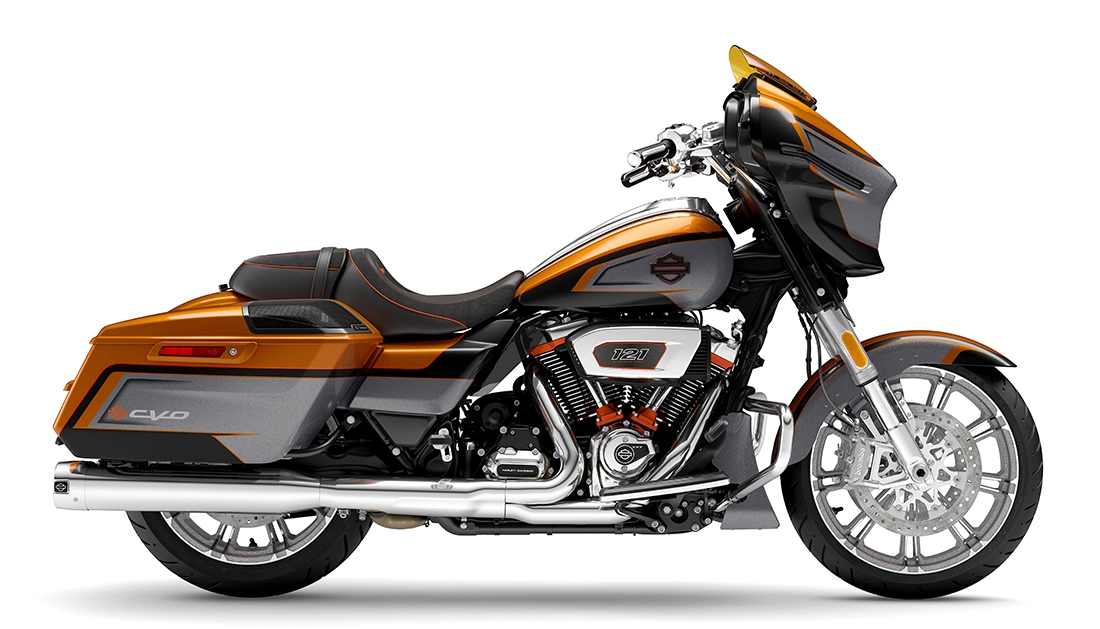

CVO™ Street Glide®
An icon, reimagined for the road ahead.
Disclaimer
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Specifications
Length
2410 mm
Overall Width
975 mm
Overall Height
1350 mm
Seat height, laden
679 mm
Seat height, unladen
711 mm
Ground clearance
140 mm
Rake
26
Trail
170 mm
Wheelbase
1625 mm
Tyres, front specifications
130/660B19 M/C 61H
Tyres, rear specifications
180/55B18 M/C 80H
Fuel capacity
22.7 L l
Oil capacity
4.7 L

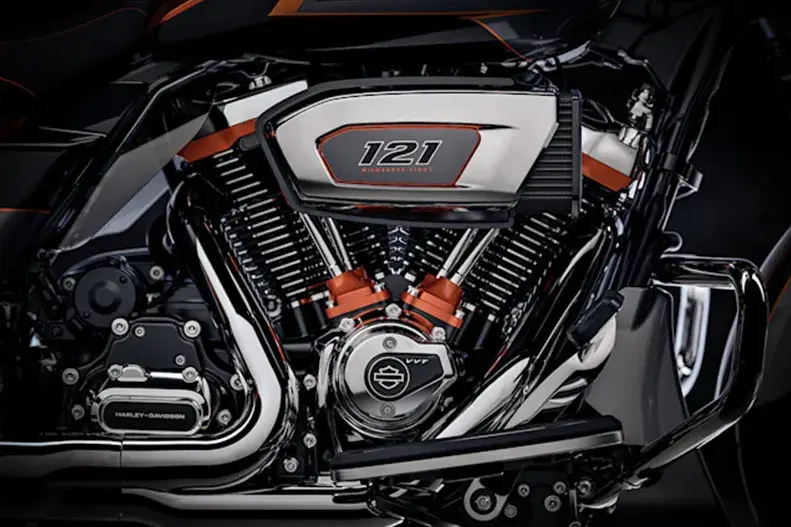

Engine
Milwaukee-Eight® VVT 121
Bore
103.5 mm
Stroke
117.5 mm
Displacement
1977 cm³ cm³
Compression ratio
11.4:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)
Air cleaner
Synthetic Felt, Washable
Exhaust
2-1-2 dual Exhaust
Lubrication System
Pressurized, dry-sump
Primary drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.593
Gear Ratios (overall) 2nd
6.65
Gear Ratios (overall) 3rd
4.938
Gear Ratios (overall) 4th
4
Gear Ratios (overall) 5th
3.407
Gear Ratios (overall) 6th
2.875
Final Drive
Belt, 32/68 ratio
Clutch
Mechanically actuated 10 plate, wet Assist & Slip
Transmission
6=Speed Cruise Drive®
Engine torque testing method
J1349
Engine torque
189 Nm
Engine Torque (rpm)
3,000
Horsepower
115 HP / 86 kW @ 4500 rpm
Lean angle, right (deg.)
32
Lean angle, left (deg.)
32
Fuel economy testing method
Estimated City/Hwy
Fuel economy
45 mpg (5.1 L/100 km)
Wheels, front type
Combo Cast Laced
Wheels, rear type
Combo Cast Laced
Brakes, caliper type
32 mm, 4-piston fixed dual radially mounted front, and single axially mounted rear
Front fork
47 mm Inverted 1x1 Front Forks

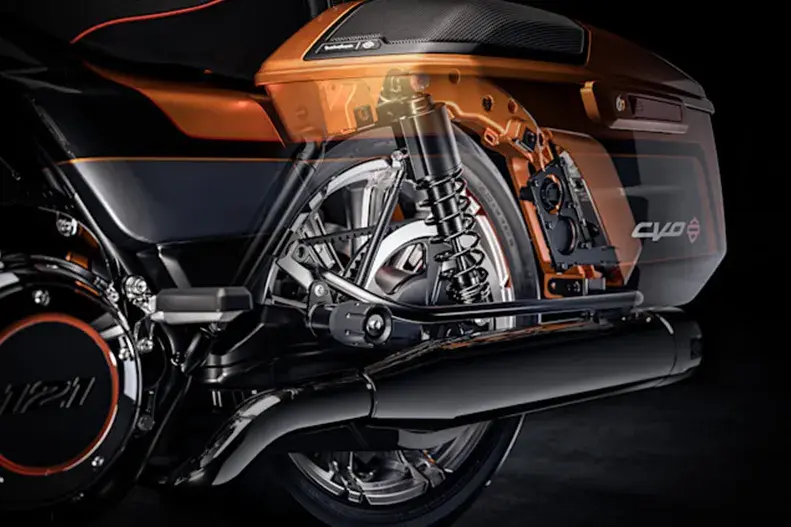

Rear shocks
Dual adjustable emulsions suspension with remote preload adjustment on the left shock, and threaded preload on the right shock
Brakes, Type
Dual Floating rotors (Front), Fixed Rotor (rear)
Lights (as per country regulation), Indicator Lamps
LED
Gauges
Digital gauges integrated within the display
Battery
Sealed, maintenance-free, 12v, 38-amp/hour, 405 cca (per Battery Council International Rating)
Charging
Three-phase, 58-amp system (754W max power @ 13V)
Starting
1.6 kW electric with solenoid shift starter motor engagement
Electric Power Outlet
15 Watt USB-C electric power accessory port in media storage box
GPS System
Yes, Imbedded navigation system with real-time traffic and weather via WI-FI Hotspot
Infotainment system
Skyline™ OS
Type
Full Color TFT
Watts per channel
125
Speakers
4

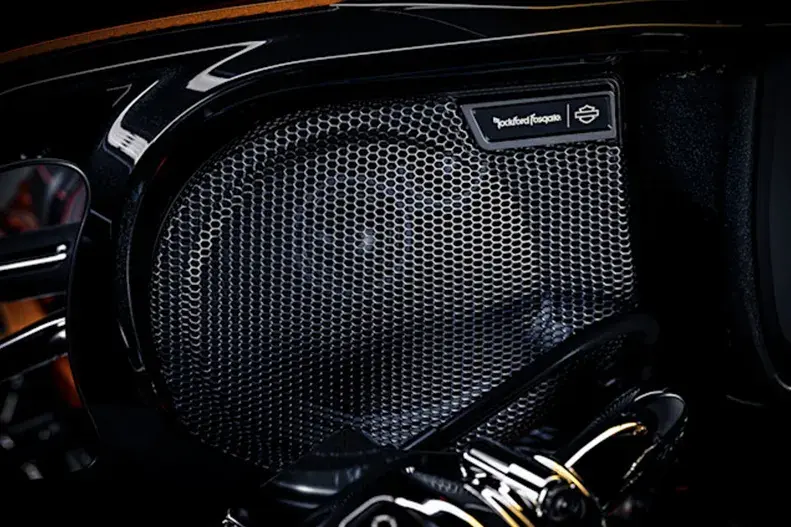

Speaker size
Two 6.5 in. fairing speakers, and two 5x7 in. saddlebag speakers
Headset specifications (if equipped)
Harley-Davidson Packtalk Edge wireless Bluetooth® headset
AM
Standard
FM
Standard
Weather Band (WB)
Supported
Languages
Arabic, Bahasa (indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/French), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese
Hands-free Mobile Phone - via Bluetooth
Standard
Screen size
12.3 in. (312 mm)
