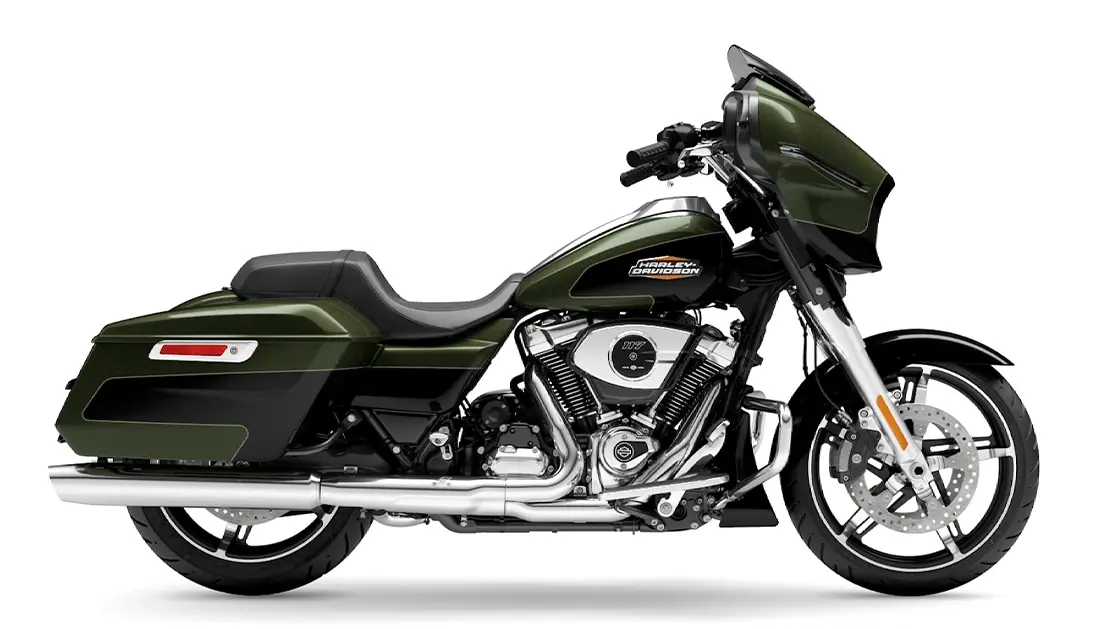

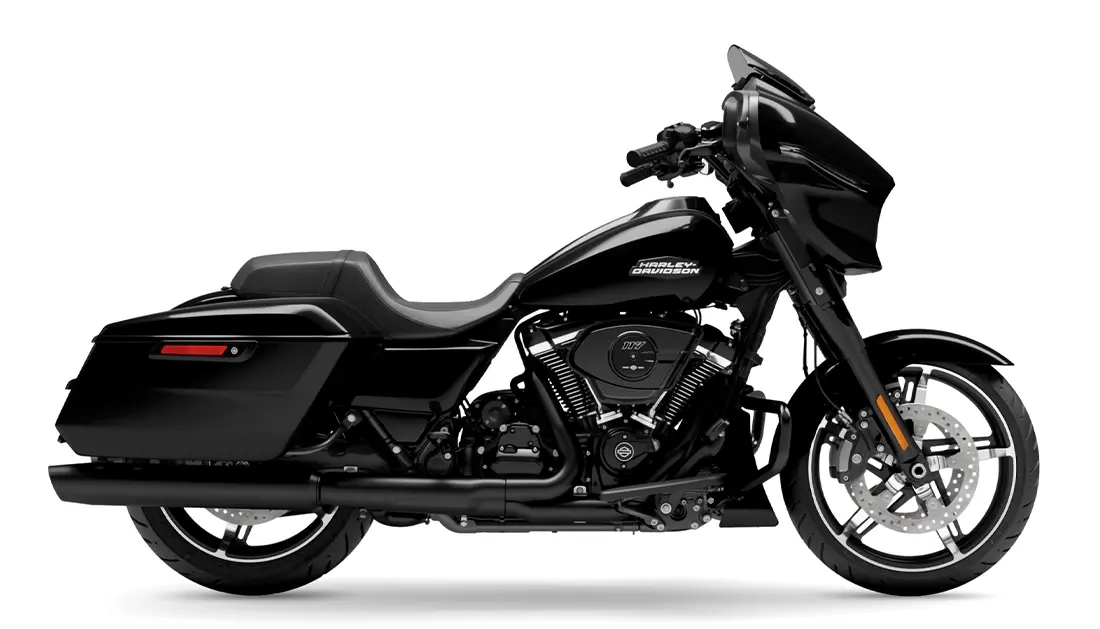

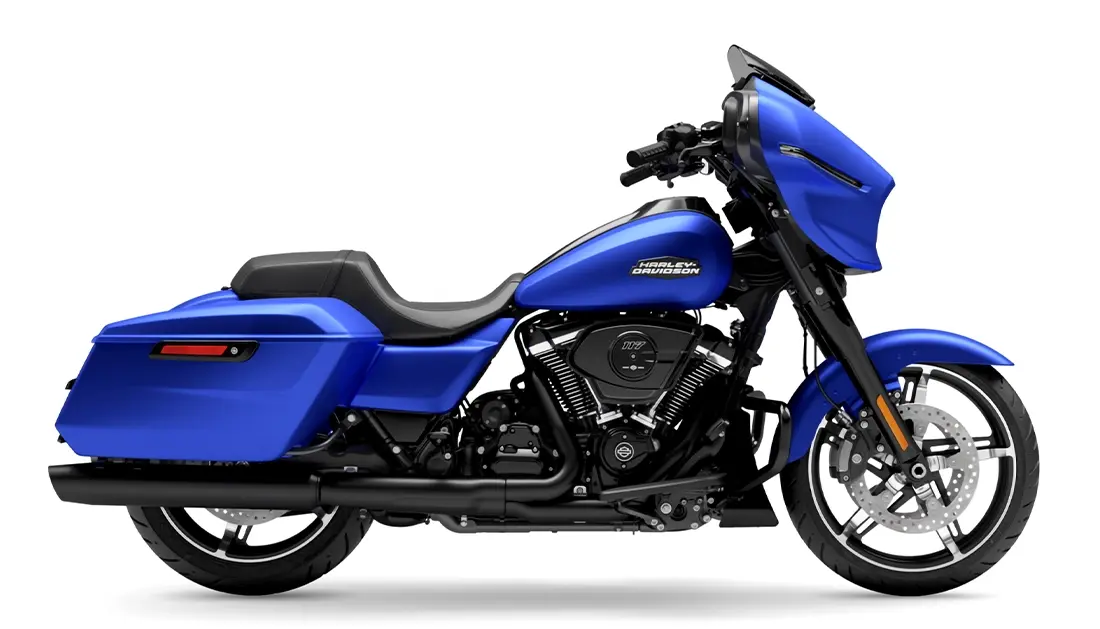

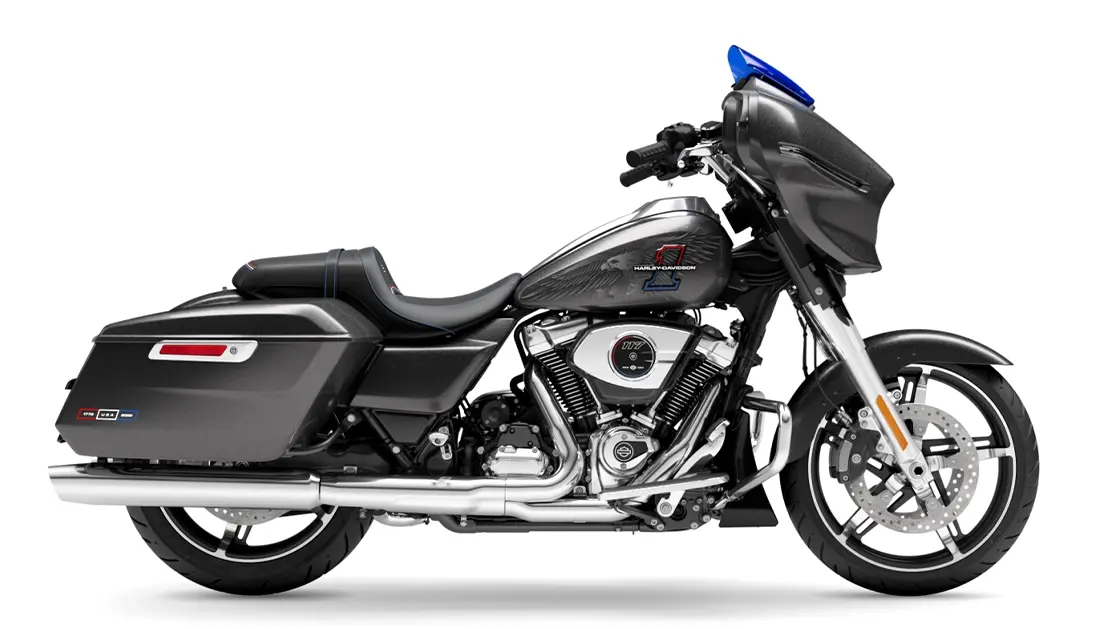

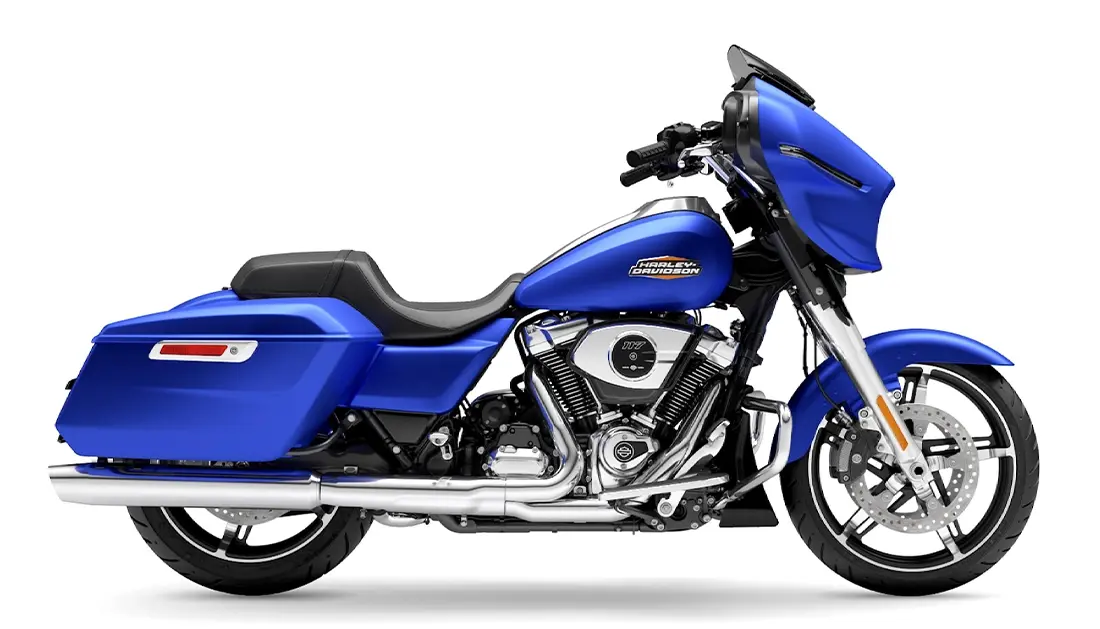

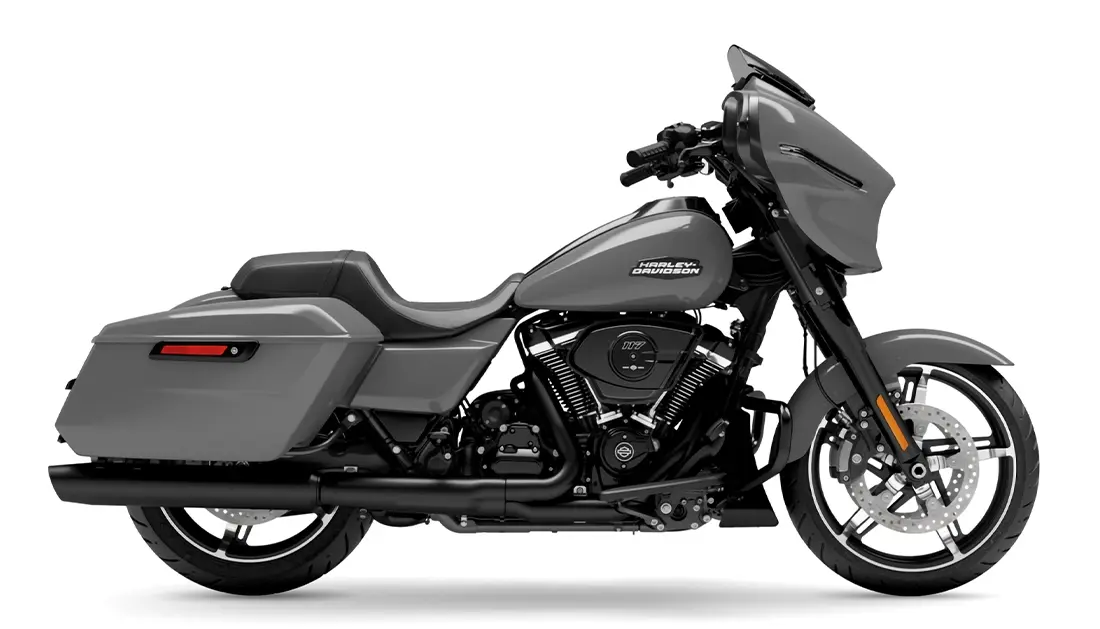

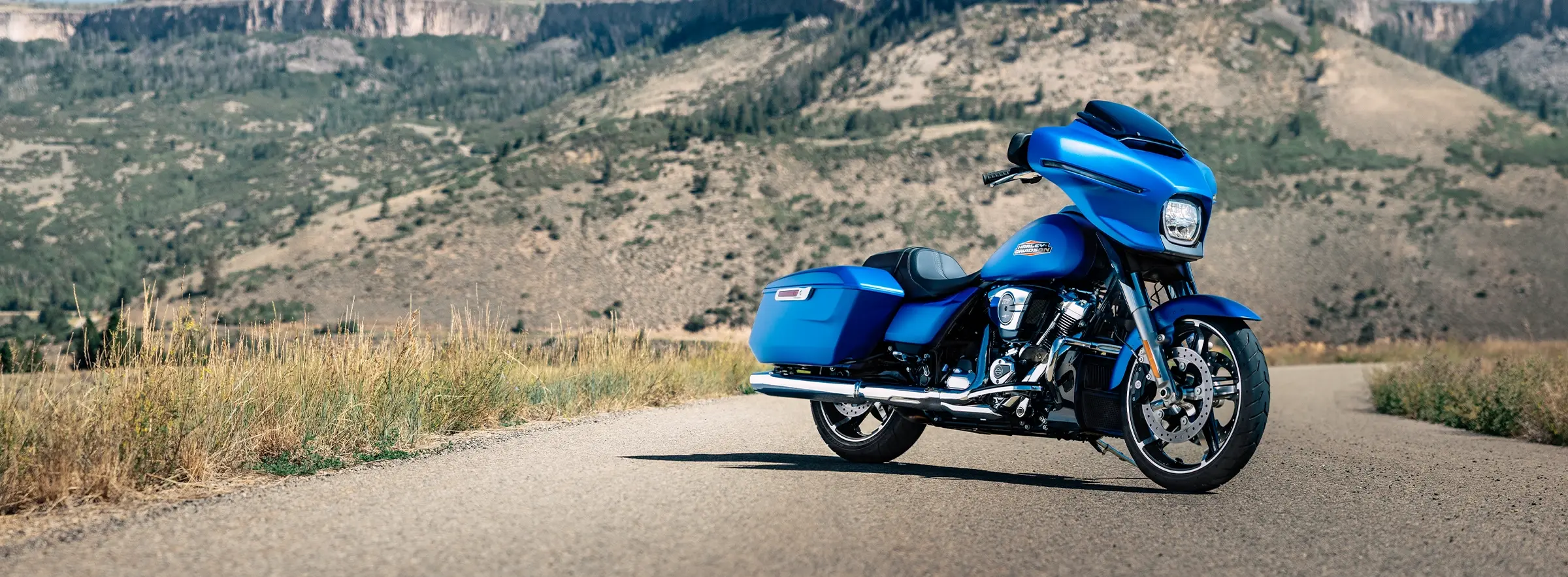

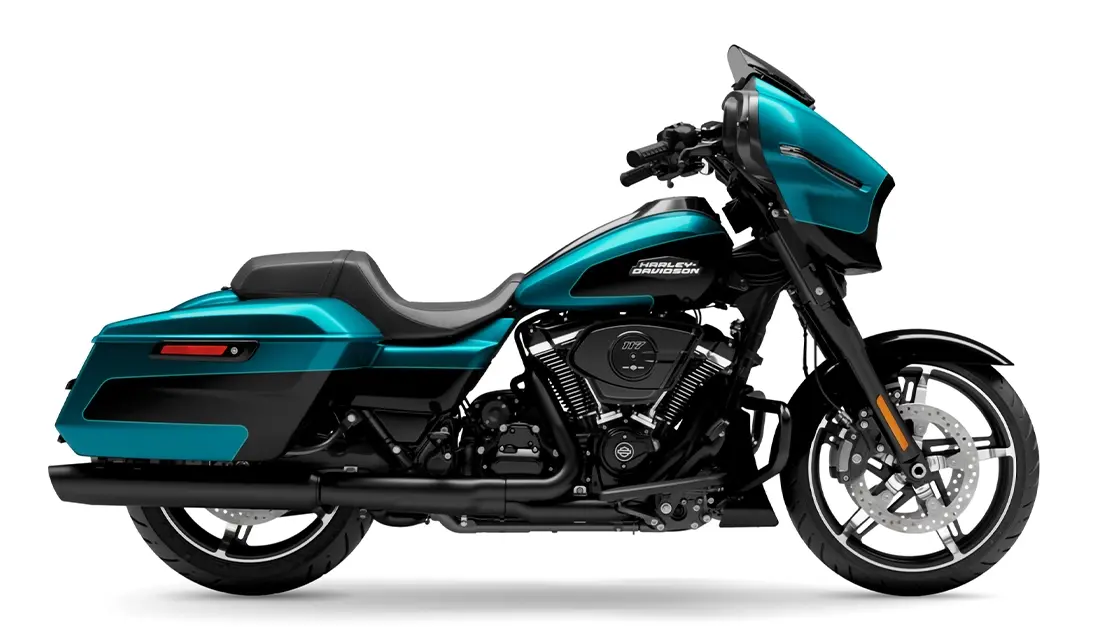

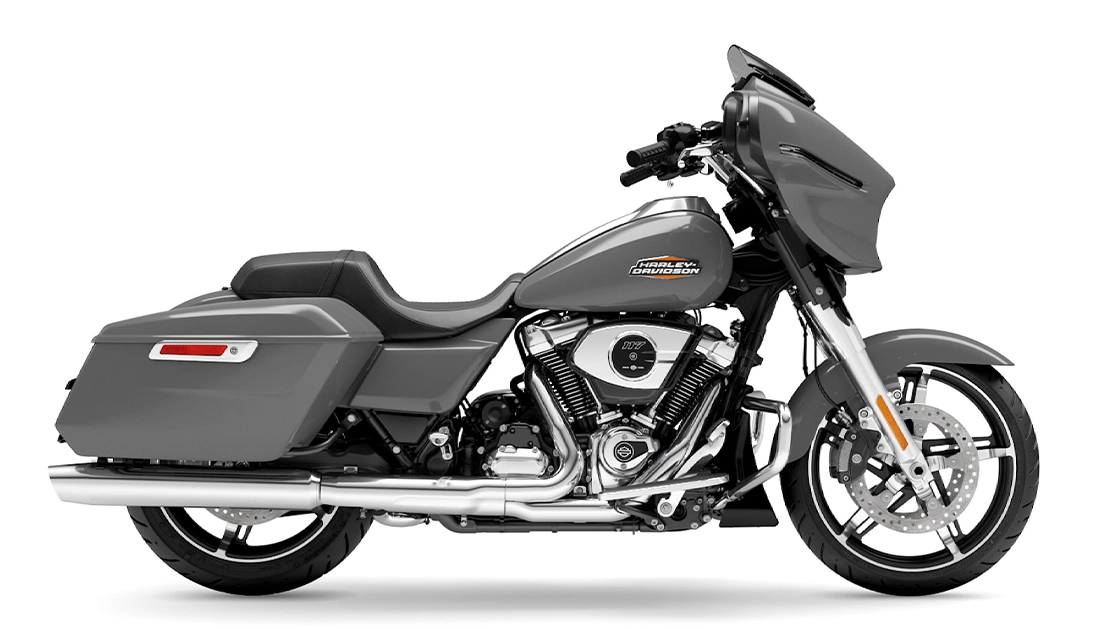

Street Glide®

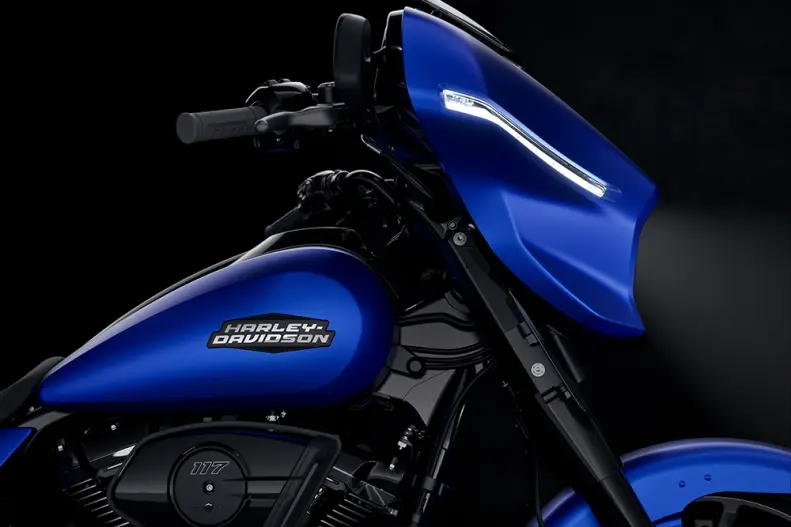

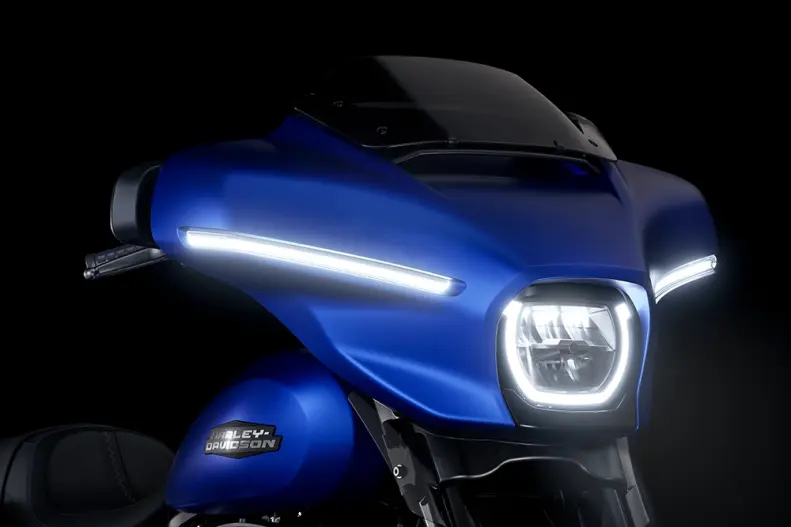

The iconic batwing fairing takes on new life with a sculpted silhouette, fully integrated LED lighting, and a split-stream vent opening. Using computational fluid dynamics (CFD), the Street Glide fairing has been designed to optimize aerodynamic efficiency and enhance rider comfort.

Disclaimer

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Specifications

Length
2410 mm
Seat height, laden
664 mm
Seat height, unladen
715 mm
Rake
26
Trail
170 mm
Wheelbase
1625 mm
Tyres, front specifications
130/60B19 61H
Tyres, rear specifications
BW 180/55B18 80H
Fuel capacity
22.7 l
Oil capacity
4.9
Weight, as shipped
351 kg
Weight, in running order
367.86 kg
Luggage capacity – Volume
2.3 cu ft (0.064 m³)

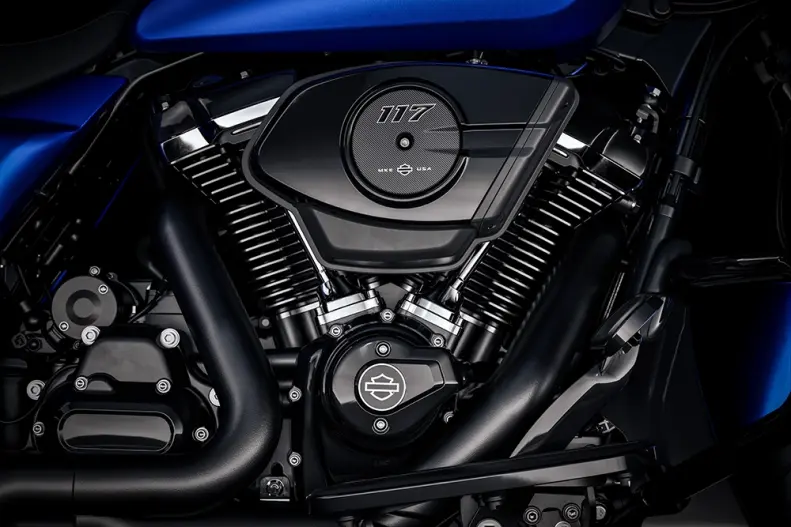

Engine
Milwaukee-Eight®117
Bore
103.5 mm
Stroke
114.3 mm
Displacement
1923 cm³ cm³
Compression ratio
10.3:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
Chrome, 2-1-2 dual exhaust with tapered mufflers
Primary drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.593
Gear Ratios (overall) 2nd
6.65
Gear Ratios (overall) 3rd
4.938
Gear Ratios (overall) 4th
4
Gear Ratios (overall) 5th
3.407
Gear Ratios (overall) 6th
2.875
Engine torque testing method
J1349
Engine torque
176 Nm Nm
Engine Torque (rpm)
3,250
Lean angle, right (deg.)
31
Lean angle, left (deg.)
29
Fuel economy testing method
Estimated City/Hwy
Fuel economy
44 mpg (5.3 l/100 km)

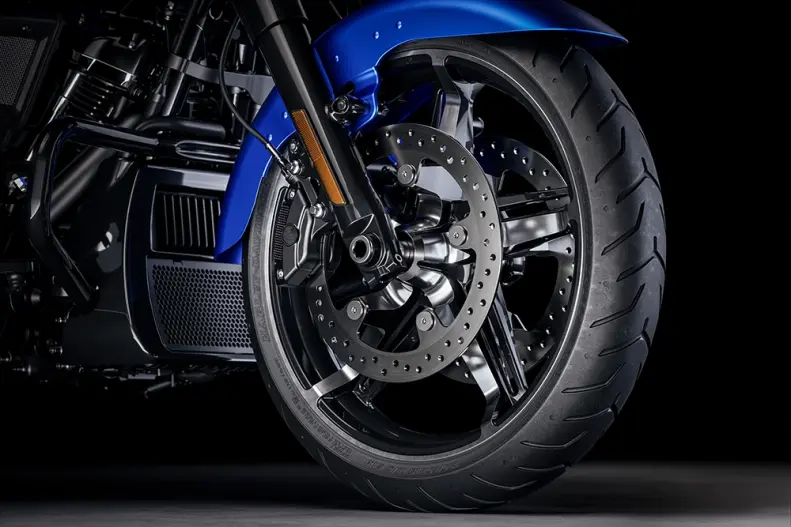

Wheels, front type
Cast Aluminum
Wheels, rear type
Cast Aluminum
Brakes, caliper type
1.3 in., 4-piston fixed dual axially mounted front, and single axially mounted rear
Front fork
49mm Dual Bending Valve
Rear shocks
3 in. Dual Outboard Emulsion with Preload Adjustability
Brakes, Type
Dual floating rotors (front), fixed rotor (rear)
Lights (as per country regulation), Indicator Lamps
LED headlamp, tail/stop, front signal lights and rear turn signals

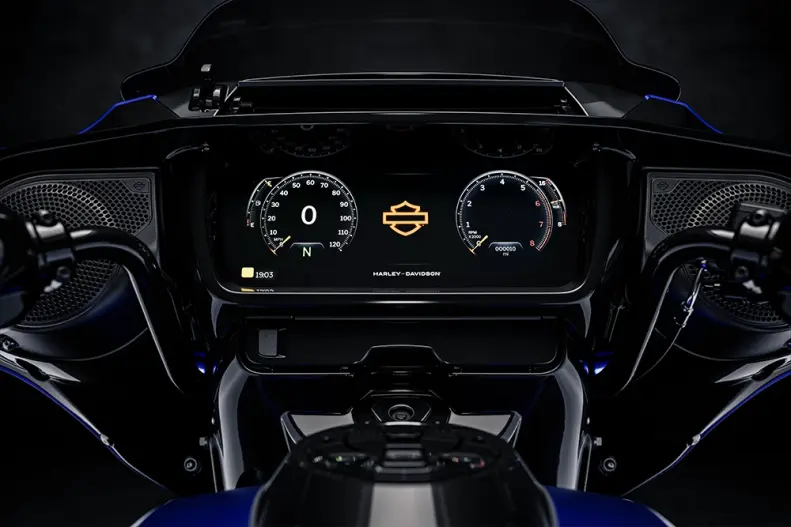

Gauges
Digital gauges integrated within the display
Infotainment system
Skyline™ OS
Type
Full Color TFT
Watts per channel
50
Speakers
2
Speaker size
Two 6.5 in. fairing speakers, and two 5x7 in. saddlebag speakers
Headset specifications (if equipped)
Harley-Davidson Packtalk Edge wireless Bluetooth® headset
AM
Standard
FM
Standard
SD Card, Flash Drive and MP3 - via USB Connection
Supported
Languages
Arabic, Bahasa (indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/French), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese
Hands-free Mobile Phone - via Bluetooth
Standard
Screen size
12.3 in.
