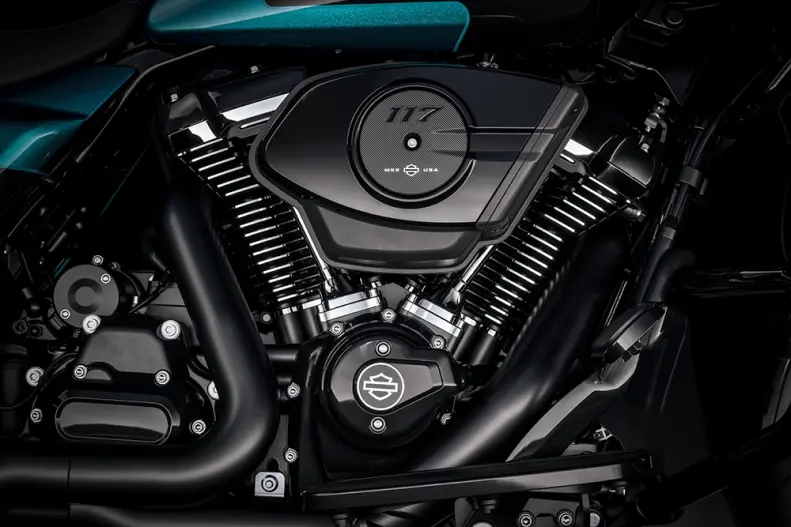

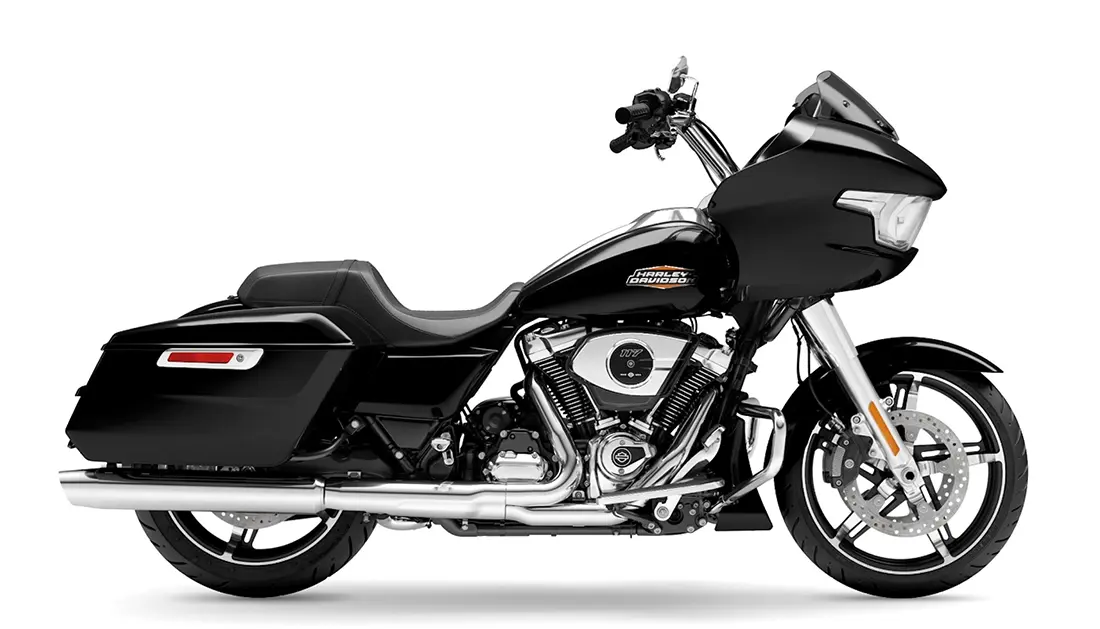

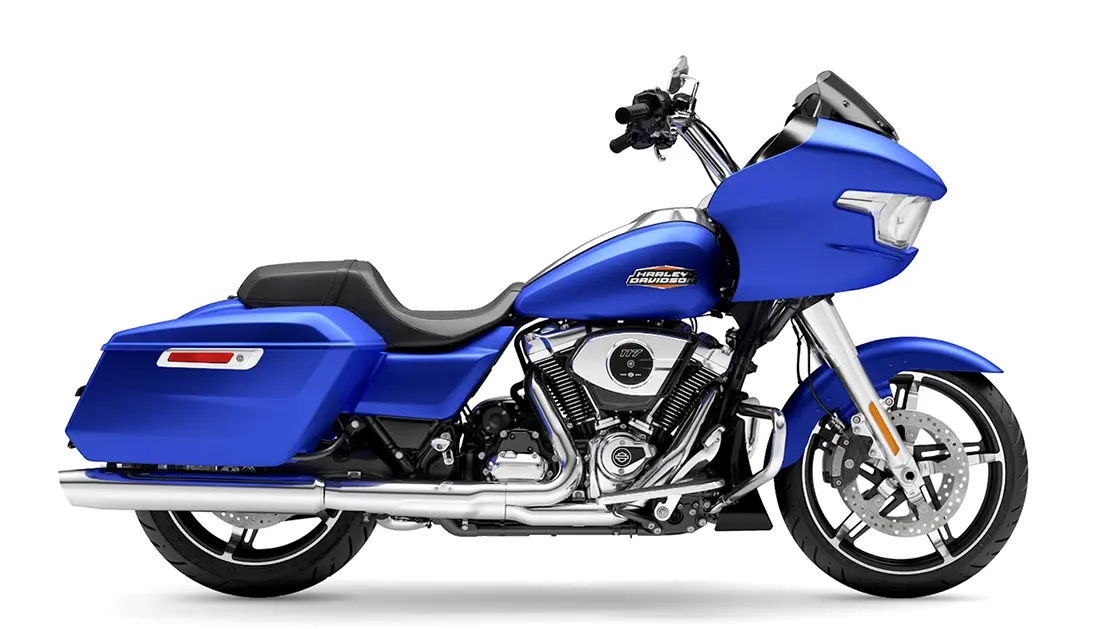

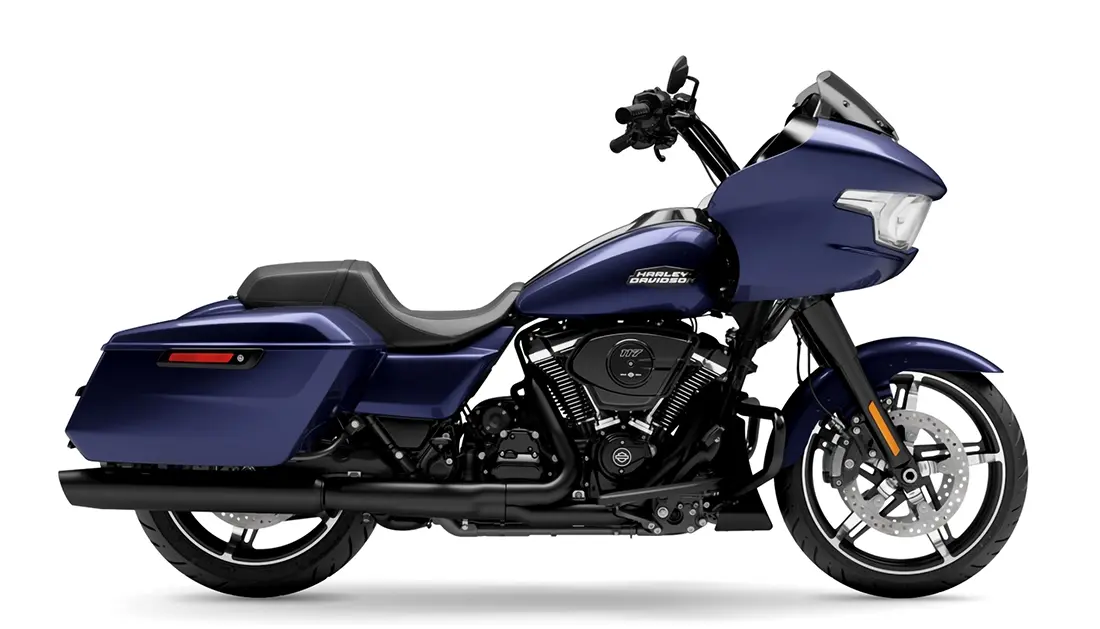

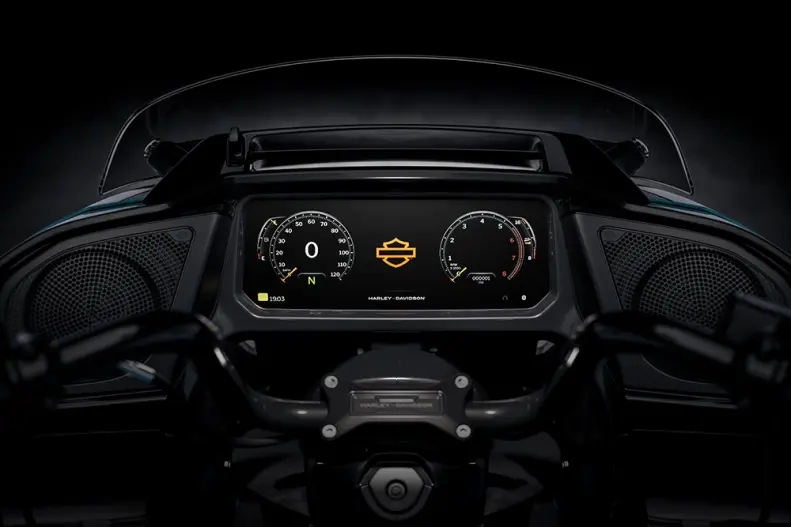

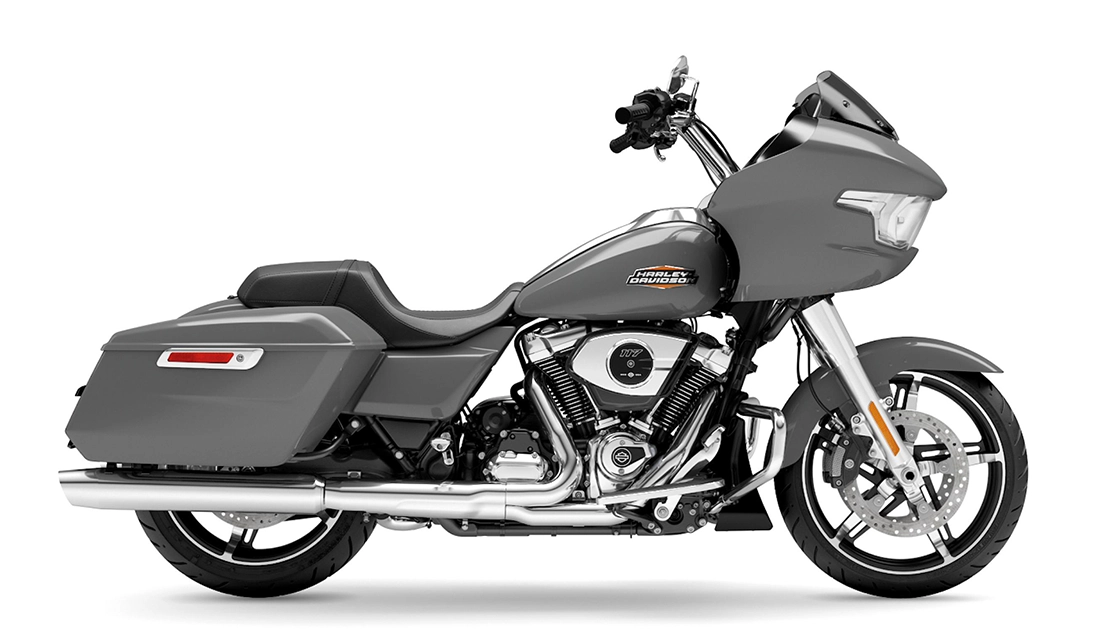

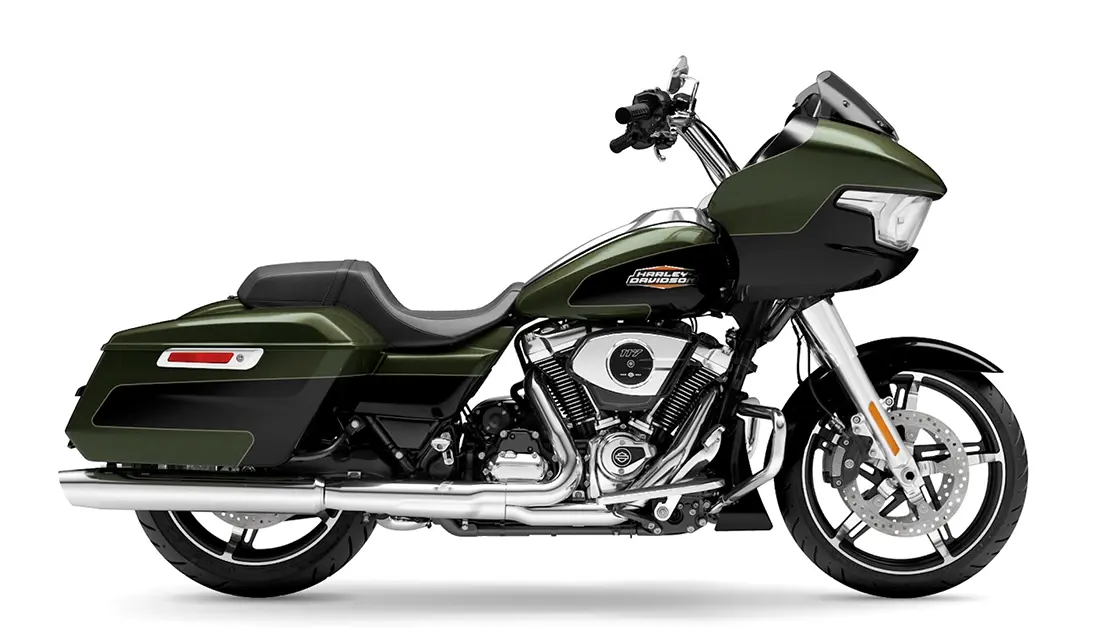

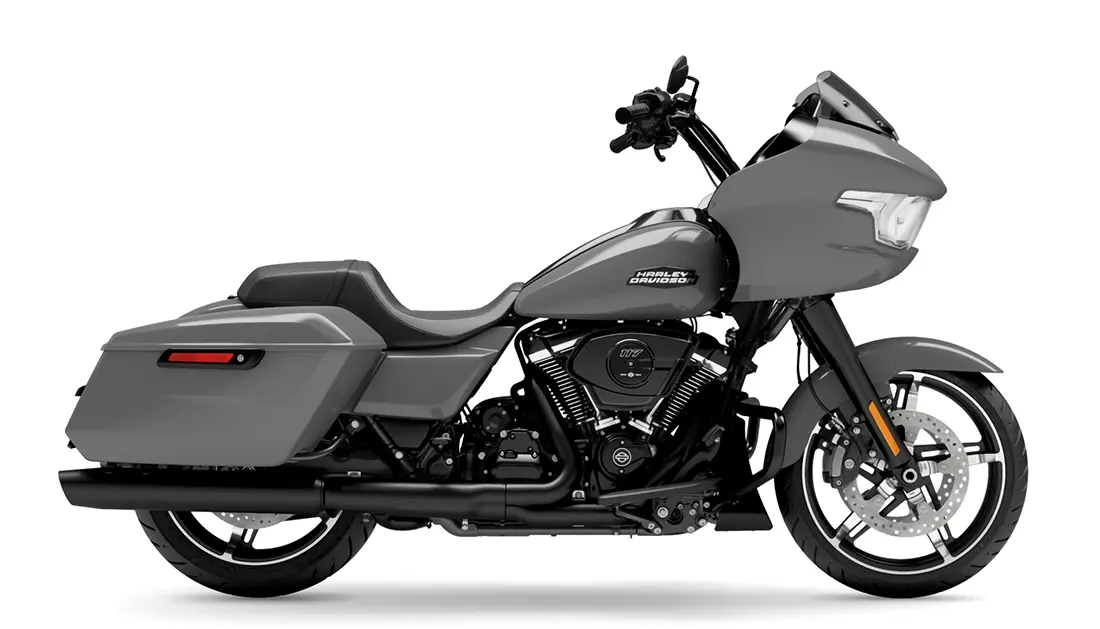

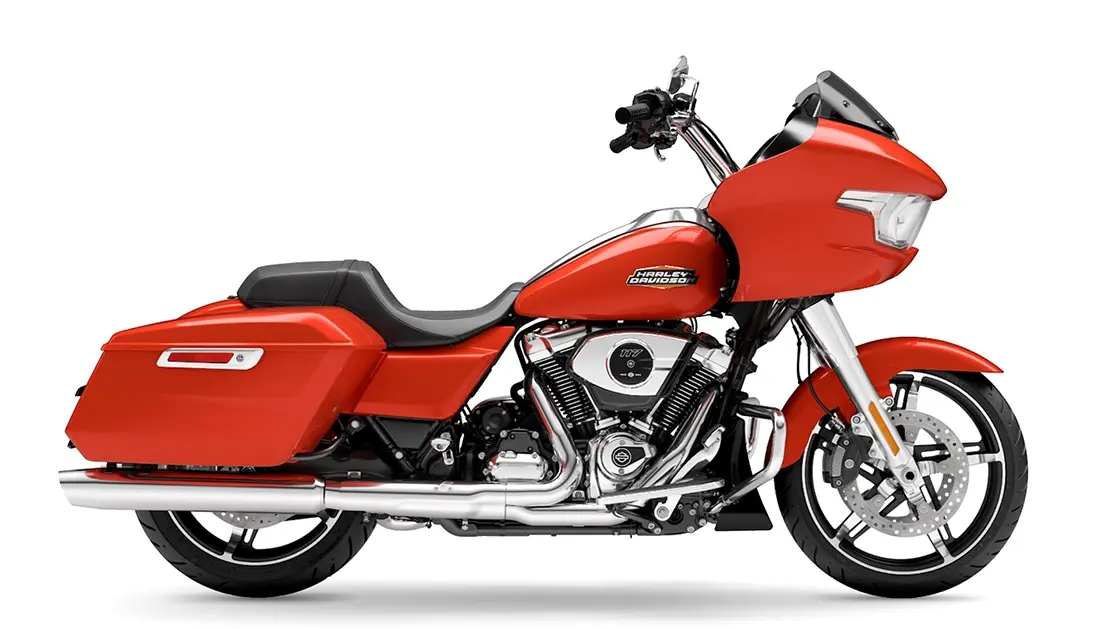

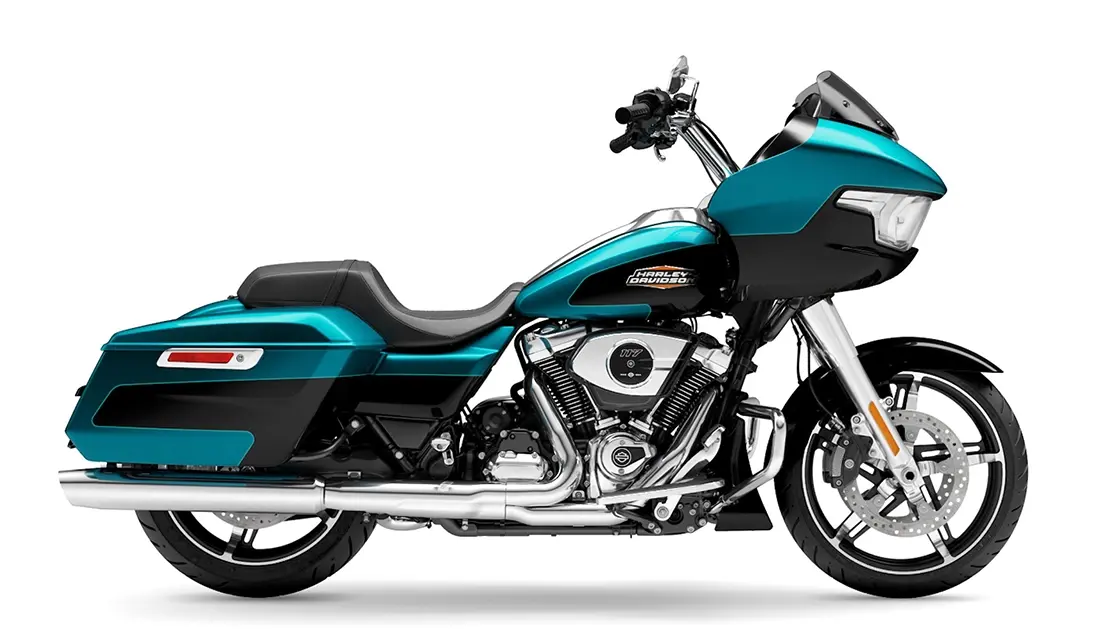

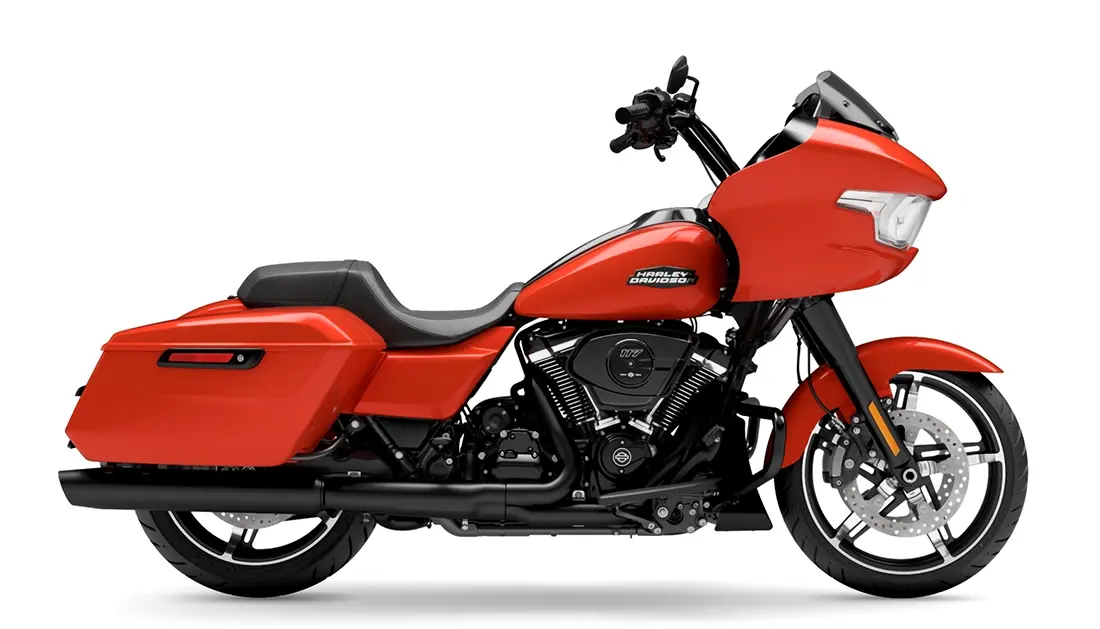

With a liquid-cooled Milwaukee-Eight® 117 motor, selectable ride modes, ride-tuned suspension and the Skyline™ OS 12.3” (312 mm) display guiding the way, the 2026 Road Glide turns every nowhere into exactly where you want to be. Because freedom isn’t where you’re going, it’s how you move.
Disclaimer
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Specifications
Length
2410 mm
Seat height, unladen
720 mm
Rake
26
Trail
173 mm
Wheelbase
1625 mm
Tyres, front specifications
130/60B19 M/C 61H
Tyres, rear specifications
180/55B18 M/C 80H
Fuel capacity
22.7 l l
Oil capacity
4.7 L
Weight, as shipped
364 kg kg
Weight, in running order
380.11 kg kg
Luggage capacity – Volume
2.42 cu ft (0.069 m³)
Tyre, Type
Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine
Milwaukee-Eight®117
Bore
103.5 mm
Stroke
114.3 mm
Displacement
1923 cm³ cm³
Compression ratio
10.3:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-1-2 dual exhaust with tapered mufflers
Primary drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.593
Gear Ratios (overall) 2nd
6.65
Gear Ratios (overall) 3rd
4.938
Gear Ratios (overall) 4th
4
Gear Ratios (overall) 5th
3.407
Gear Ratios (overall) 6th
2.875
Engine torque testing method
J1349
Engine torque
176 Nm Nm
Engine Torque (rpm)
3,250
Lean angle, right (deg.)
32
Lean angle, left (deg.)
32
Fuel economy testing method
Estimated City/Hwy
Fuel economy
44 mpg (5.3 l/100 km)
Wheels, front type
Cast Aluminum
Wheels, rear type
Cast Aluminum
Brakes, caliper type
1.3 in., 4-piston fixed dual axially mounted front, and single axially mounted rear
Front fork
49mm Dual Bending Valve
Rear shocks
3 in. Dual Outboard Emulsion with Preload Adjustability
Brakes, Type
Dual floating rotors (Front), Fixed rotor (rear)
Infotainment system
Skyline™ OS
Type
Full Color TFT
Watts per channel
50
Speakers
2
Speaker size
Two 5.25 in. fairing speakers
AM
Standard
FM
Standard
SD Card, Flash Drive and MP3 - via USB Connection
Supported
Languages
Arabic, Bahasa (indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/French), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese
Hands-free Mobile Phone - via Bluetooth
Standard
Screen size
12.3 in
Voice Recognition Languages: Phone functions only
Phone dependent
Rider/Passenger Intercom
Rider and passenger headsets sold separately; VOX is available for H-D headsets
USB
USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
Bluetooth
Phone/Media Player, Headset
