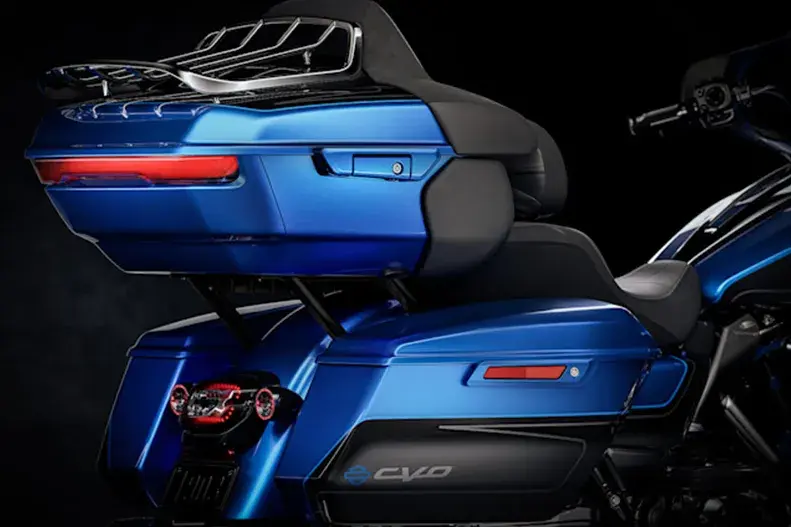

Nothing on the new 2026 CVO Street Glide Limited is left to chance. This is the ultimate luxury touring machine, from the split seven-spoke custom wheels and Citrus Heat tri-tone paint to the new Grand Tour-Pak® with flush LED lighting. Every line, every contour, and every nut and bolt on this motorcycle is deliberate. Underneath, the Milwaukee-Eight® VVT 121 motor and Skyline™ OS infotainment system set the standard for performance and innovation. This is more than attention to detail. It’s absolute devotion to it.
Disclaimer
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Specifications
Length
2625 mm mm
Seat height, laden
740 mm mm
Rake
26
Wheelbase
1625 mm
Tyres, front specifications
130/60B19 M/C 61H
Tyres, rear specifications
180/55B18 M/C 80H
Oil capacity
4.7 l
Weight, as shipped
400 kg
Weight, in running order
416.85 kg
Luggage capacity – Volume
4.8 cu ft (0.136 m3)

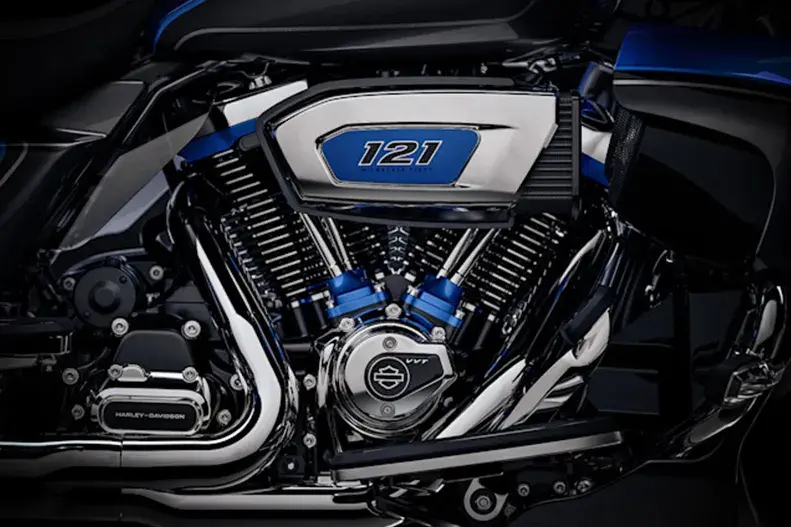

Engine
Milwaukee-Eight® VVT 121
Bore
103.5 mm mm
Stroke
117.5 mm mm
Displacement
1977 cm³
Compression ratio
11.4:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-1-2 dual exhaust with tapered mufflers
Primary drive
Belt, 32/68 ratio
Gear Ratios (overall) 1st
9.593
Gear Ratios (overall) 2nd
6.65
Gear Ratios (overall) 3rd
4.938
Gear Ratios (overall) 4th
4
Gear Ratios (overall) 5th
3.407
Gear Ratios (overall) 6th
2.875
Engine torque testing method
J1349
Engine torque
189 Nm Nm
Engine Torque (rpm)
3000
Horsepower
115 HP / 86 kW @ 4500 rpm
Fuel economy testing method
Estimated City/Hwy
Fuel economy
45 mpg (5.1 l/100 km)
CO2 emissions
142 g/km CO2
Wheels, front type
Dual Grain, Chrome, 14-spoke
Wheels, rear type
Dual Grain, Chrome, 14-spoke
Brakes, caliper type
4-piston fixed dual radial mounted front, and single axial mounted rear
Front fork
47 mm Inverted 1x1 Front Forks
Rear shocks
Dual adjustable emulsions suspension with remote preload adjustment on the left shock, and threaded preload on the right shock
Brakes, Type
Dual floating rotors (front), fixed rotor (rear)
Lights (as per country regulation), Indicator Lamps
High beam, running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, battery, security system, low fuel warning, cruise control, ABS, Gear/RPM display, miles to empty display
Gauges
Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
Infotainment system
Skyline™ OS
Type
Full Color TFT
Speakers
6
Speaker size
Two 6.5 in fairing speakers, two 6.5 in Tour-pak speakers, and two 6.5 in lower fairing speakers
Headset specifications (if equipped)
Harley-Davidson® Packtalk Edge wireless Bluetooth® headset
AM
Standard
FM
Standard
SD Card, Flash Drive and MP3 - via USB Connection
Supported
Languages
Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish & Vietnamese
Hands-free Mobile Phone - via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner / Media / Navigation
Danish, English (UK/USA default), French (Canada/France), German, Italian, Spanish (Mexico/Spain) & Swedish
Text-to-Speech (TTS) Languages
Same as Languages list
Vehicle information screen
Standard
USB
USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
Bluetooth
Phone/Media Player, Headset
