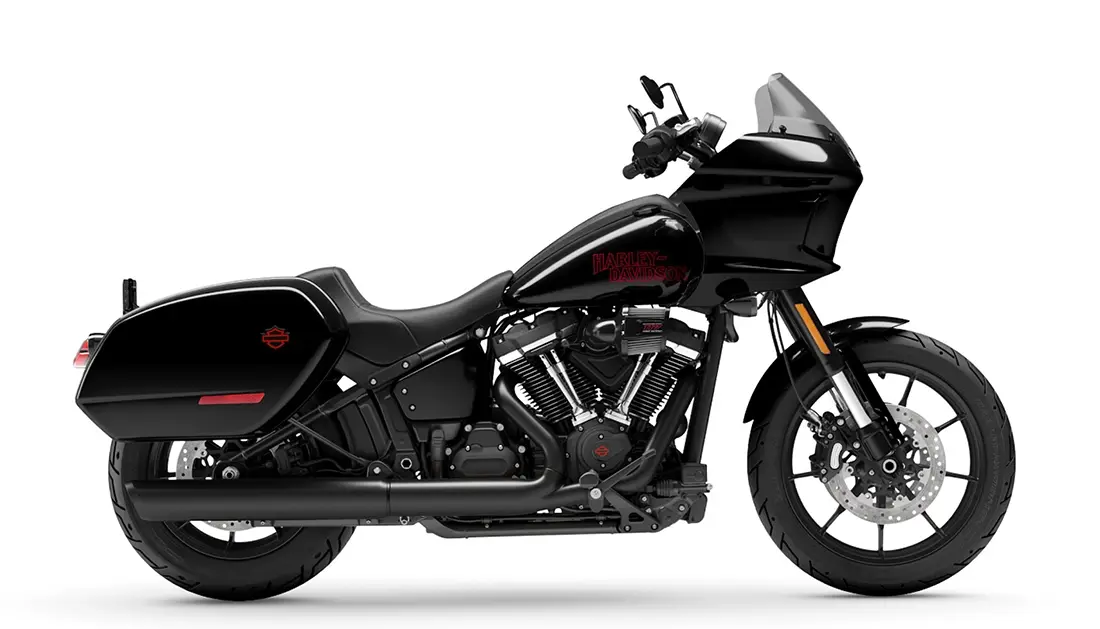

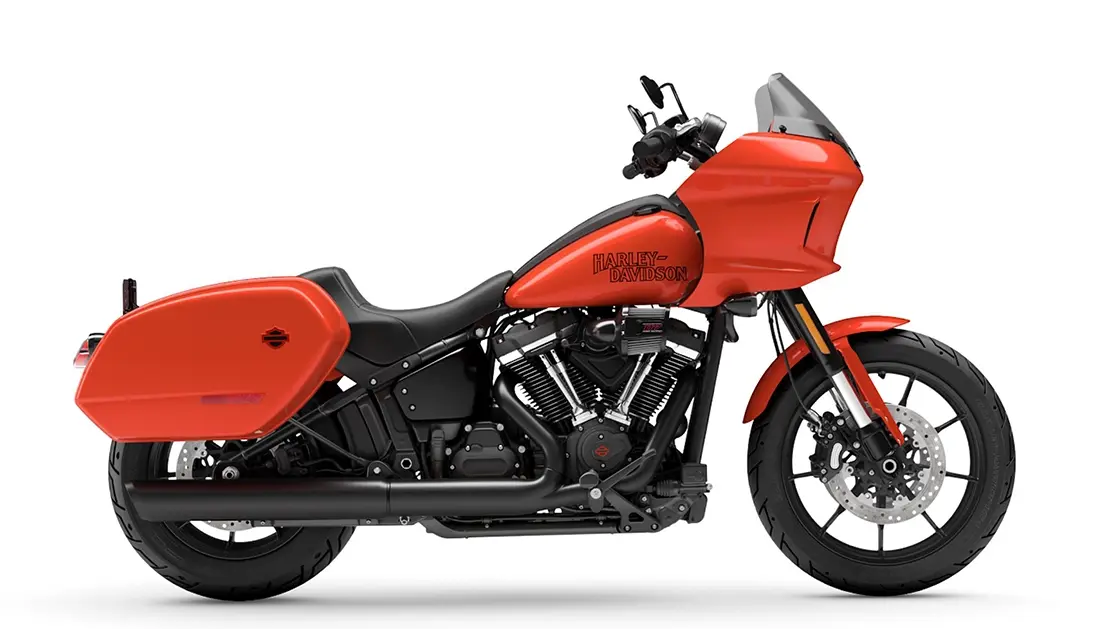

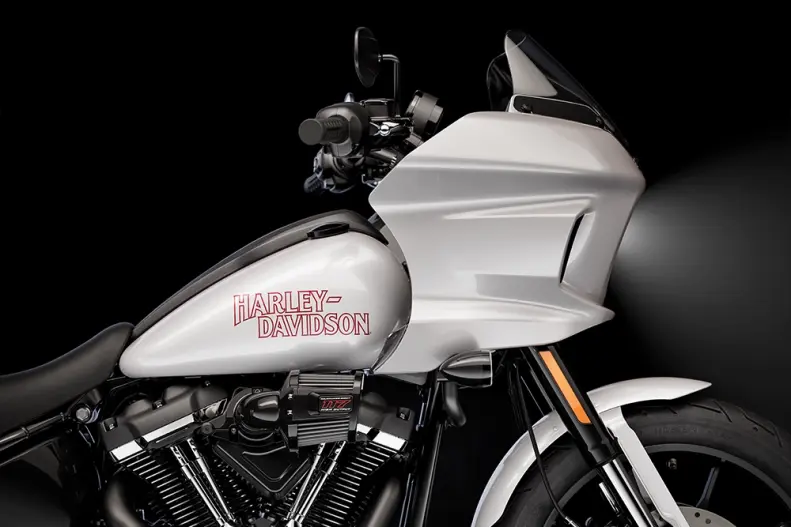

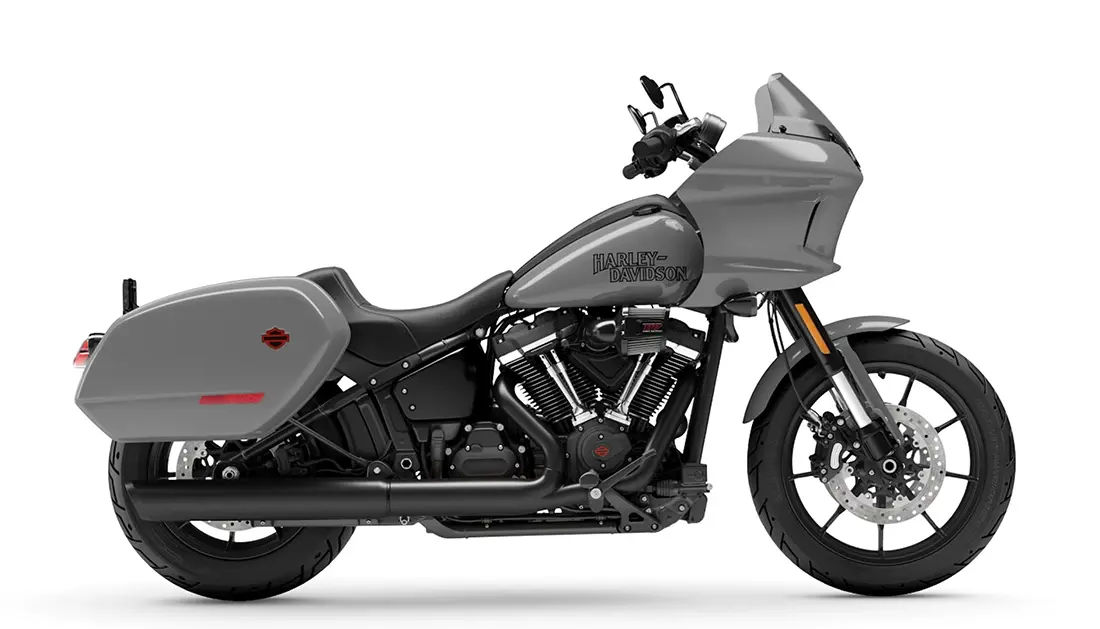

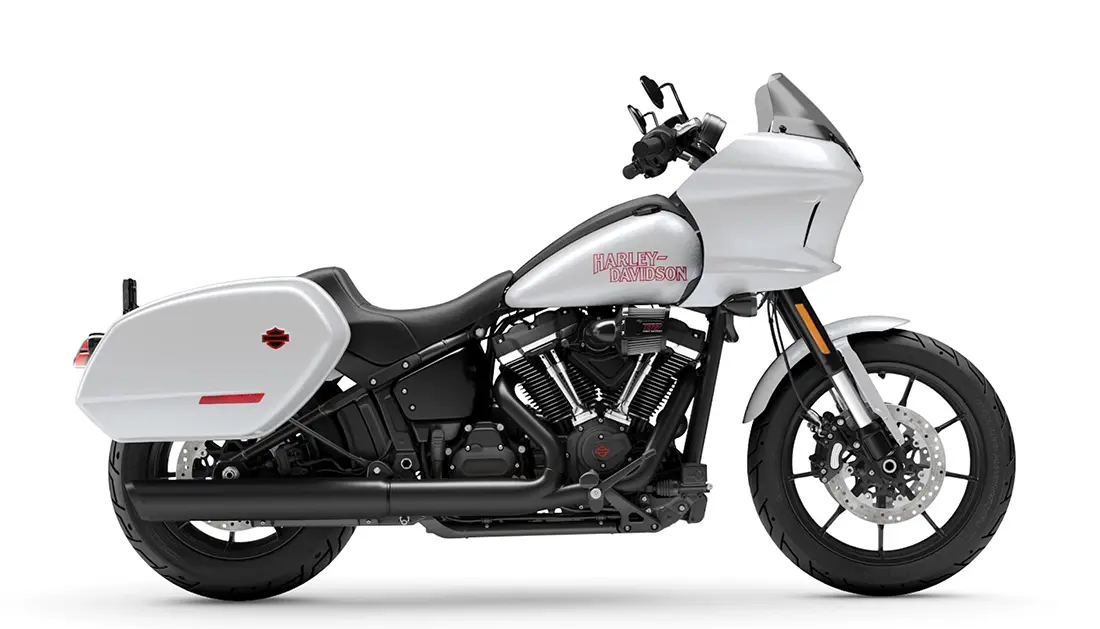

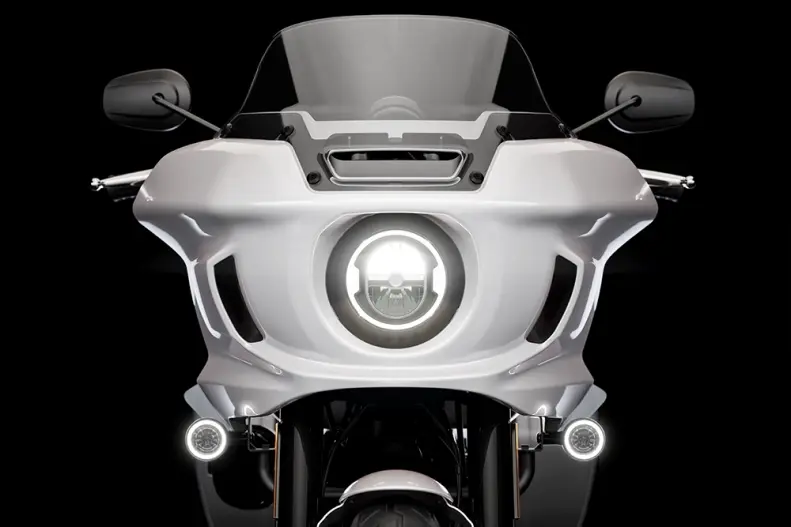

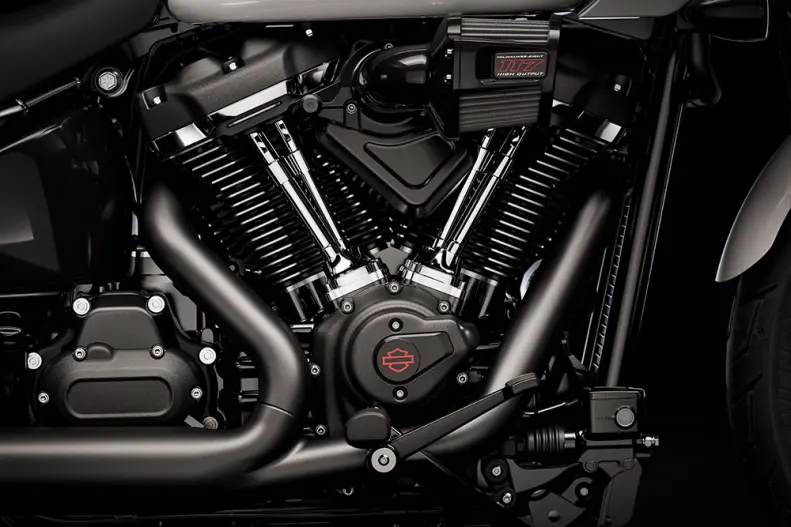

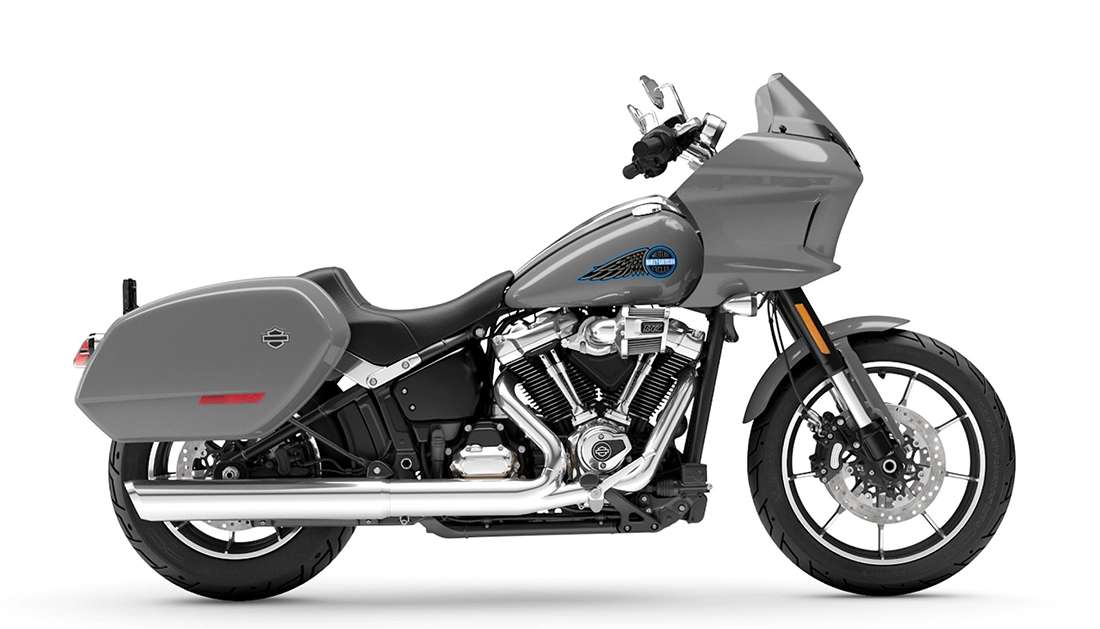

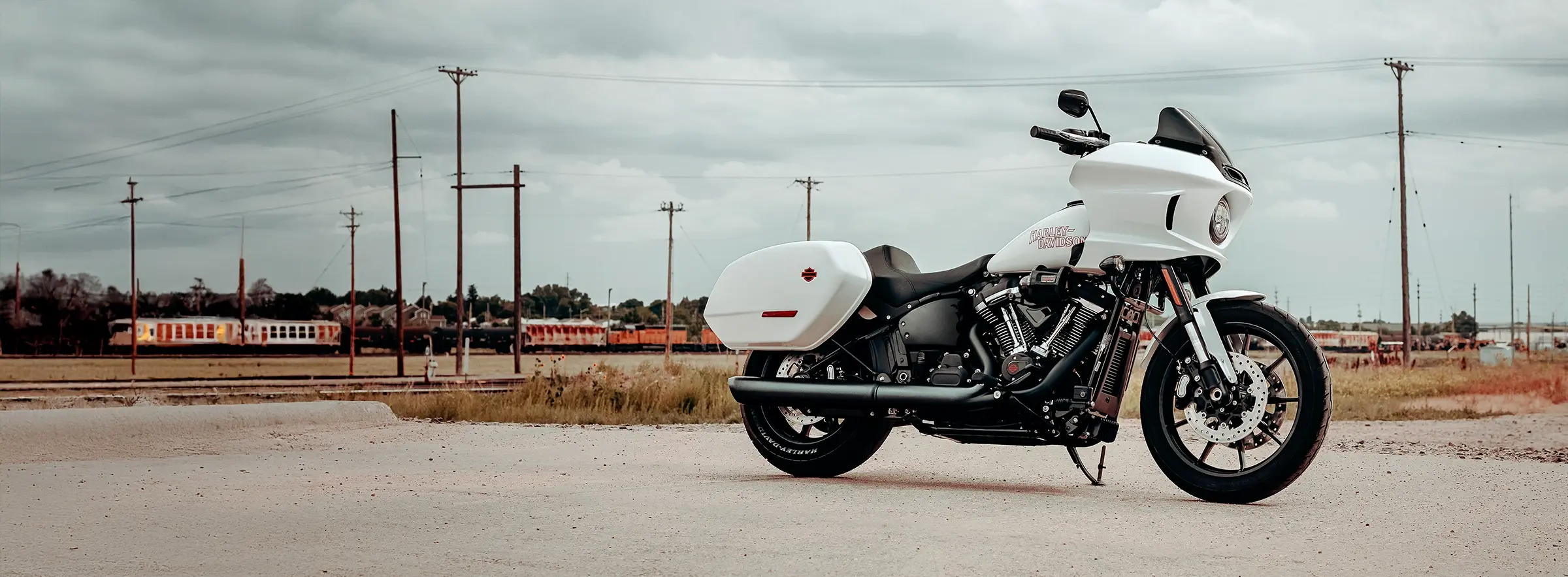

The performance pedigree of the 2026 Low Rider ST shows up in every detail. From its FXRT-inspired fairing and special touches on the chrome and black trim that nod to its roots, to the Milwaukee-Eight® 117 High Output motor, performance-tuned suspension, Heavy Breather intake, and performance 2-into-1 exhaust, it’s designed for life on the limiter. Oh, and USB-C charging comes standard.
Disclaimer
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Specifications
Length
2360 mm
Seat height, unladen
715 mm
Rake
28
Trail
145 mm
Wheelbase
1615 mm
Tyres, front specifications
110/90B19,62H,BW
Tyres, rear specifications
180/70B16,77H,BW
Fuel capacity
18.9 l l
Oil capacity
4.7
Weight, as shipped
311 kg
Weight, in running order
322.96 kg
Luggage capacity – Volume
2 cu ft (0.056 m3)
Tyre, Type
Michelin® Scorcher 31, front and rear
Engine
Milwaukee-Eight® 117 High-Output
Bore
103.5 mm
Stroke
114.3 mm
Displacement
1923 cm³
Compression ratio
10.3:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)

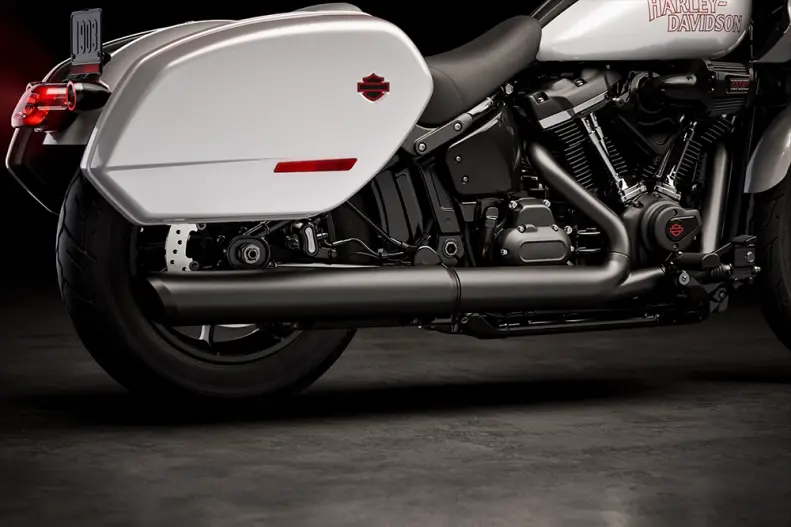

Exhaust
2-into-1; catalyst in header
Primary drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Engine torque testing method
EC 134/2014
Engine torque
168 Nm
Engine Torque (rpm)
4000
Horsepower
114 HP / 85 kW @ 5000 rpm
Lean angle, right (deg.)
31.3
Lean angle, left (deg.)
31.3
Fuel economy testing method
EU 134/2014
Fuel economy
5.6 l/100 km (42 mpg)
CO2 emissions testing method
EU 134/2014
CO2 emissions
135 g/km
Wheels, front type
Chrome, Radiate Cast Aluminum
Wheels, rear type
Chrome, Radiate Cast Aluminum
Brakes, caliper type
4-piston fixed front and 2-piston floating rear
Front fork
Single cartridge 43 mm inverted with aluminum fork triple clamps; single rate spring
Rear shocks
Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
Brakes, Type
Front and rear black, Split 7-spoke floating rotors
