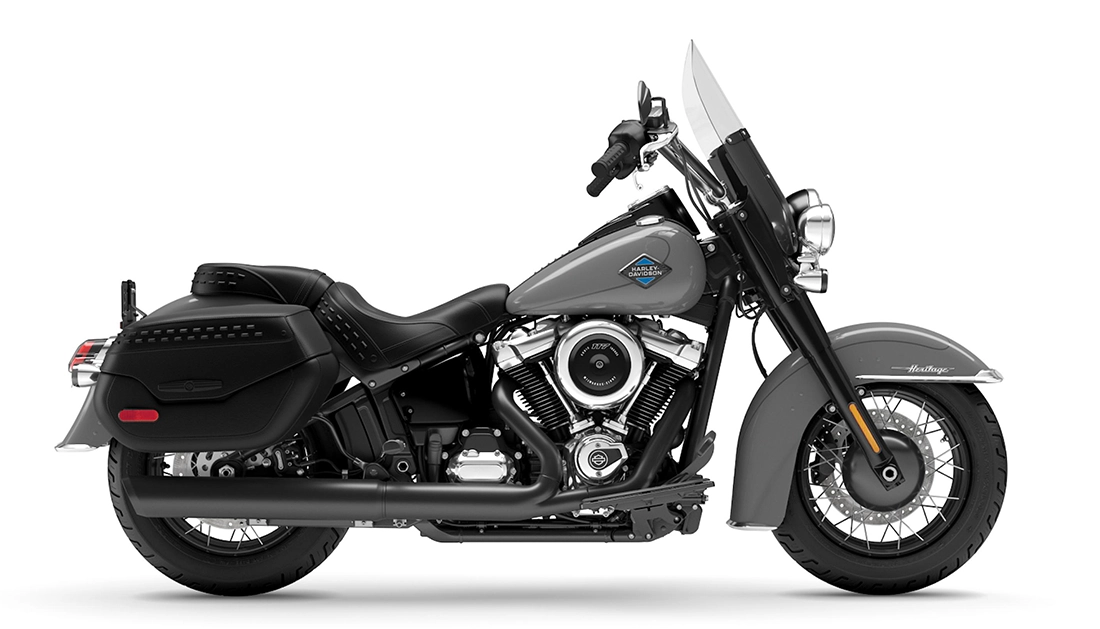

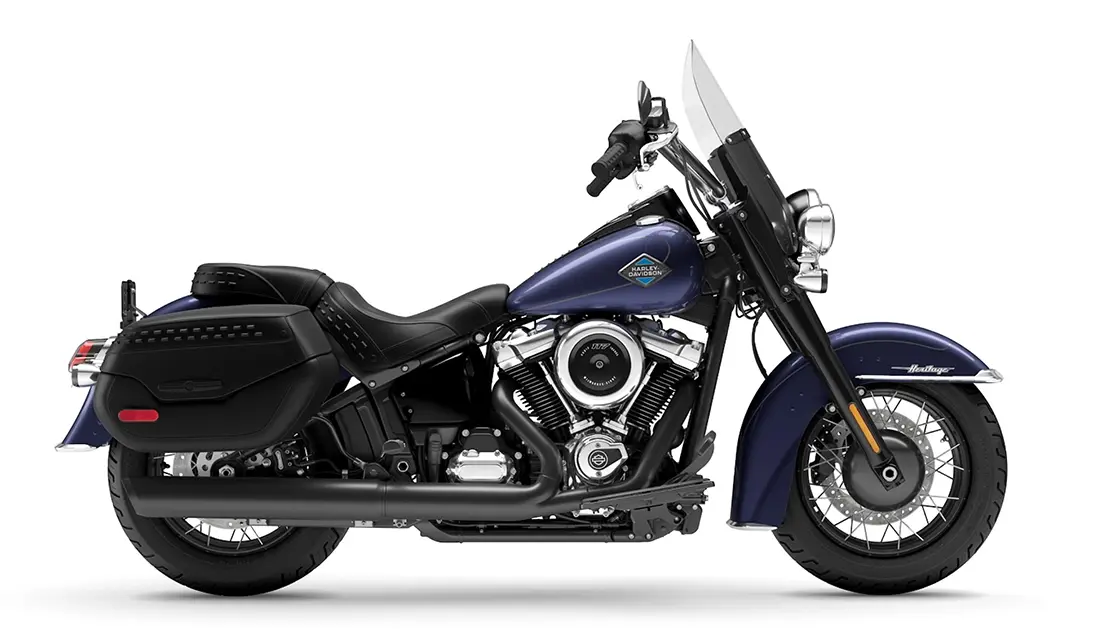

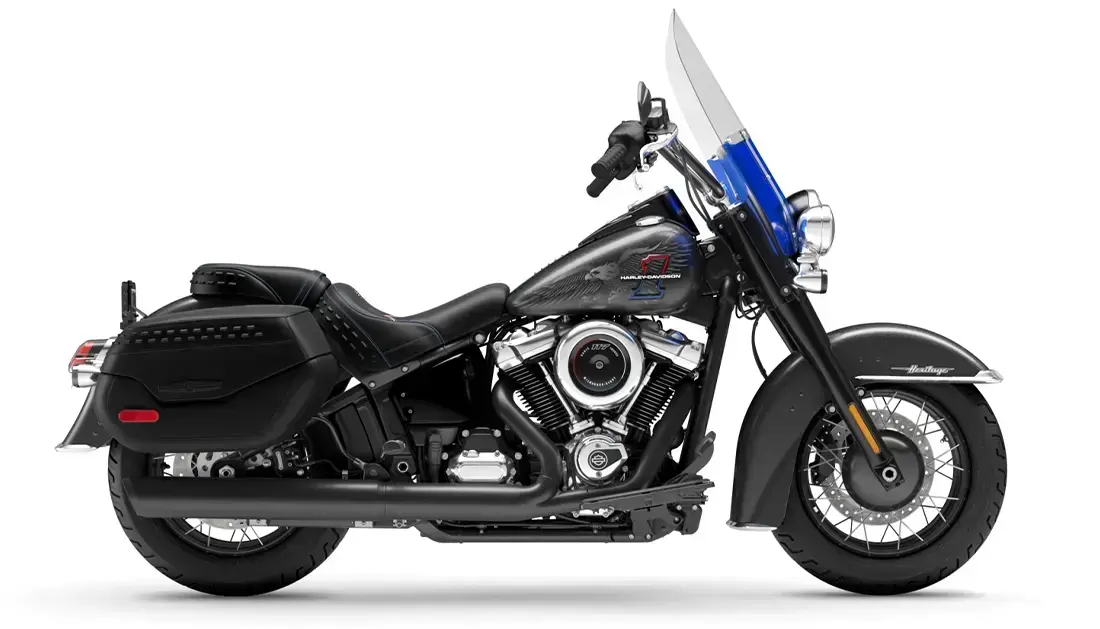

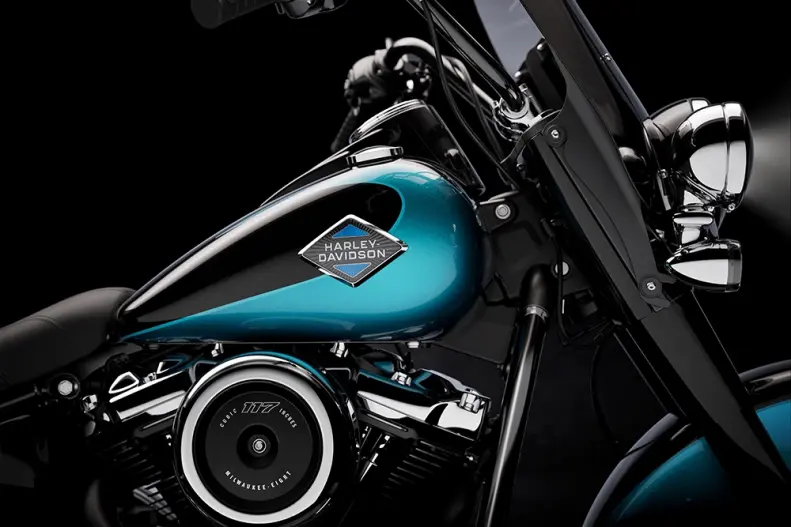

Heritage Classic
The dark style, modern edge and reinvigorated ride of the Heritage model take nostalgia ripping into a new place.

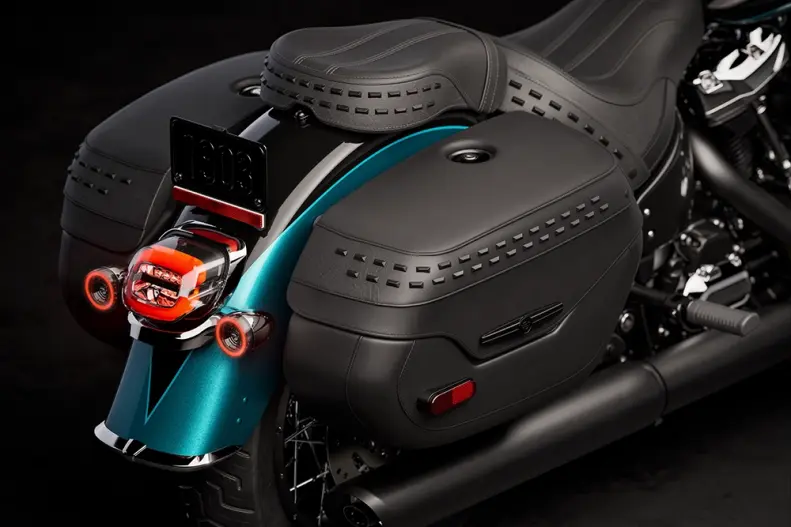

Easily adjustable mono-shock rear suspension allows for dynamic cornering capability while preserving the hardtail look. It has lockable sealed saddlebags that are sleek and roomy, with enough space to stash your riding essentials.
Disclaimer
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Specifications
Length
2415 mm
Seat height, laden
668 mm
Seat height, unladen
680 mm
Ground clearance
120 mm
Rake
30
Trail
140 mm
Wheelbase
1630 mm
Tyres, front specifications
130/90B16,73H,BW
Tyres, rear specifications
150/80B16,77H,BW
Fuel capacity
18.9 l
Oil capacity
4.7 l
Weight, as shipped
316 kg
Weight, in running order
330.21 kg
Luggage capacity – Volume
1.5 cu ft (0.043 m3)
Engine
Milwaukee-Eight® 114
Bore
102 mm
Stroke
114 mm
Displacement
1868 cm³
Compression ratio
10.5:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)

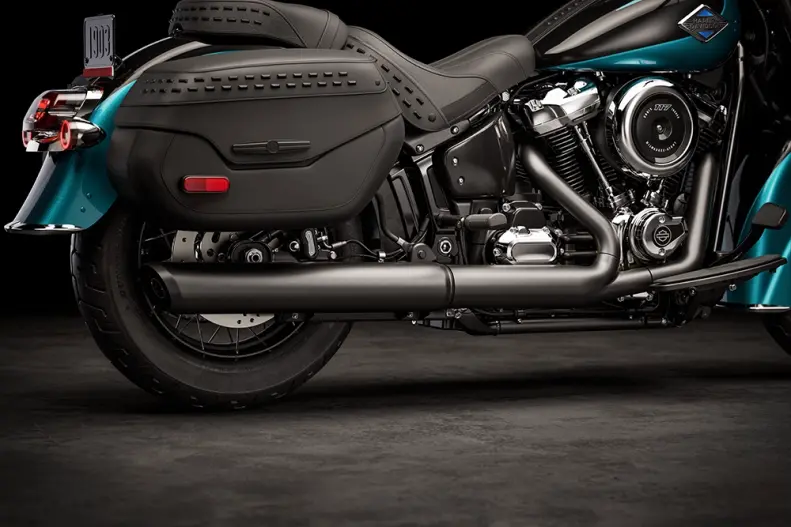

Exhaust
2-into-2 shorty dual; catalyst in muffler
Primary drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Engine torque testing method
EC 134/2014
Engine torque
161 Nm
Engine Torque (rpm)
3000
Horsepower
94 HP / 70 kW @ 4750 rpm
Lean angle, right (deg.)
27.3
Lean angle, left (deg.)
28.5
Fuel economy testing method
EU 134/2014
Fuel economy
5 l/100 km
CO2 emissions testing method
EU 134/2014
CO2 emissions
128 g/km CO2
Wheels, front type
Gloss black, 9-spoke cast aluminum
Wheels, rear type
Gloss black, 9-spoke cast aluminum
Brakes, caliper type
4-piston fixed front and 2-piston floating rear
Lights (as per country regulation), Indicator Lamps
High beam, turn signals, neutral, low oil pressure, engine diagnostics, auxilary lighting, cruise, ABS, security, low battery voltage, low fuel
Gauges
5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
