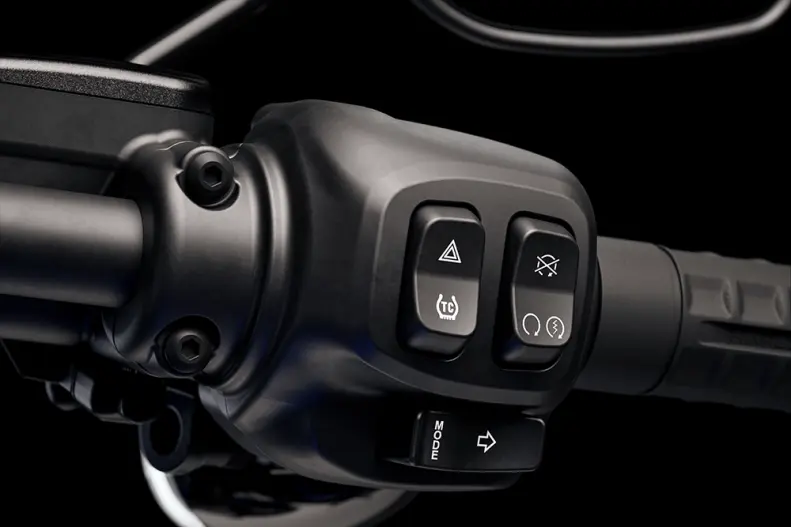

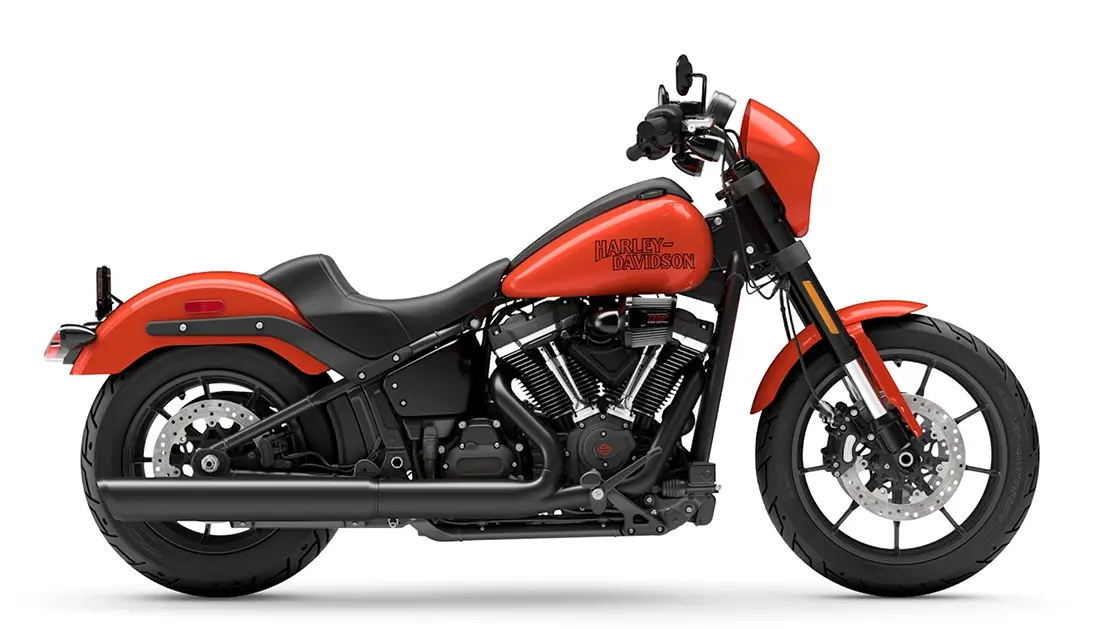

For riders who want more out of every mile, the 2026 Low Rider S brings a sharper edge to factory performance. From its rip-ready suspension to the Heavy Breather intake and performance-tuned 2-into-1 exhaust, this machine is built to cut harder, corner sharper, and rev to the limiter. And with the Milwaukee-Eight® 117 High Output motor and standard Rider Safety Enhancements, it’ll let you ride like you were born for it.
Disclaimer
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Specifications
Length
2365 mm
Seat height, laden
715 mm
Rake
28
Trail
145 mm
Wheelbase
1615 mm
Tyres, front specifications
110/90B19,62H,BW
Tyres, rear specifications
180/70B16,77H,BW
Fuel capacity
18.9 l
Oil capacity
4.7
Weight, as shipped
295 kg
Weight, in running order
303.91 kg
Tyre, Type
Michelin® Scorcher 31, front and rear

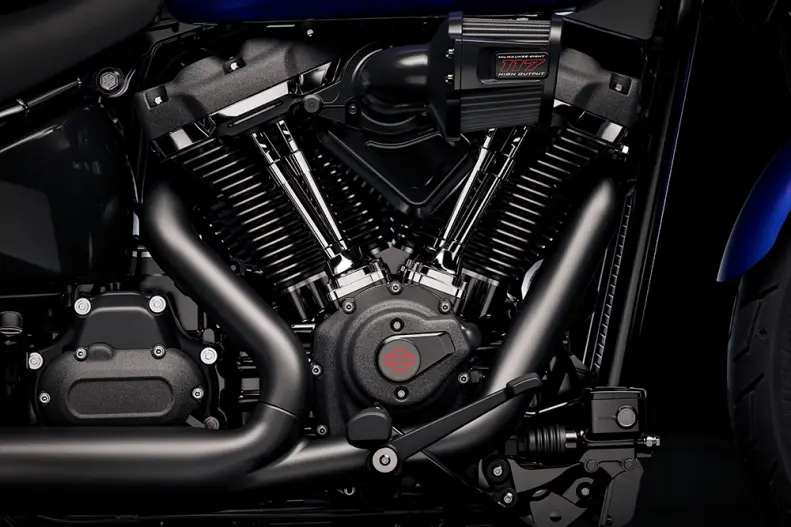

Engine
Milwaukee-Eight® 117 High-Output
Bore
103.5 mm
Stroke
114.3 mm
Displacement
1923 cm³
Compression ratio
10.3:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)

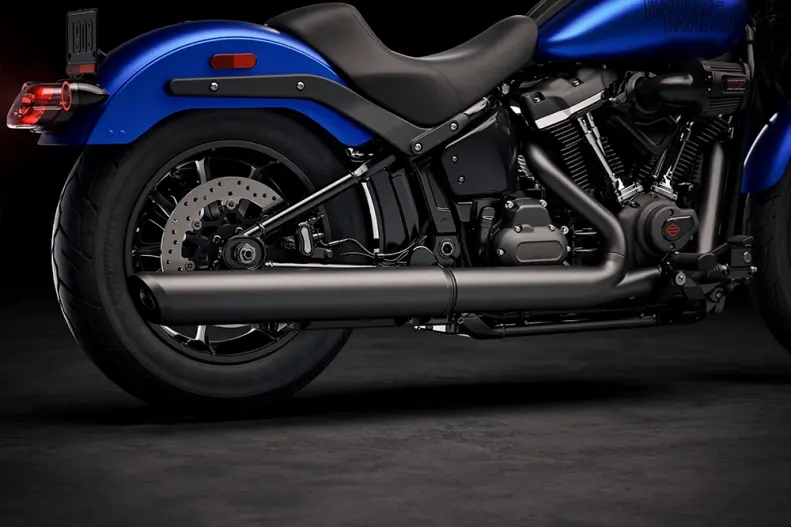

Exhaust
2-into-1; catalyst in header
Primary drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Engine torque testing method
EC 134/2014
Engine torque
168 Nm
Engine Torque (rpm)
4000
Horsepower
114 HP / 85 kW @ 5000 rpm
Lean angle, right (deg.)
31.3
Lean angle, left (deg.)
31.3
Fuel economy testing method
EU 134/2014
Fuel economy
5.6 l/100 km
CO2 emissions testing method
EU 134/2014
CO2 emissions
135 g/km
Wheels, front type
Black, Radiate cast aluminum wheel
Wheels, rear type
Black, Radiate cast aluminum wheel
Brakes, caliper type
4-piston fixed front and 2-piston floating rear
Front fork
Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
Rear shocks
Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
Brakes, Type
Front and rear black, Split 7-spoke floating rotors
