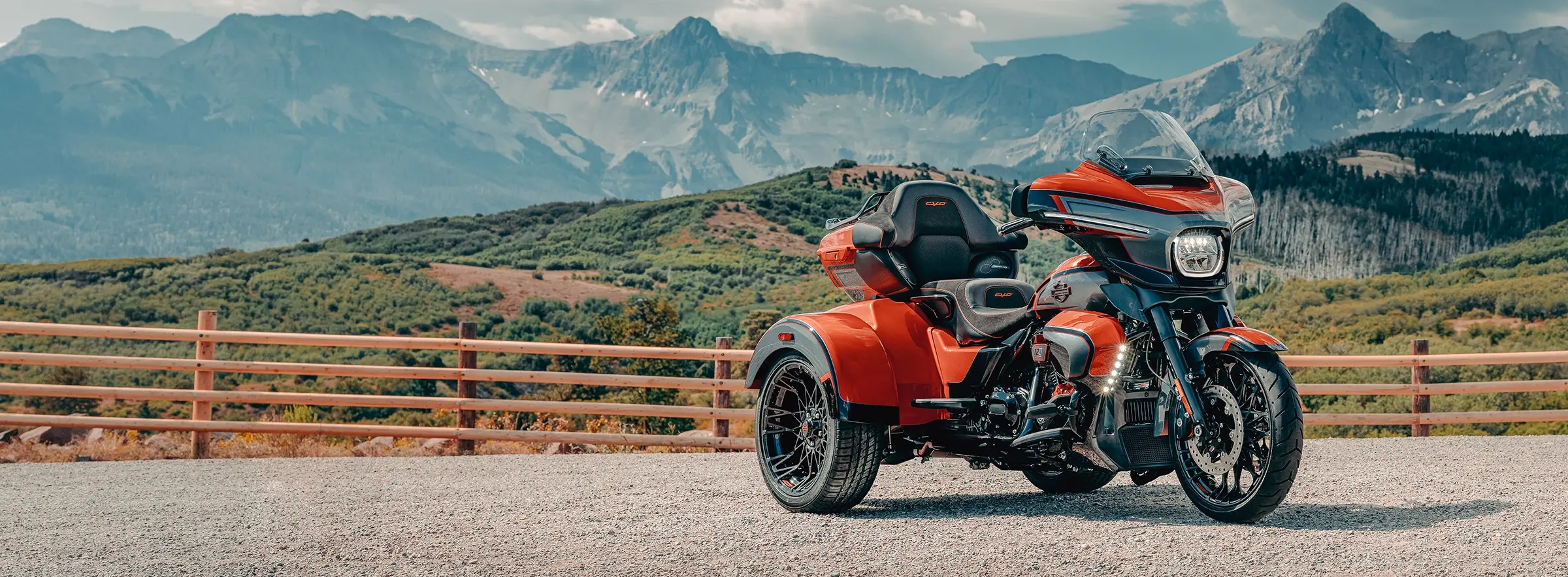

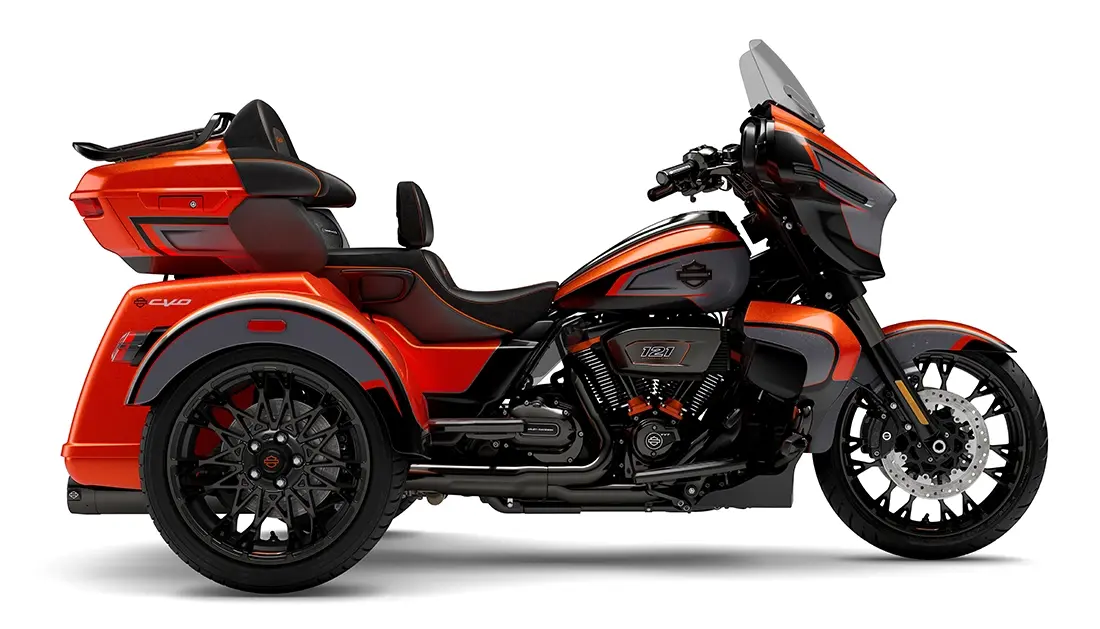

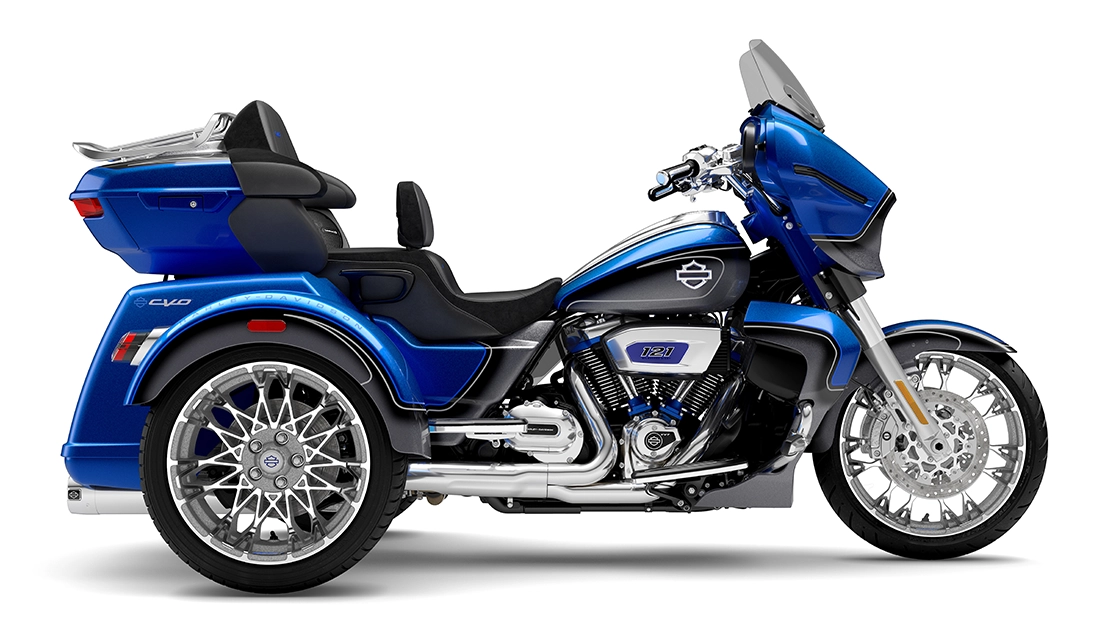

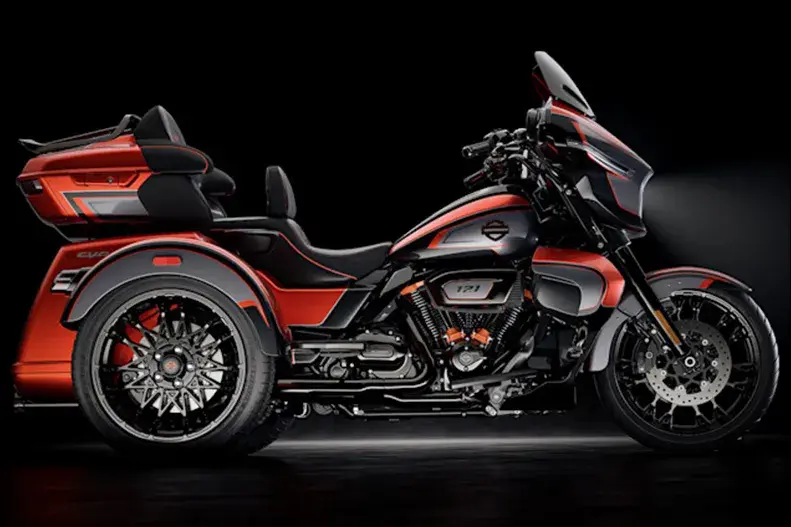

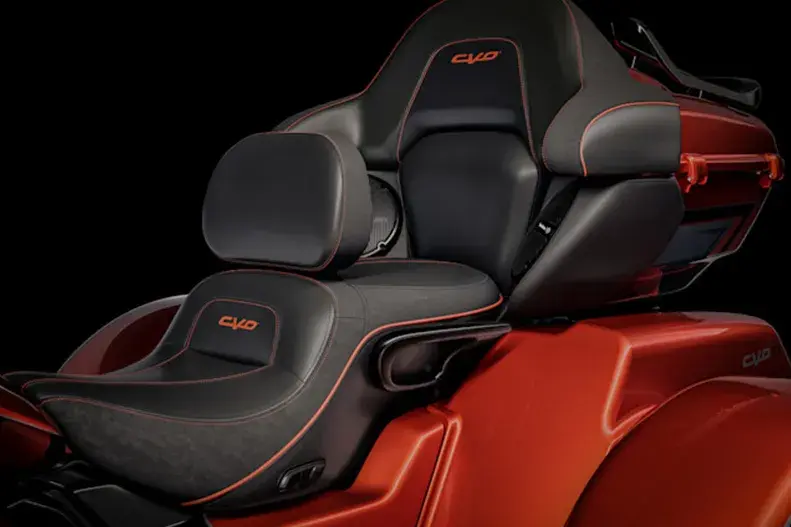

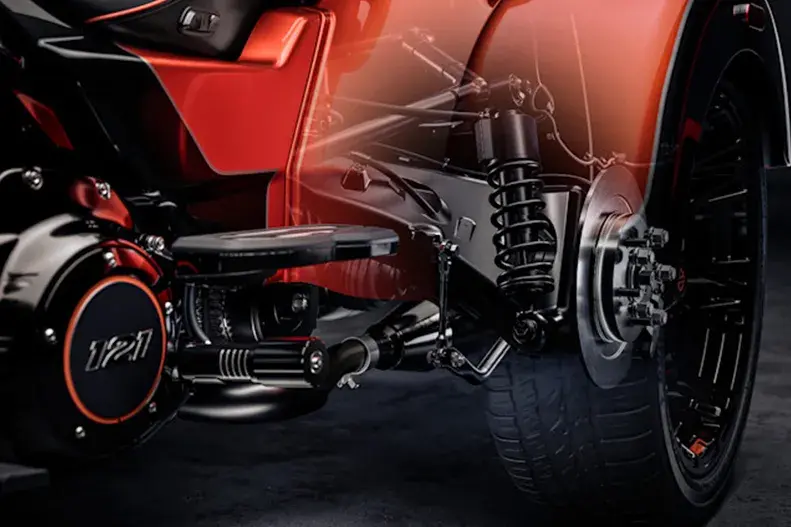

Trust us when we say this is a whole different kind of Trike. At the heart of the CVO Street Glide 3 Limited is the Milwaukee-Eight® VVT 121 motor, paired with a redesigned suspension and a new electric reverse system that make three-wheel touring feel commanding and assured. Heated seats, a trunk, the completely redesigned all-new Grand Tour-Pak®, 12.3” TFT display with Skyline™ OS, premium H-D™ audio, and exclusive CVO colourways elevate this machine into legend territory.
Disclaimer
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Specifications
Length
2685 mm
Seat height, laden
735 mm
Rake
26
Wheelbase
1720 mm
Tyres, front specifications
130/60B19 M/C 61H
Tyres, rear specifications
P215/45R18 83T
Fuel capacity
22.7 l
Oil capacity
4.7
Weight, as shipped
564 kg
Weight, in running order
581.96 kg

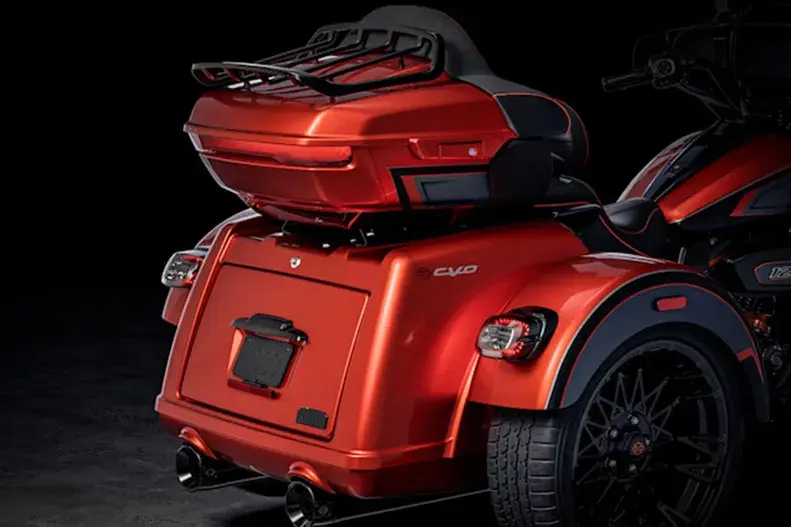

Luggage capacity – Volume
7.1 cu ft (0.201 m3)

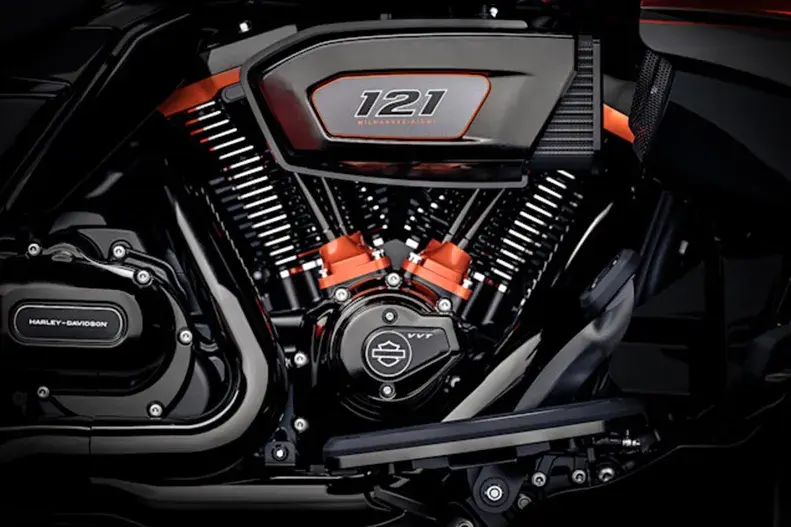

Engine
Milwaukee-Eight® VVT 121
Bore
103.5 mm
Stroke
117.5 mm
Displacement
1977 cm³
Compression ratio
11.4:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-1-2 dual Exhaust
Primary drive
Belt, 30/70 ratio
Gear Ratios (overall) 1st
10.534
Gear Ratios (overall) 2nd
7.302
Gear Ratios (overall) 3rd
5.423
Gear Ratios (overall) 4th
4.392
Gear Ratios (overall) 5th
3.742
Gear Ratios (overall) 6th
3
Engine torque testing method
J1349
Engine torque
187 Nm
Engine Torque (rpm)
3750
Horsepower
114 HP / 85 kW @ 4500 rpm
Lean angle, right (deg.)
N/A
Lean angle, left (deg.)
N/A
Fuel economy testing method
Estimated City/Hwy
Fuel economy
39 mpg (6 l/100 km)
Wheels, front type
Dual Grain, Chrome, 14-spoke
Wheels, rear type
Dual Grain, Chrome, 14-spoke
Brakes, caliper type
Front: 32 mm 4 piston fixed, Rear: floating 36 mm piston integrated park brake
Front fork
1.9 in dual bending valve
Rear shocks
Hand-adjustable emulsion rear suspension
Brakes, Type
Dual floating rotors (front), fixed rotor (rear)
Infotainment system
Skyline™ OS
Type
Full Color TFT
Watts per channel
50
Speakers
6
Speaker size
Two 6.5 in fairing speakers, two 6.5 in Tour-pak speakers, and two 6.5 in lower fairing speakers
Headset specifications (if equipped)
Harley-Davidson® Packtalk Edge wireless Bluetooth® headset
AM
Standard
FM
Standard
SD Card, Flash Drive and MP3 - via USB Connection
Supported
Languages
Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish & Vietnamese
Hands-free Mobile Phone - via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner / Media / Navigation
Danish, English (UK/USA default), French (Canada/France), German, Italian, Spanish (Mexico/Spain) & Swedish
Text-to-Speech (TTS) Languages
Same as Languages list
Vehicle information screen
Standard
USB
USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
Bluetooth
Phone/Media Player, Headset
