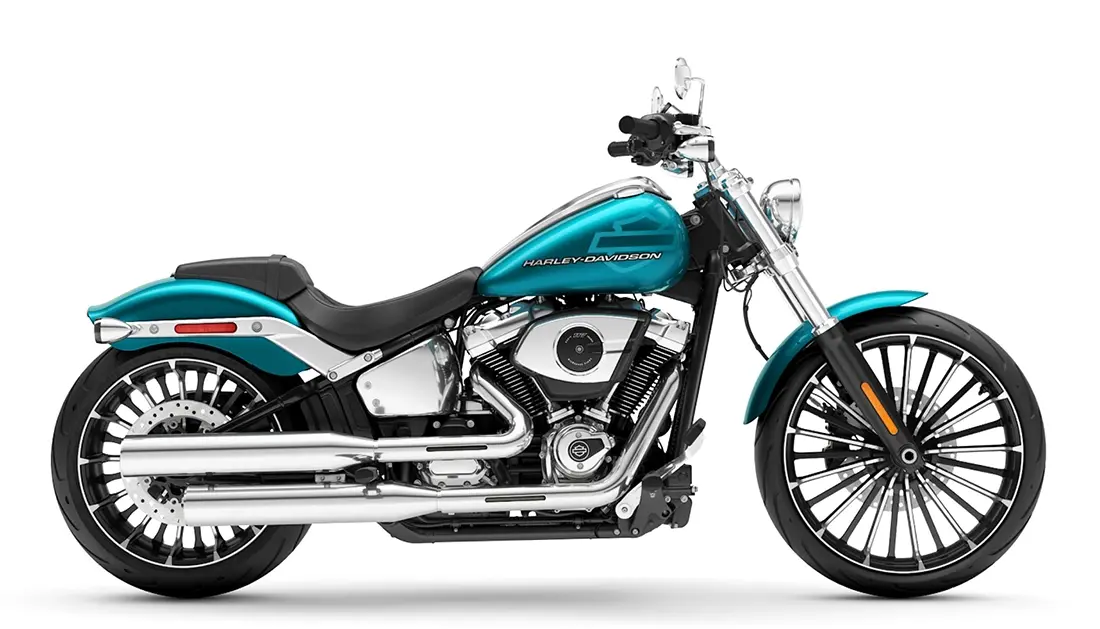

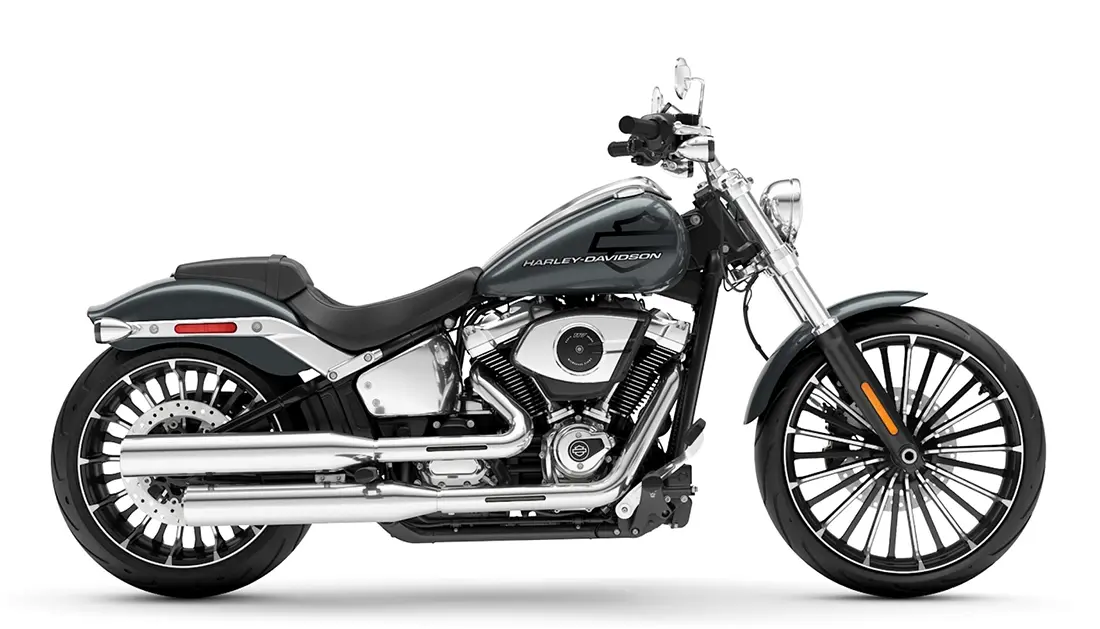

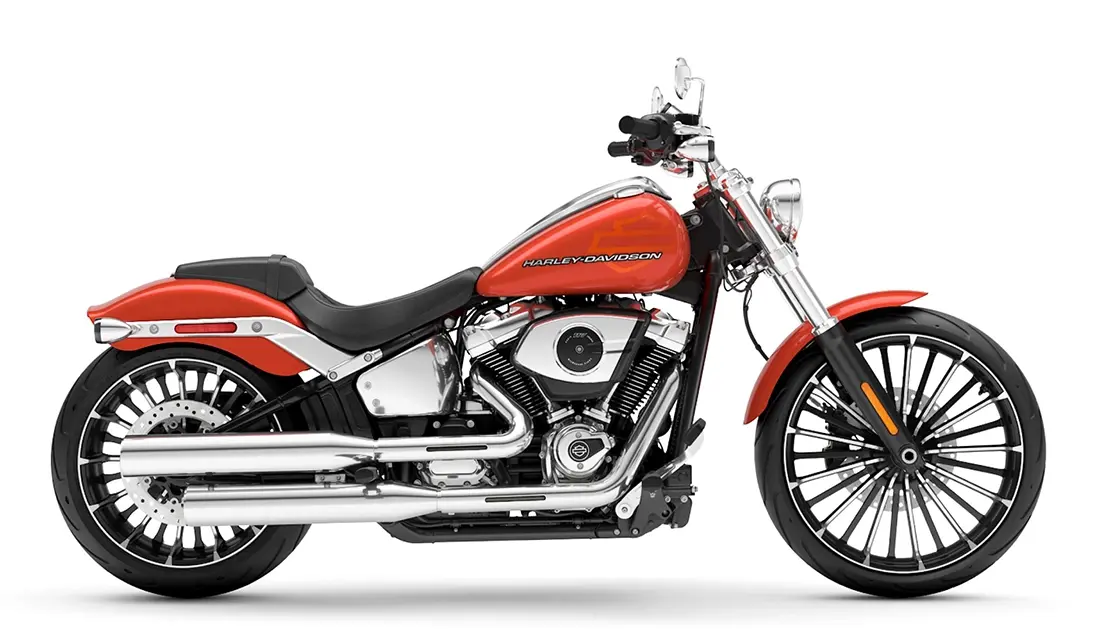

With 34 degrees of rake in the neck, a bobtail fender, and a 240mm rear tire, the 2026 Breakout feels like a factory-built street sweeper. But don’t get lost in the long-and-low chopper lore. This bike also offers USB-C charging, Rider Safety Enhancements standard, a monster Milwaukee-Eight® 117 Custom, two new paint options, and much more.
Disclaimer
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Specifications
Length
2375 mm
Seat height, laden
650 mm
Seat height, unladen
665 mm
Ground clearance
115 mm
Rake
34
Trail
145 mm
Wheelbase
1695 mm
Tyres, front specifications
130/60B21,63H,BW

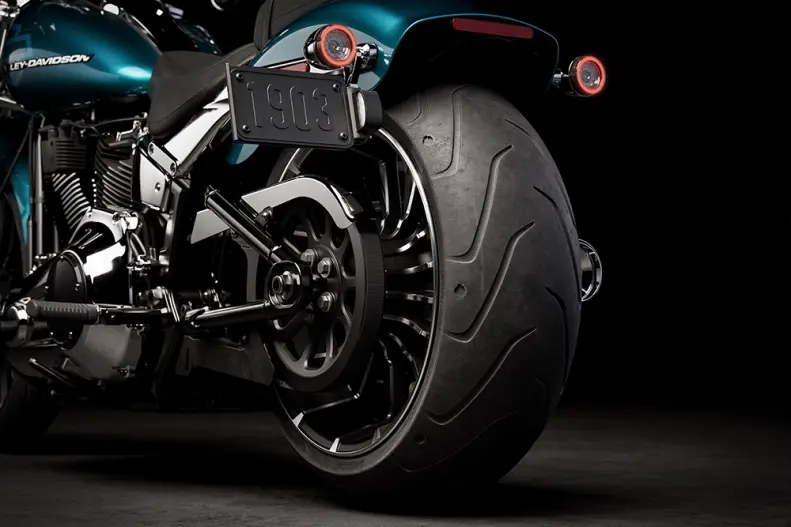

Tyres, rear specifications
240/40R18,79V,BW
Fuel capacity
18.9 l
Oil capacity
4.7
Weight, as shipped
297 kg
Weight, in running order
309.80 kg
Engine

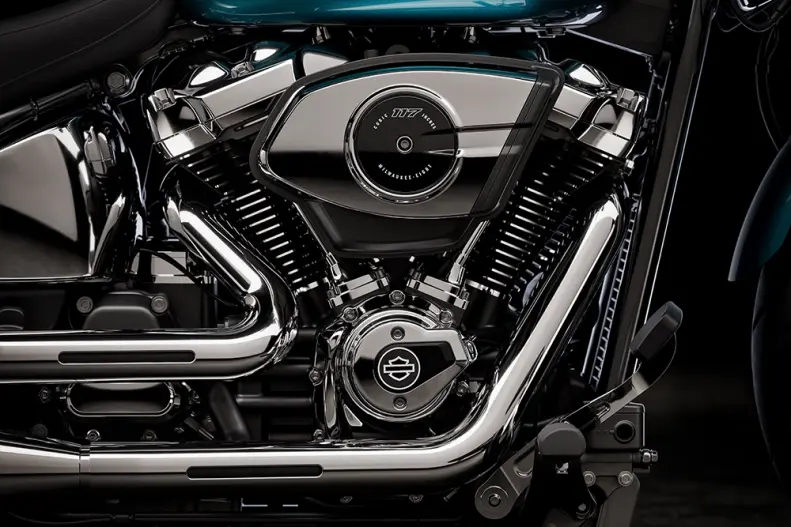

Milwaukee-Eight® 117 Custom
Bore
103.5 mm
Stroke
114.3 mm
Displacement
1923 cm³
Compression ratio
10.3:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-2 staggered; catalyst in muffler
Primary drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Engine torque testing method
EC 134/2014
Engine torque
171 Nm
Engine Torque (rpm)
3000
Horsepower
104 HP / 77 kW @ 4800 rpm
Lean angle, right (deg.)
26.8
Lean angle, left (deg.)
26.8
Fuel economy testing method
EU 134/2014
Fuel economy
49 mpg (4.8 l/100 km)
Wheels, front type
Gloss black, 26-spoke cast aluminum
Wheels, rear type
Gloss black, 26-spoke cast aluminum

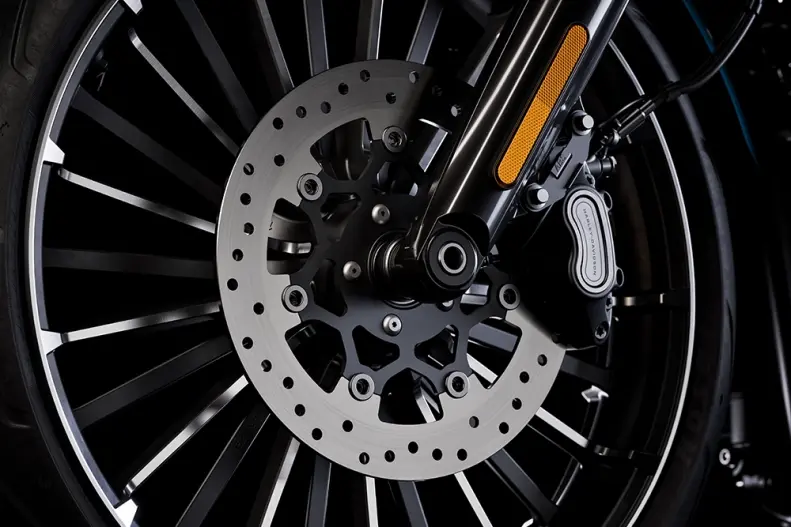

Brakes, caliper type
4-piston fixed front and 2-piston floating rear
Front fork
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
Rear shocks
Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
Brakes, Type
Front and rear black, Split 7-spoke floating rotors
