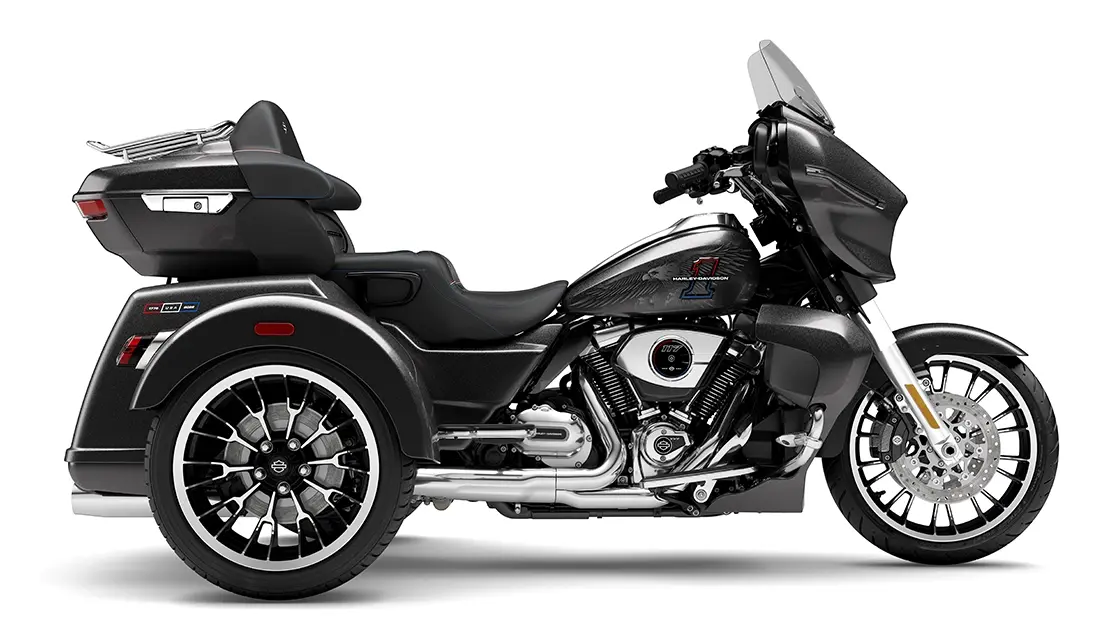

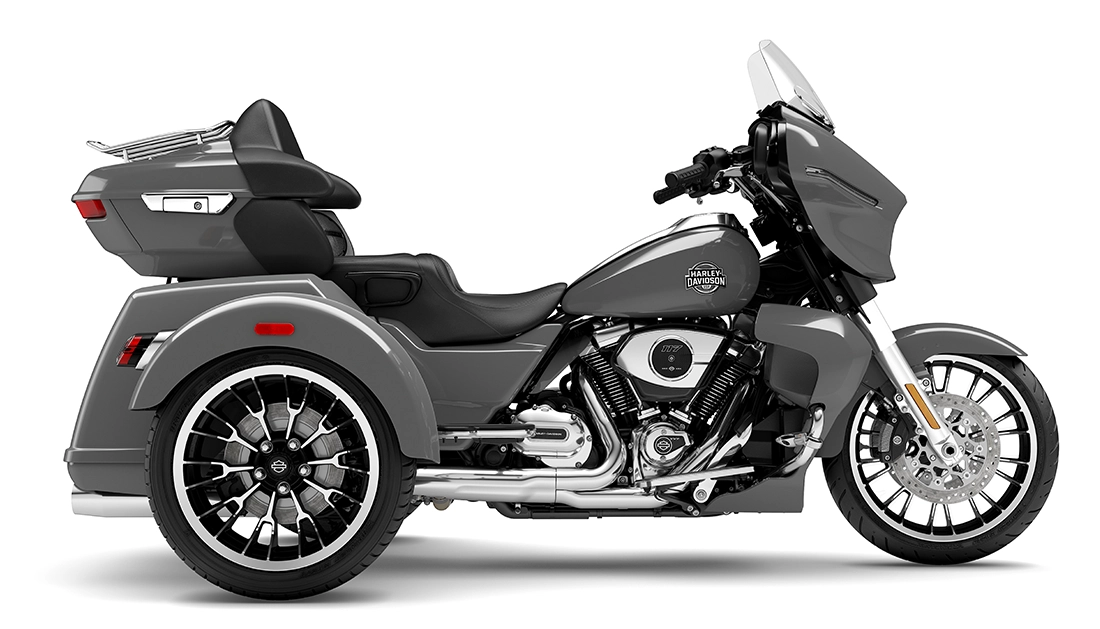

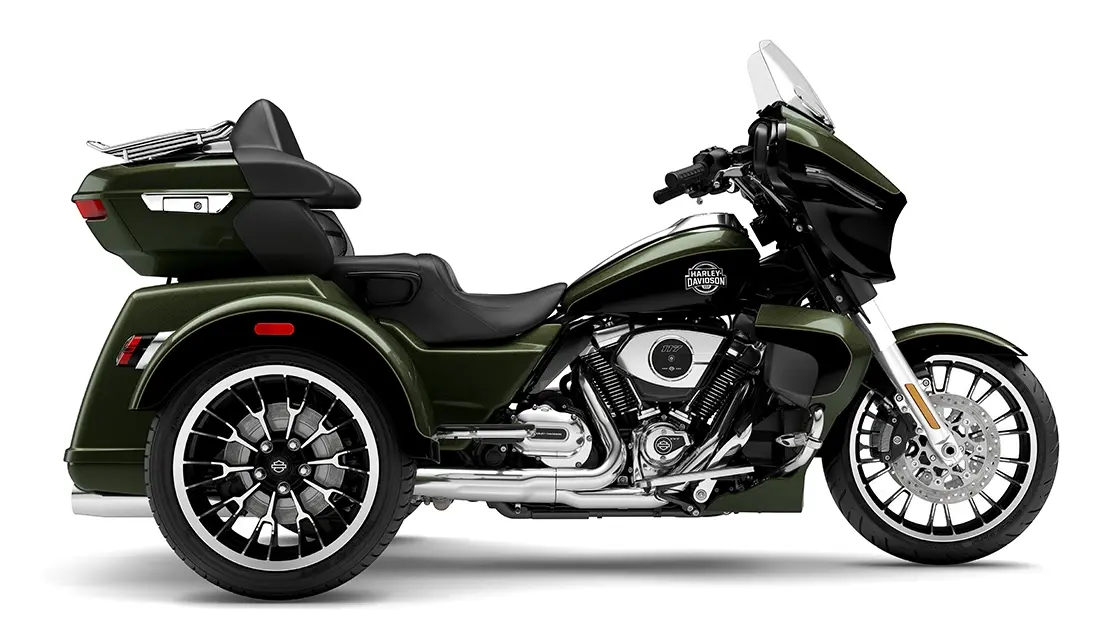

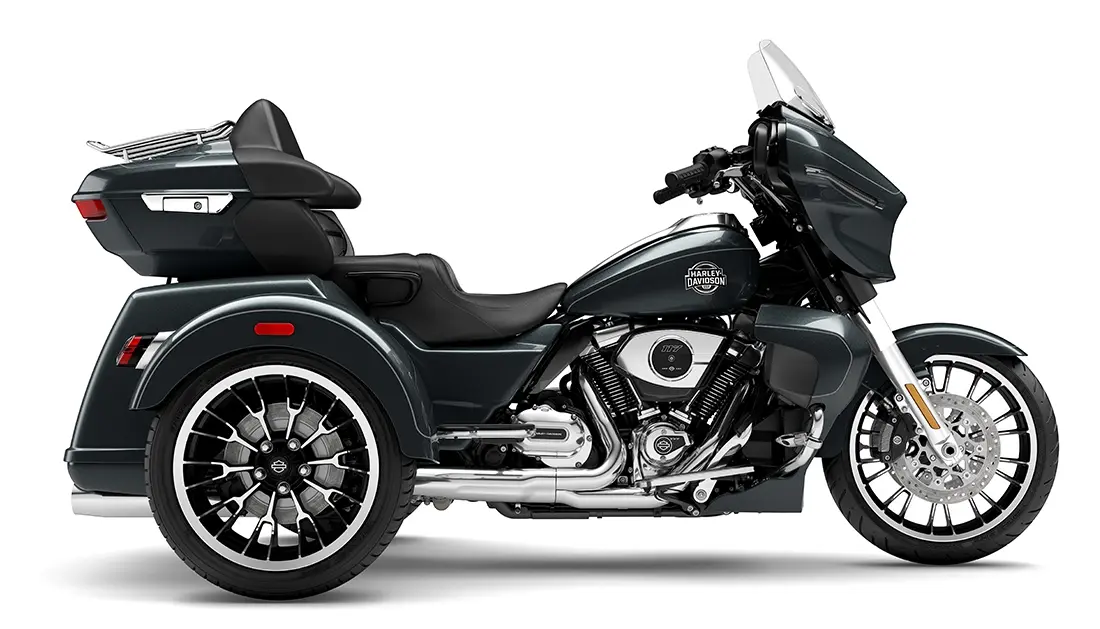

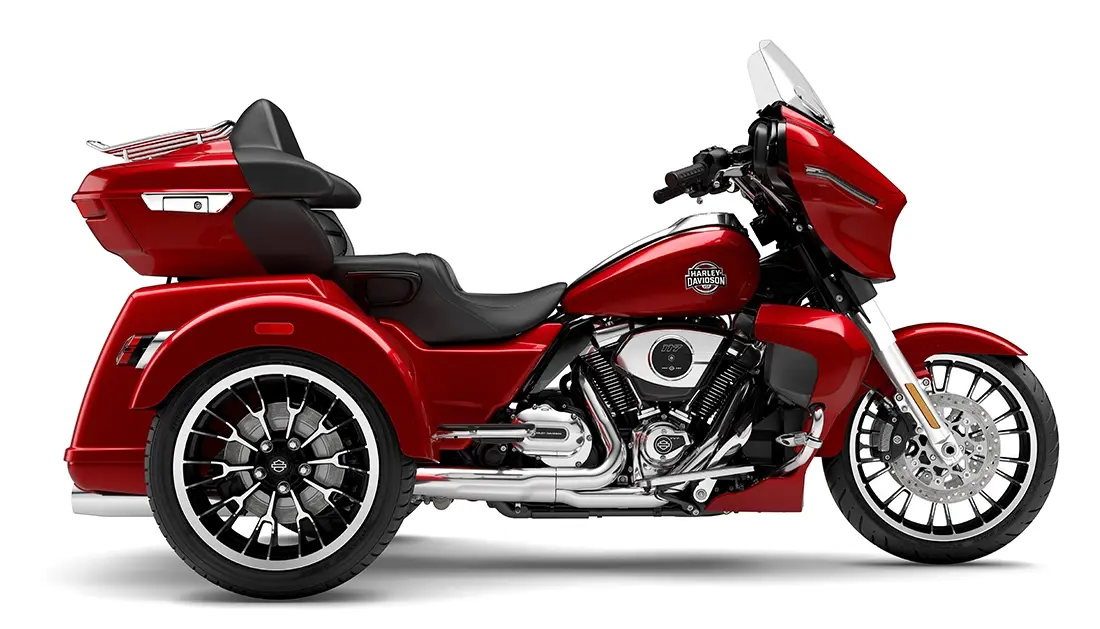

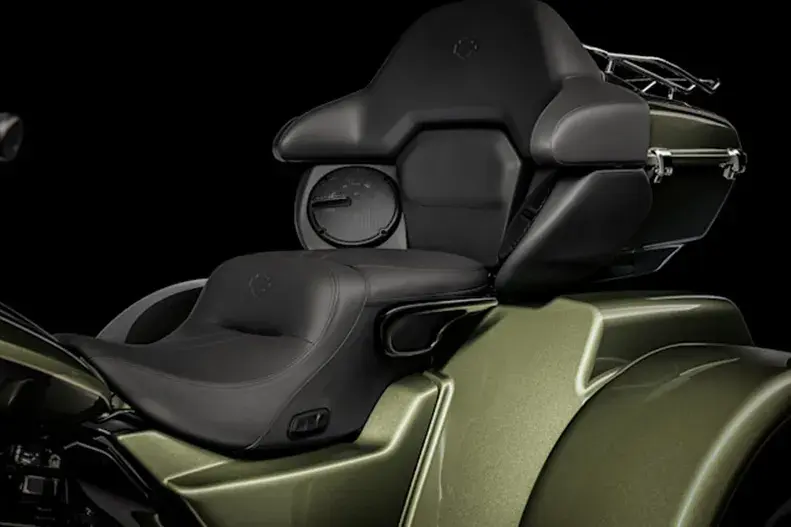

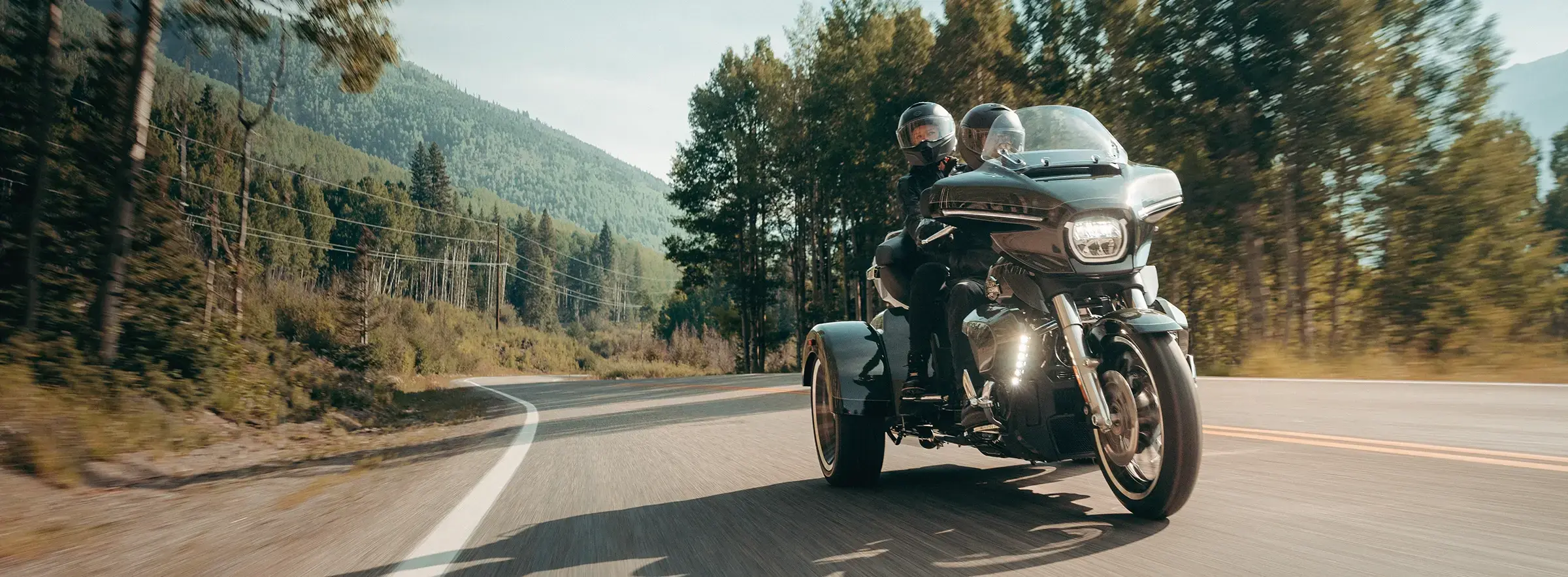

The new 2026 Street Glide 3 Limited doesn’t echo the past. Instead, it creates its own language of long-haul touring. With the newly redesigned Batwing fairing, completely re-engineered suspension, and Milwaukee-Eight® VVT 117 power, every mile feels sharper, more comfortable, and more your own. Add in heated rider and passenger seating, the all-new Grand Tour-Pak® with all the storage you could need, and the Skyline™ OS keeping you connected, and this trike makes the longest rides feel like a rip around the block. Three wheels don’t just change the ride. They change what’s possible.
Disclaimer
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Specifications
Length
2685 mm
Seat height, laden
735 mm
Rake
26
Wheelbase
1720 mm
Tyres, front specifications
130/60B19 M/C 61H
Tyres, rear specifications
P215/45R18 83T
Fuel capacity
22.7 l
Oil capacity
4.7
Weight, as shipped
550 kg
Weight, in running order
566.99 kg

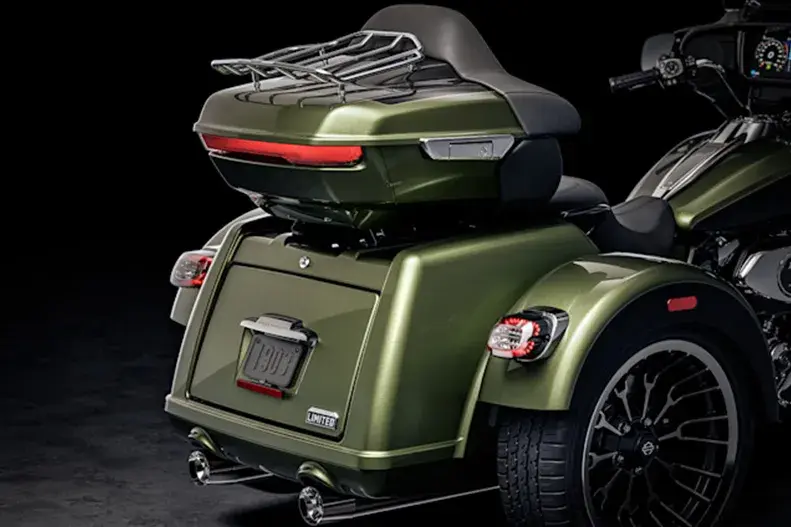

Luggage capacity – Volume
7.1 cu ft (0.201 m3)

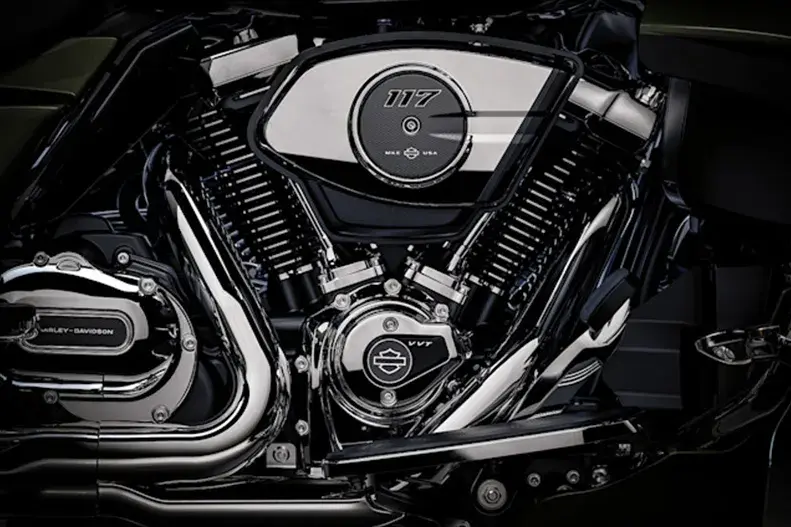

Engine
Milwaukee-Eight® VVT 117
Bore
103.5 mm
Stroke
114.3 mm
Displacement
1923 cm³
Compression ratio
10.3:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-1-2 dual Exhaust
Primary drive
Belt, 30/70 ratio
Gear Ratios (overall) 1st
10.534
Gear Ratios (overall) 2nd
7.302
Gear Ratios (overall) 3rd
5.423
Gear Ratios (overall) 4th
4.392
Gear Ratios (overall) 5th
3.742
Gear Ratios (overall) 6th
3
Engine torque testing method
J1349
Engine torque
175 Nm
Engine Torque (rpm)
3250
Horsepower
105 HP / 78 kW @ 4600 rpm
Lean angle, right (deg.)
N/A
Lean angle, left (deg.)
N/A
Fuel economy testing method
Estimated City/Hwy
Fuel economy
39 mpg (6 l/100 km)
Wheels, front type
Gloss Black/Machined 10-spoke, Cast Aluminum
Wheels, rear type
Gloss Black/Machined 10-spoke, Cast Aluminum
Brakes, caliper type
Front: 32 mm 4 piston fixed, Rear: floating 36 mm piston integrated park brake
Front fork
1.9 in dual bending valve

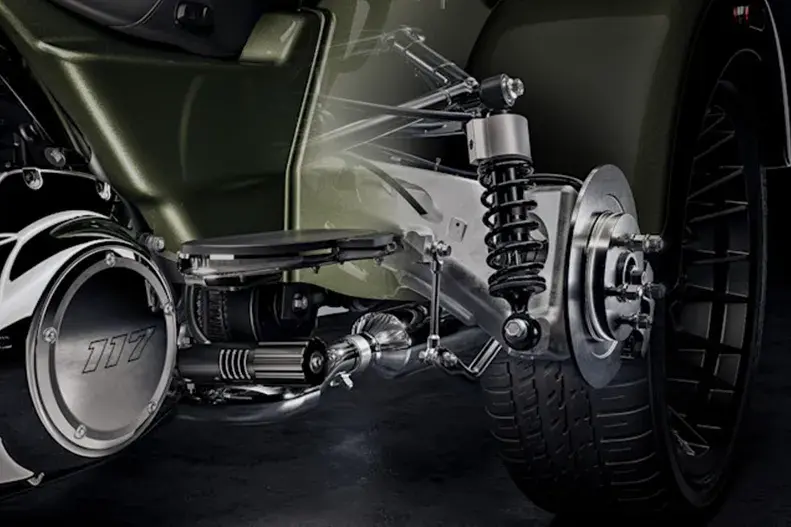

Rear shocks
Hand-adjustable emulsion rear suspension
Brakes, Type
Dual floating rotors (front), fixed rotor (rear)
Infotainment system
Skyline™ OS
Type
Full Color TFT
Watts per channel
50
Speakers
4
Speaker size
Two 6.5 in fairing speakers plus two 6.5 in Tour-pak speakers
AM
Standard
FM
Standard
SD Card, Flash Drive and MP3 - via USB Connection
Supported
Languages
Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish & Vietnamese
Hands-free Mobile Phone - via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner / Media / Navigation
Danish, English (UK/USA default), French (Canada/France), German, Italian, Spanish (Mexico/Spain) & Swedish
Text-to-Speech (TTS) Languages
Same as Languages list
Vehicle information screen
Standard
USB
USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
Bluetooth
Phone/Media Player, Headset
