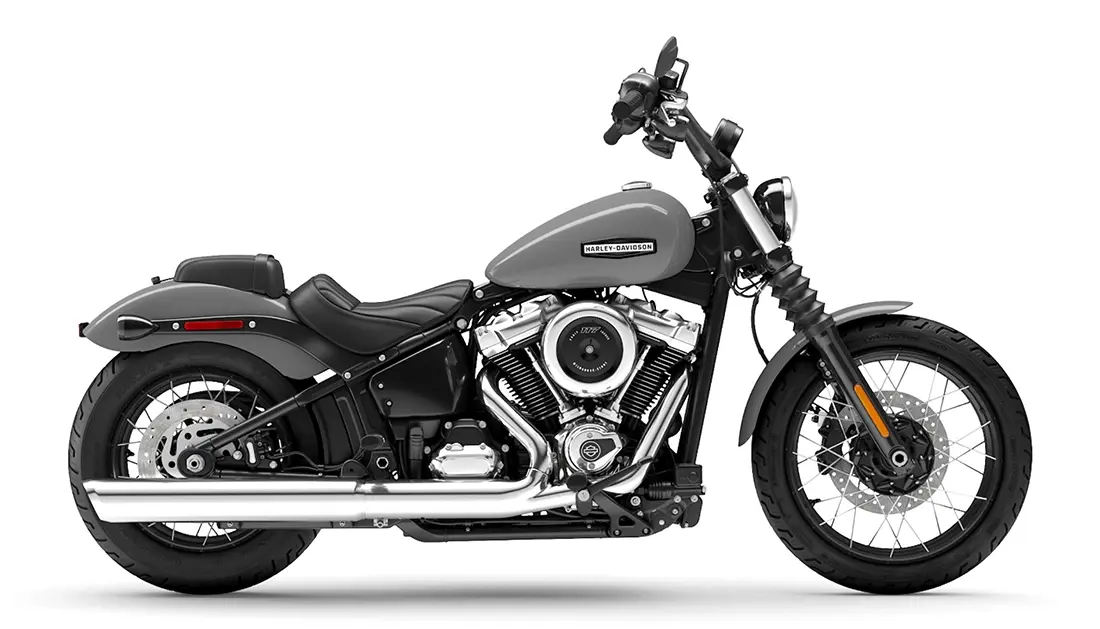

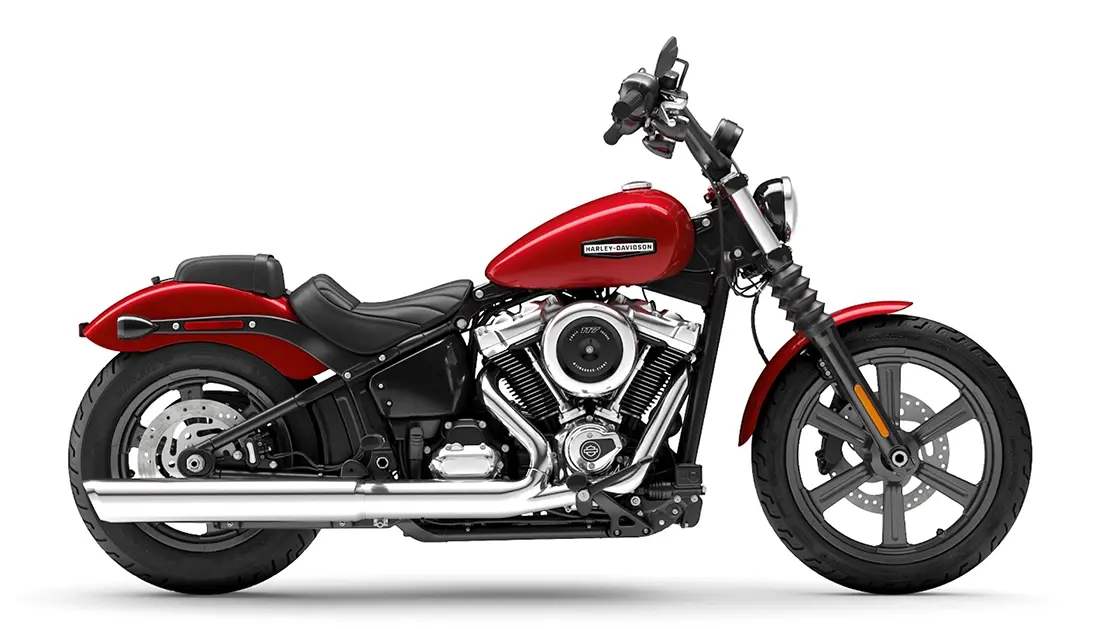

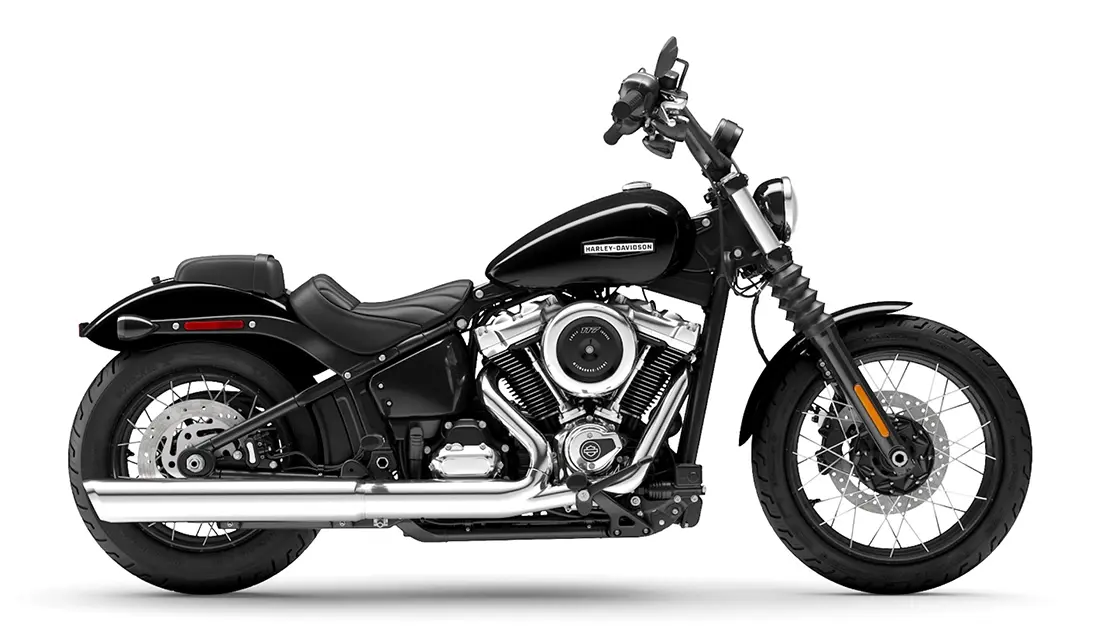

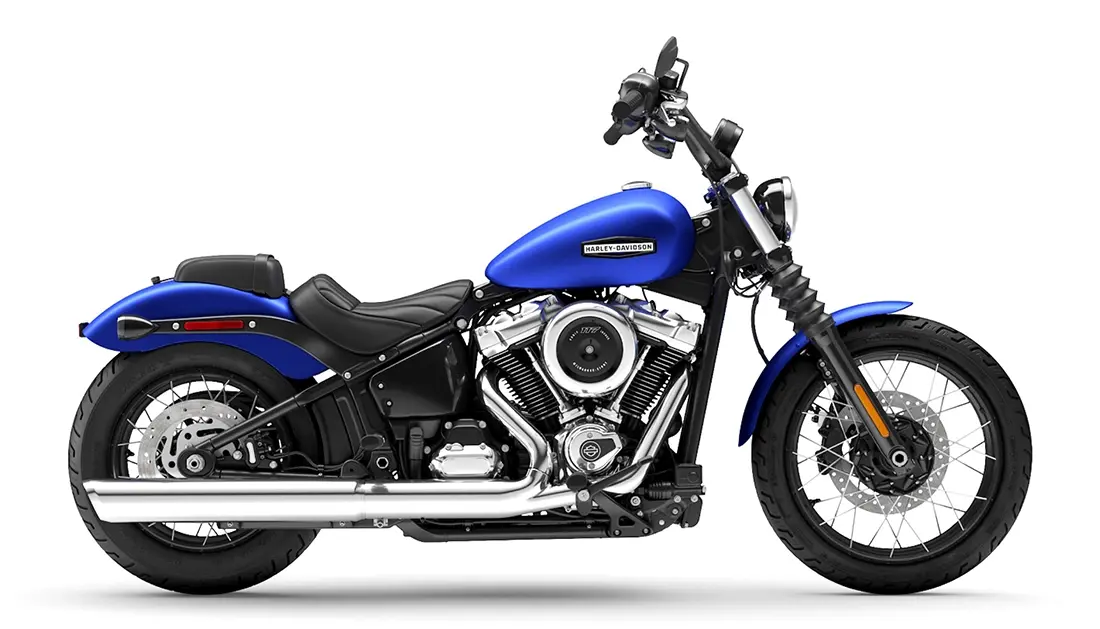

Street Bob® 114
The lightest-weight Softail equipped with a Milwaukee-Eight® 114 engine for a quick and nimble ride with power to spare. It loads of torque for on-demand power you can feel with twist of the throttle, accompanied by that evocative H-D sound.
A perfect performance base for customization with 2-up seating, black steel laced wheels and dark finishes deliver no nonsense, Raw Bobber attitude.
Disclaimer
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Specifications
Length
2320 mm
Seat height, laden
655 mm
Seat height, unladen
680 mm
Ground clearance
125 mm
Rake
30
Trail
157 mm
Wheelbase
1630 mm
Tyres, front specifications
100/90B19,57H,BW
Tyres, rear specifications
150/80B16,77H,BW
Fuel capacity
13.2 l
Oil capacity
4.7
Weight, as shipped
286 kg
Weight, in running order
297.10 kg
Engine
Milwaukee-Eight® 114
Bore
102 mm
Stroke
114.3 mm
Displacement
1868 cm³
Compression ratio
10.5:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)

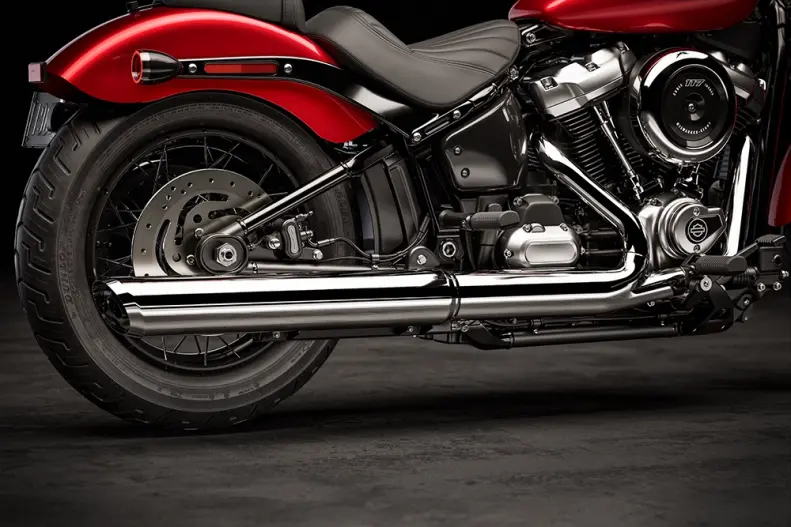

Exhaust
2-into-2 offset shotgun; catalyst in muffler
Primary drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Engine torque testing method
EC 134/2014
Engine torque
161 Nm
Engine Torque (rpm)
3000
Lean angle, right (deg.)
28.5
Lean angle, left (deg.)
28.5
Fuel economy testing method
EU 134/2014
Fuel economy
5 l/100 km
CO2 emissions testing method
EU 134/2014
CO2 emissions
128 g/km CO2
Wheels, front type
Black, Annihilator cast aluminum
Wheels, rear type
Black, Annihilator cast aluminum
Brakes, caliper type
4-piston fixed front and 2-piston floating rear

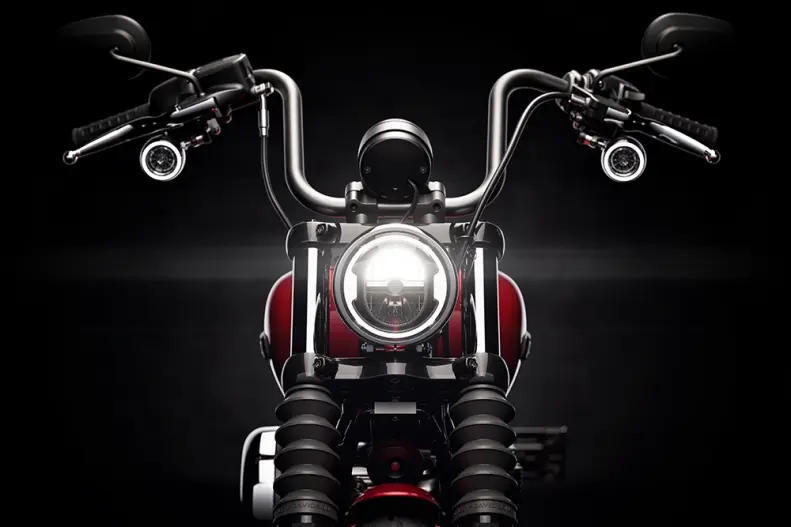

Lights (as per country regulation), Indicator Lamps
High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS (if equipped), security, low battery voltage, low fuel

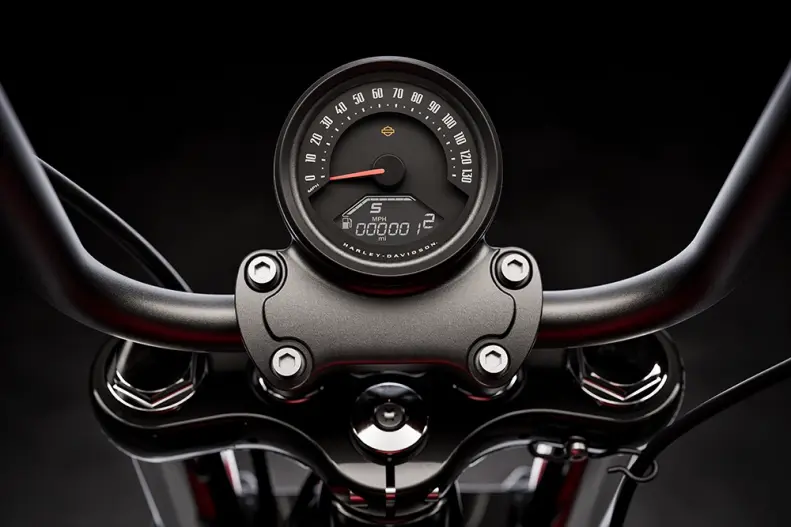

Gauges
2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
