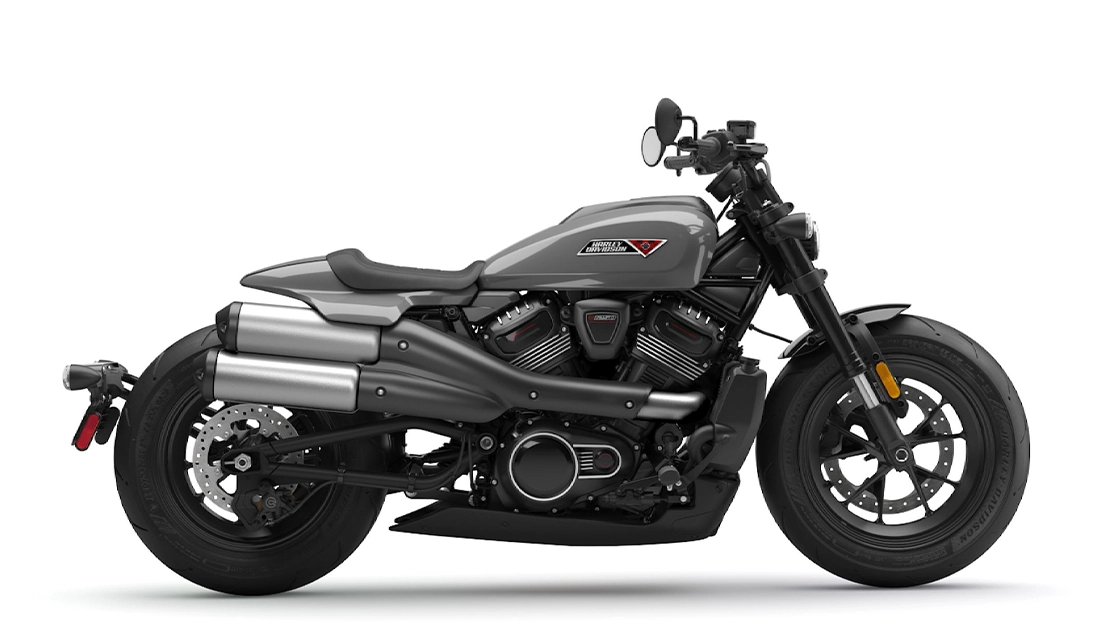

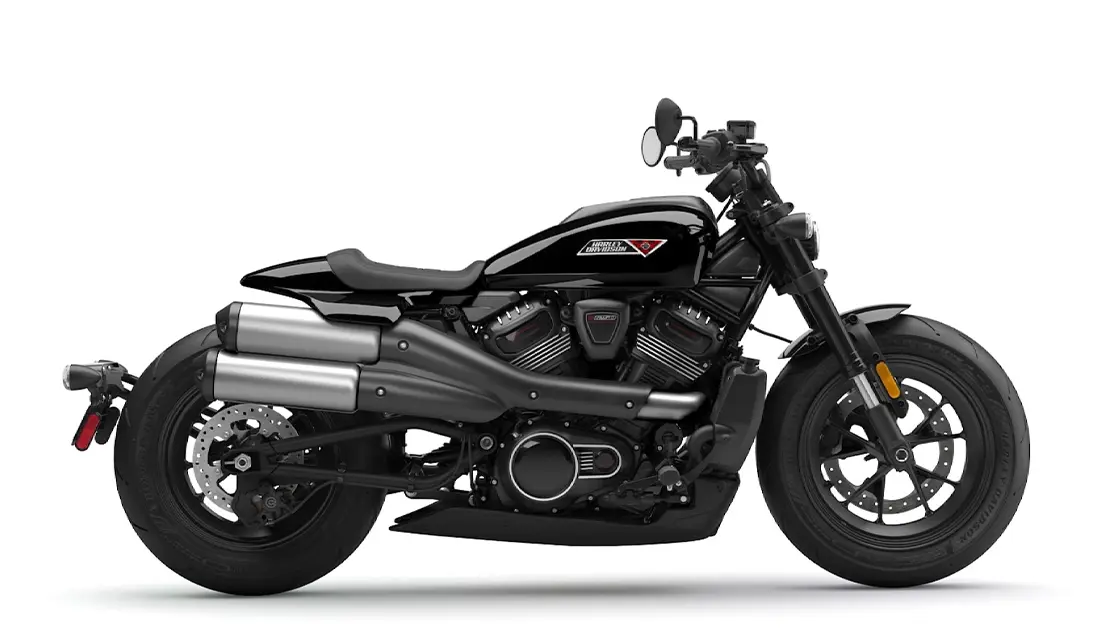

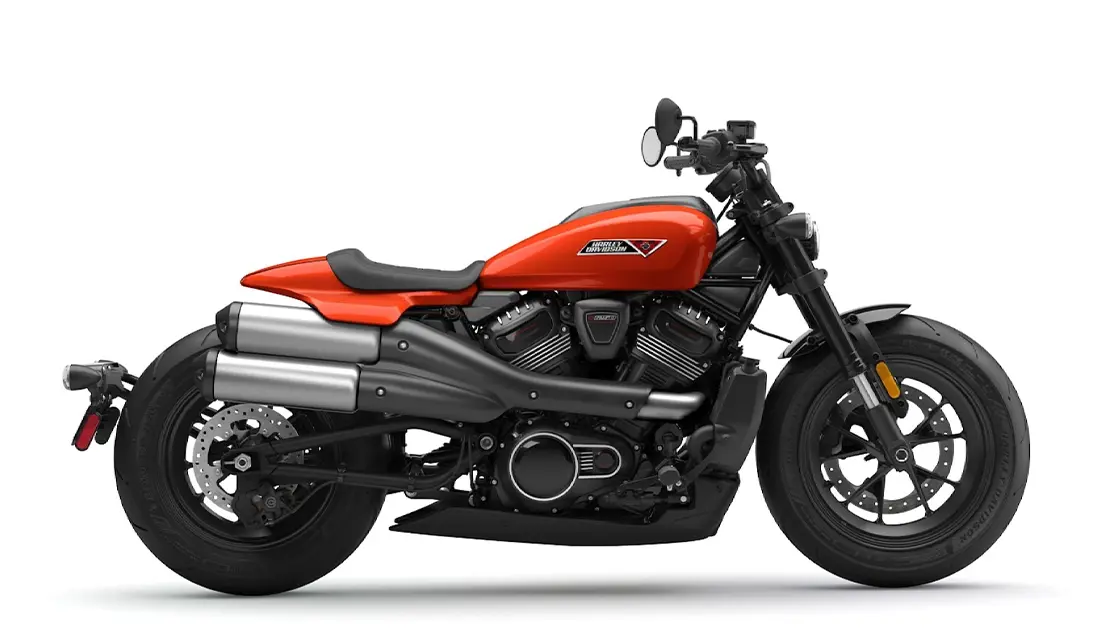

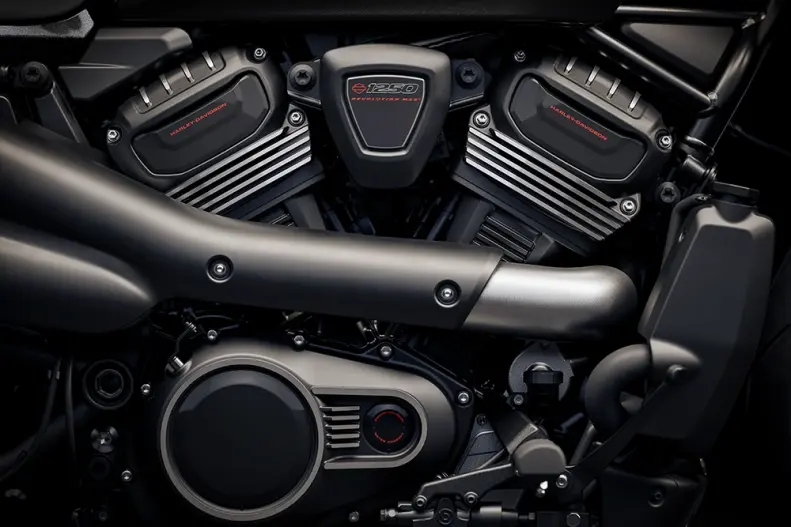

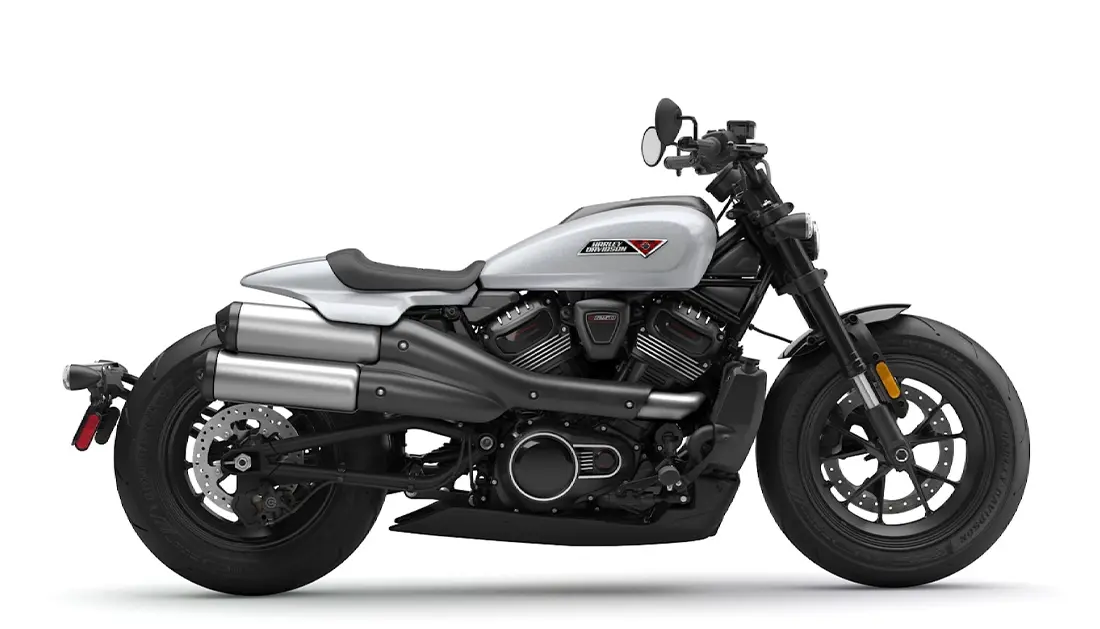

With 121 hp from the liquid-cooled Revolution Max® 1250T motor, a wide front tire, 2-1-2 scrambler-style exhaust, and suspension tuned for performance and comfort, the 2026 Sportster S reimagines classic styling with sharp, modern intent.
Disclaimer
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Specifications
Length
2270 mm
Overall Width
840 mm
Overall Height
1085 mm
Seat height, laden
765 mm
Ground clearance
90 mm
Rake
30
Trail
148 mm
Wheelbase
1520 mm
Tyres, front specifications
160/70TR17 73V
Tyres, rear specifications
180/70R16 77V
Fuel capacity
11.7 l
Oil capacity
4.5
Weight, as shipped
221 kg
Weight, in running order
227.70 kg
Tyre, Type
Dunlop® Harley-Davidson Series, radial
Fork Angle
28
Reserve Fuel Capacity, Fuel Injection
31 l
Coolant Capacity
2.2 l
Gross Axle Weight Rating, Front
163 kg
Gross Axle Weight Rating, Rear
270 kg
Engine
Engine Revolution® Max 1250T
Bore
105 mm
Stroke
72.3 mm
Displacement
1252 cm³
Compression ratio
12.0:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)

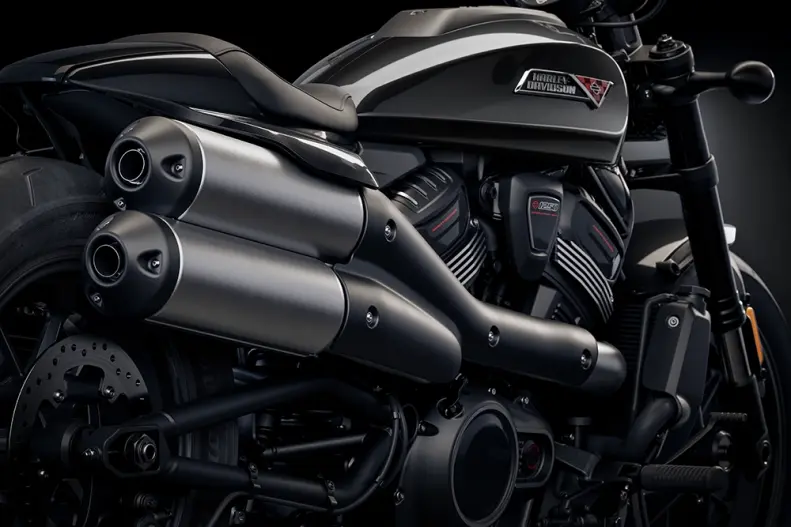

Exhaust
2-into-1-into-2; catalyst in muffler
Primary drive
Gear, 49/89 ratio
Gear Ratios (overall) 1st
12.21
Gear Ratios (overall) 2nd
9.022
Gear Ratios (overall) 3rd
6.994
Gear Ratios (overall) 4th
5.641
Gear Ratios (overall) 5th
4.731
Gear Ratios (overall) 6th
4.131
Engine torque testing method
EC 134/2014
Engine torque
126 Nm Nm
Engine Torque (rpm)
6000
Horsepower
121 HP / 90 kW @ 7500 rpm
Lean angle, right (deg.)
35
Lean angle, left (deg.)
35
Fuel economy testing method
EU 134/2014
Fuel economy
5.1 l/100 km
CO2 emissions testing method
EU 134/2014
CO2 emissions
126 g/km
Wheels, front type
Aluminum cast, satin black
Wheels, rear type
Aluminum cast, satin black
Brakes, caliper type
Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper

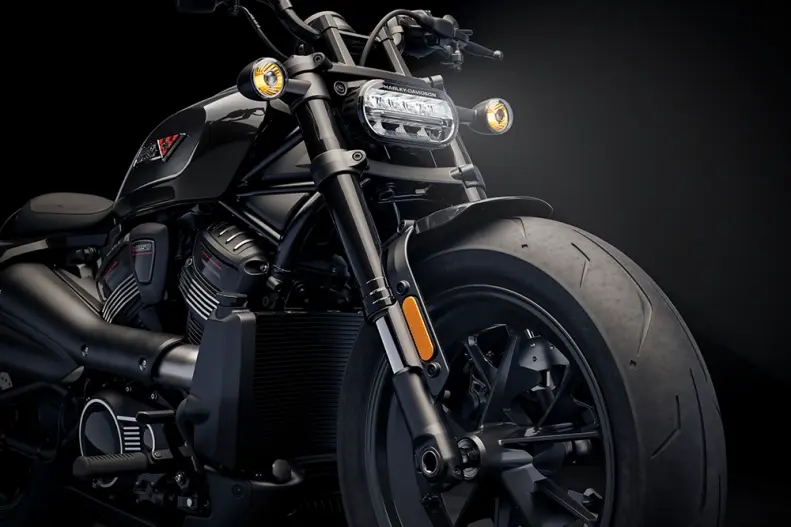

Front fork
43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps
Rear shocks
Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability
Brakes, Type
Front: single rotor, floating, tower- mounted Rear: solid uniform expansion rotor
ABS
Standard

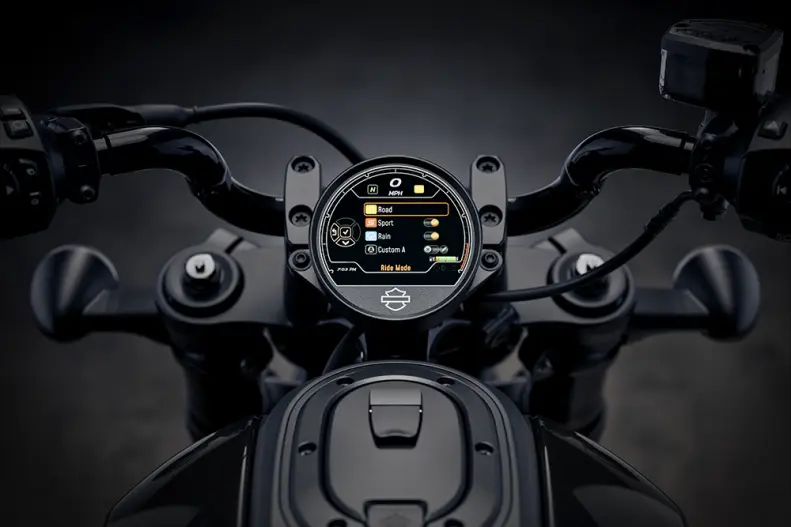

Gauges
4 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)
Battery
Sealed, maintenance-free, absorbed glass mat (AGM) battery, 12V, 12Ah, 225 CCA at 0°F
Charging
Three-phase, 45 Amp system (300 Watts @13 Volts, 1200 rpm, 585 Watts max power @ 13 Volts, 2250 rpm)
Starting
0.9 kW electric with direct drive starter motor engagement
Electric Power Outlet
USB C-Type , Output 5V at 2.4 Amp
Type
Color TFT
Headset specifications (if equipped)
Bluetooth
Hands-free Mobile Phone - via Bluetooth
Standard
Screen size
4 in
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner / Media / Navigation
Phone dependent
Text-to-Speech (TTS) Languages
Phone dependent
Rider/Passenger Intercom
Headset function only
Vehicle information screen
TPMS, Engine temp, Battery Voltage, Ambient Air Temp
USB
Charging and Instrument update, USB-C, 5V, 3A
Bluetooth
Phone/Media Supported
