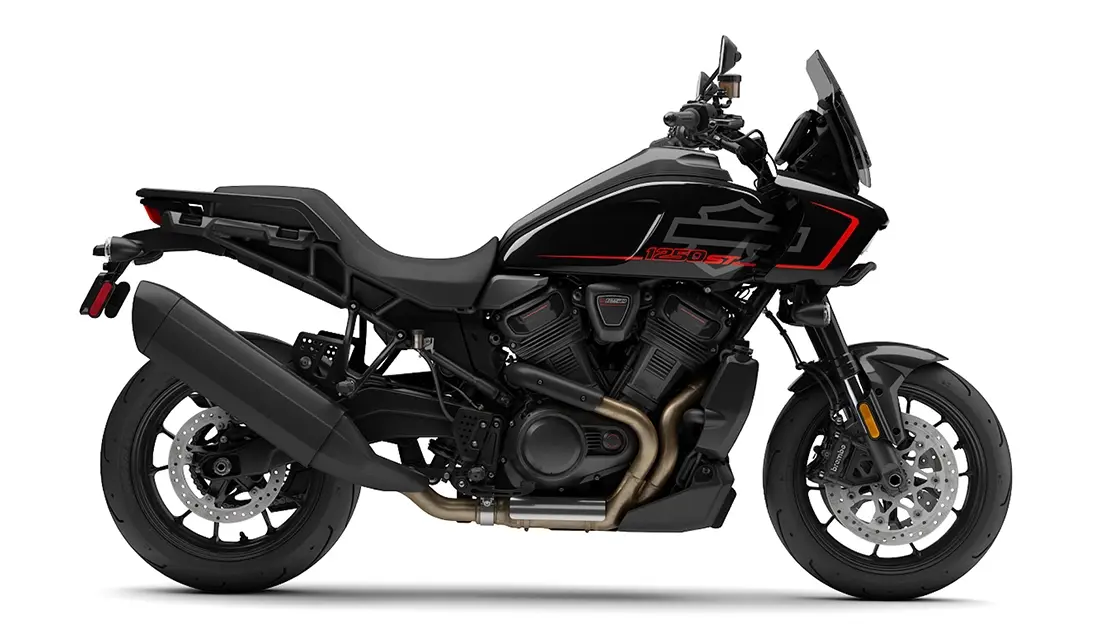

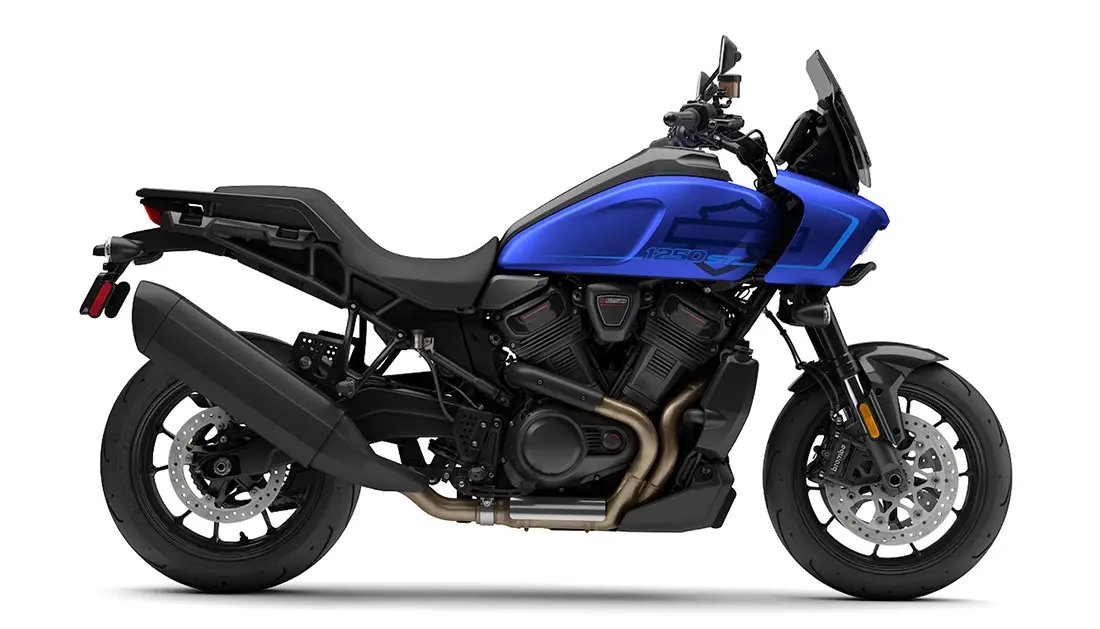

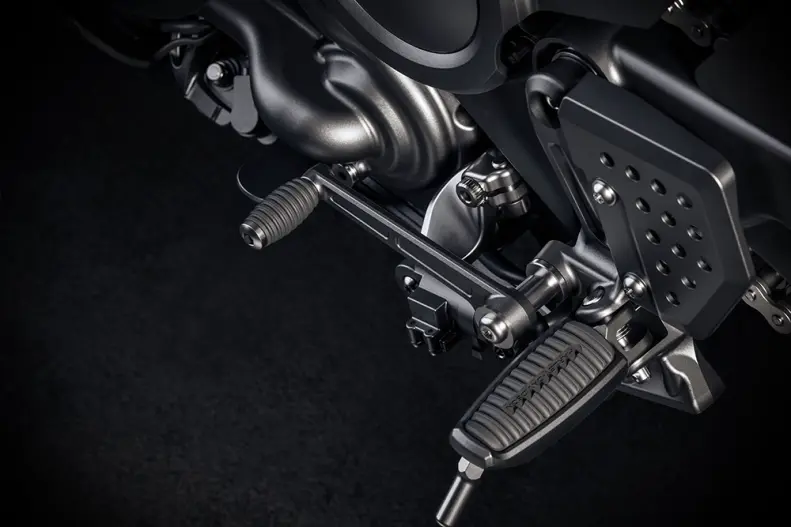

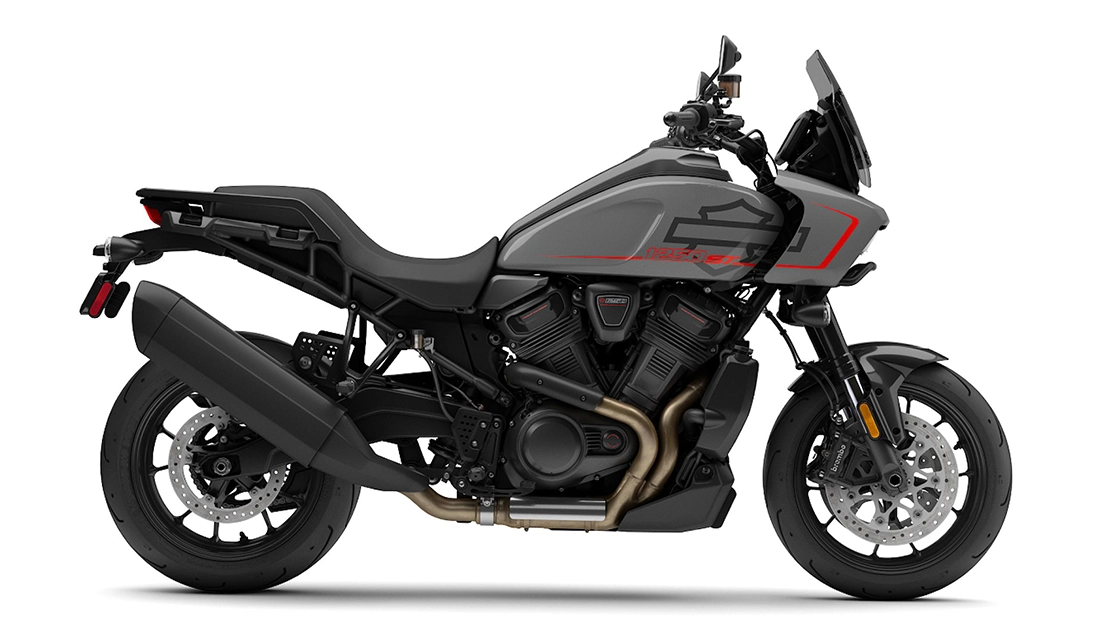

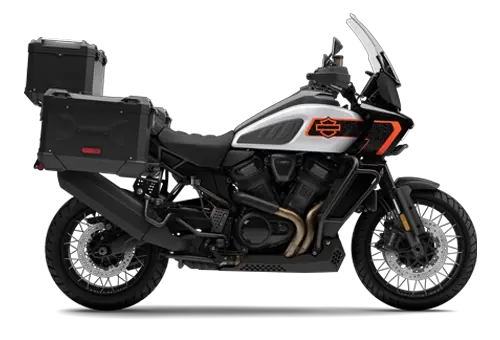

The 2026 Pan America 1250 ST is for riders who know the best stories aren’t told in a straight line. Featuring a 150 hp Revolution Max® motor, the new clutchless Quick Shifter, Adaptive Ride Height, all-new ride modes, and industry-standard 432 mm wheels for easy customisation, it’s a street-tuned, tech-forward machine that moves like you belong everywhere.
Disclaimer
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Specifications
Length
2240 mm
Ground clearance
170 mm
Rake
25
Trail
95 mm
Wheelbase
1580 mm
Tyres, front specifications
120/70Z17 58W
Tyres, rear specifications
180/55ZR17 73W
Fuel capacity
21.2 l
Oil capacity
4.5
Weight, as shipped
232 kg
Weight, in running order
247.66 kg
Tyre, Type
Michelin™Scorcher™"Adventure", Radial

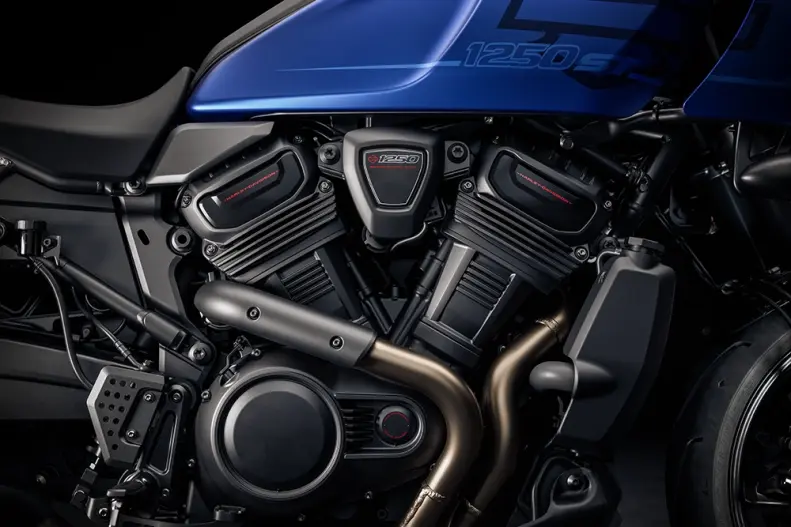

Engine
Revolution® Max 1250
Bore
105 mm
Stroke
72.3 mm
Displacement
1252 cm³
Compression ratio
13.0:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-1-into-1; catalyst in header
Primary drive
Gear, 49/89 ratio
Gear Ratios (overall) 1st
13.11
Gear Ratios (overall) 2nd
9.687
Gear Ratios (overall) 3rd
7.509
Gear Ratios (overall) 4th
6.057
Gear Ratios (overall) 5th
5.08
Gear Ratios (overall) 6th
4.436
Engine torque testing method
EC 134/2014
Engine torque
124 Nm
Engine Torque (rpm)
6750
Horsepower
149 HP / 111 kW @ 8750 rpm
Lean angle, right (deg.)
37
Lean angle, left (deg.)
37
Fuel economy testing method
EU 134/2014
Fuel economy
5. l/100 km
CO2 emissions testing method
EU 134/2014
CO2 emissions
129 g/km
Wheels, front type
Aluminum cast, satin black
Wheels, rear type
Aluminum cast, satin black

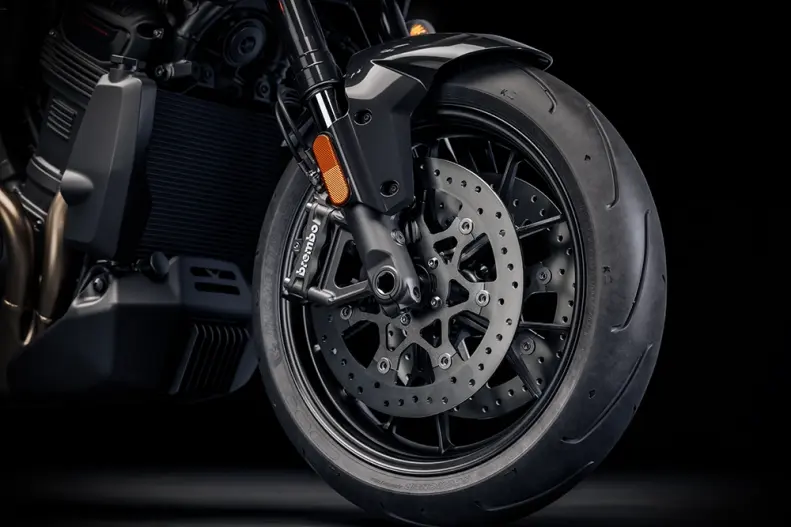

Brakes, caliper type
Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Front fork
47mm inverted fork with electronically adjustable preload and manually adjustable compression and rebound. Aluminum fork triple clamps

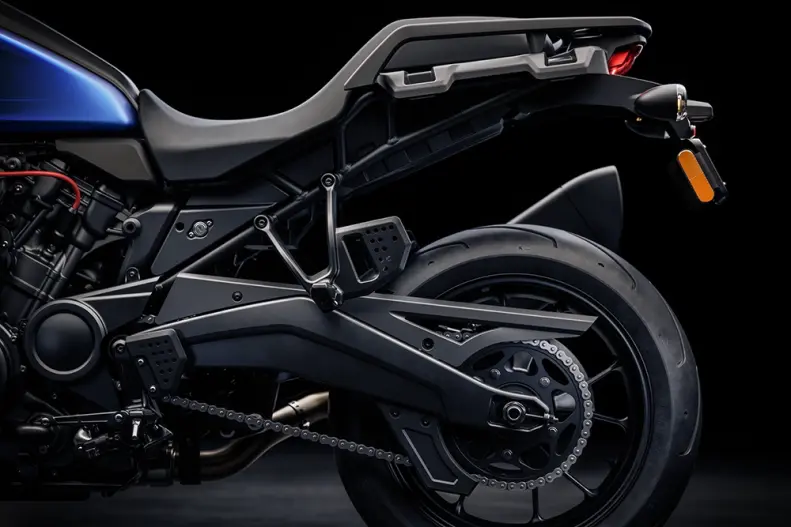

Rear shocks
Linkage-mounted monoshock with automatic electronic preload control and manually adjustable compression & rebound damping
Brakes, Type
Front: dual rotor, floating, hub mounted; Rear: solid uniform expansion rotor
Lights (as per country regulation), Indicator Lamps
LED Bullet Turn Signals
Gauges
6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)
Type
Color TFT w/ Touch
Headset specifications (if equipped)
Bluetooth
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner / Media / Navigation
Phone dependent
Text-to-Speech (TTS) Languages
Phone dependent
Rider/Passenger Intercom
Headset function only
Vehicle information screen
TPMS, Engine temp, Battery Voltage, Ambient Air Temp
USB
Charging and Instrument update, USB-C, 5V, 3A
Bluetooth
Phone/Media Supported
