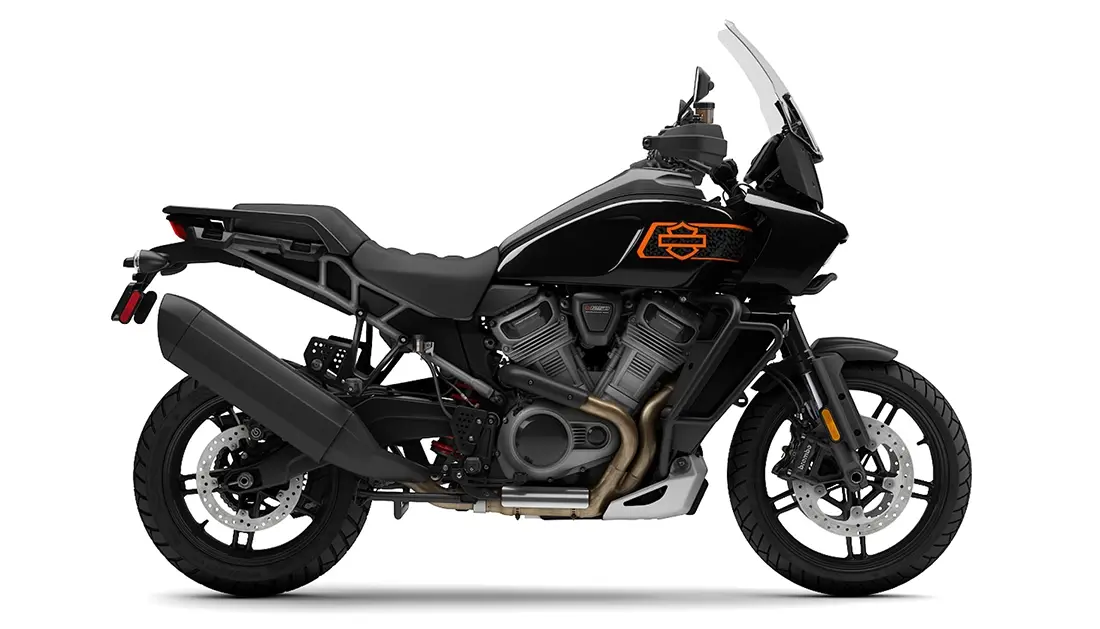

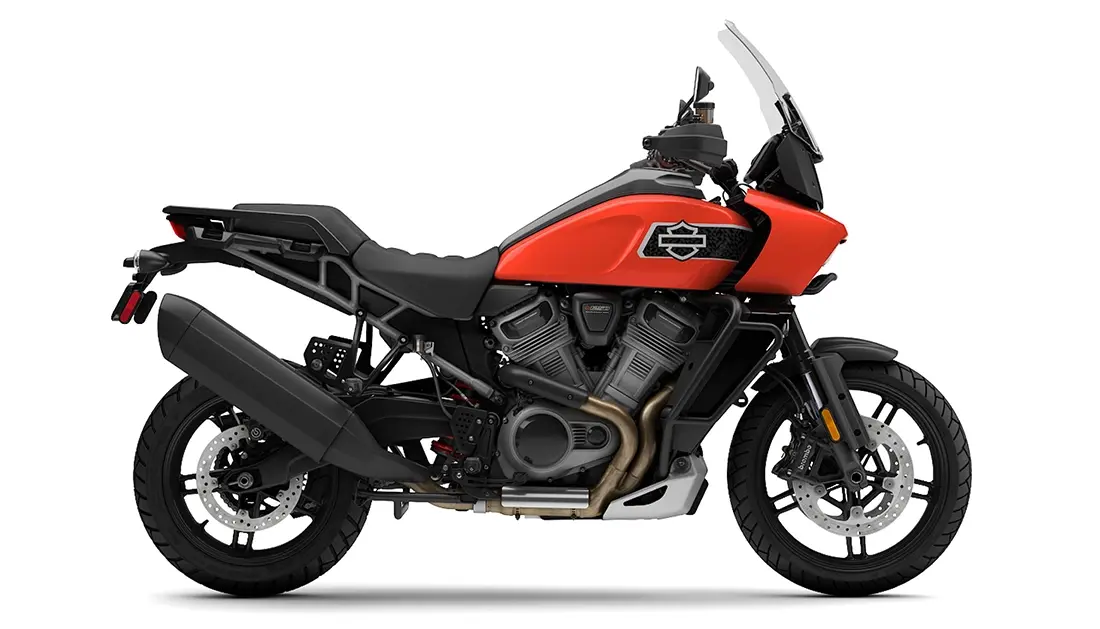

From city slab to backcountry rock, the Pan America 1250 Special delivers 150 hp of adaptable power at the flick of the throttle, in a package that weighs less than 570 lbs. With Adaptive Ride Height, Rider Safety Enhancements, and a 173 mm touchscreen display all standard, it’s packed with tech and built to take you wherever you want to go, even if the road doesn’t.
Disclaimer
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Specifications
Length
2270 mm
Ground clearance
210 mm
Rake
25
Trail
157 mm
Wheelbase
1585 mm
Tyres, front specifications
120/70R19 60V
Tyres, rear specifications
170/60R17 72V
Fuel capacity
21.2 l
Oil capacity
4.5
Weight, as shipped
242 kg
Weight, in running order
258.09 kg
Static Ground Clearance
210 mm
Fork Angle
25
Coolant Capacity
2.2 l l
Gross Axle Weight Rating, Front
181 kg kg
Gross Axle Weight Rating, Rear
302 kg kg
Engine
Revolution® Max 1250
Bore
105 mm
Stroke
72 mm
Displacement
1252 cm³
Compression ratio
13.0:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-1-into-1; catalyst in header
Primary drive
Gear, 49/89 ratio
Gear Ratios (overall) 1st
13.11
Gear Ratios (overall) 2nd
9.687
Gear Ratios (overall) 3rd
7.509
Gear Ratios (overall) 4th
6.057
Gear Ratios (overall) 5th
5.08
Gear Ratios (overall) 6th
4.436
Final Drive
Chain, 19/48 ratio
Clutch
Mechanical, 8 plate wet, assist & slip, 1090N
Engine torque testing method
EC 134/2014
Engine torque
124 Nm
Engine Torque (rpm)
6,750
Lean angle, right (deg.)
42
Lean angle, left (deg.)
42
Fuel economy testing method
EU 134/2014
Fuel economy
5.1 l/100 km
CO2 emissions testing method
EU 134/2014
CO2 emissions
129 g/km
Wheels, front type
Aluminum cast, satin black
Wheels, rear type
Aluminum cast, satin black
Wheels, optional style type
Annodized aluminum tubeless laced

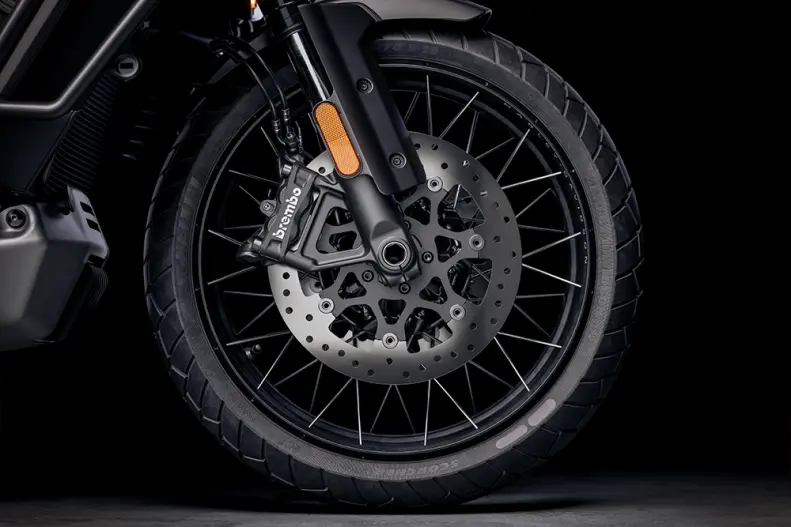

Brakes, caliper type
Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Front fork
47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps

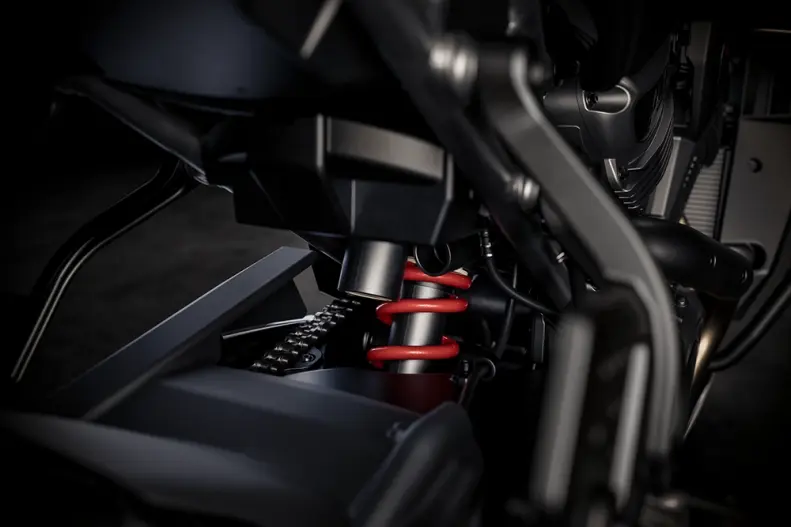

Rear shocks
Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping
Brakes, Type
Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor

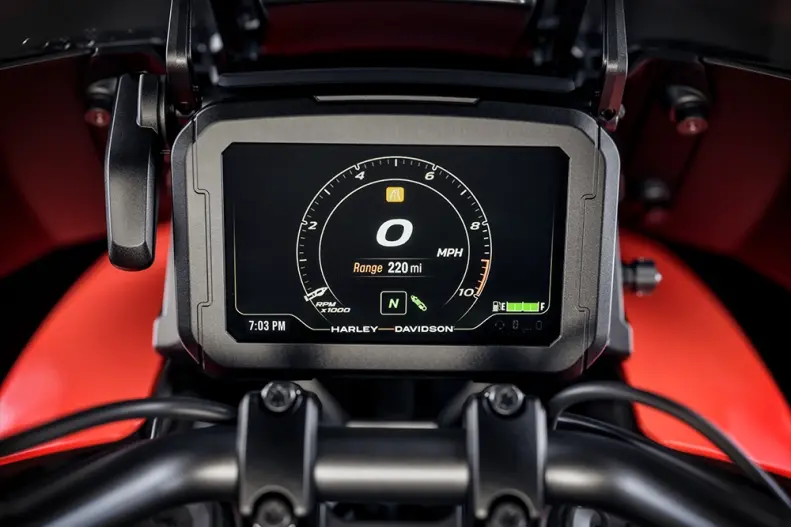

Type
Color TFT w/ Touch
Headset specifications (if equipped)
Bluetooth
Hands-free Mobile Phone - via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner / Media / Navigation
Phone dependent
Text-to-Speech (TTS) Languages
Phone dependent
Rider/Passenger Intercom
Headset function only
Vehicle information screen
TPMS, Engine temp, Battery Voltage, Ambient Air Temp
USB
Charging and Instrument update, USB-C, 5V, 3A
Bluetooth
Phone/Media Supported
