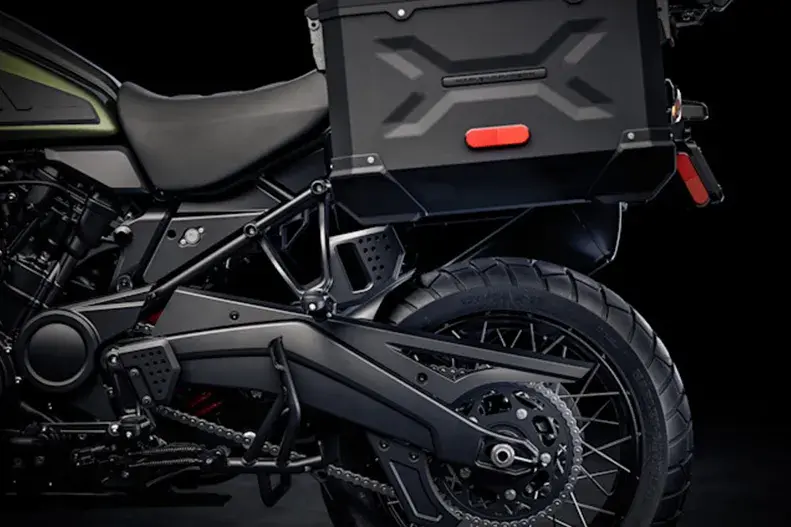

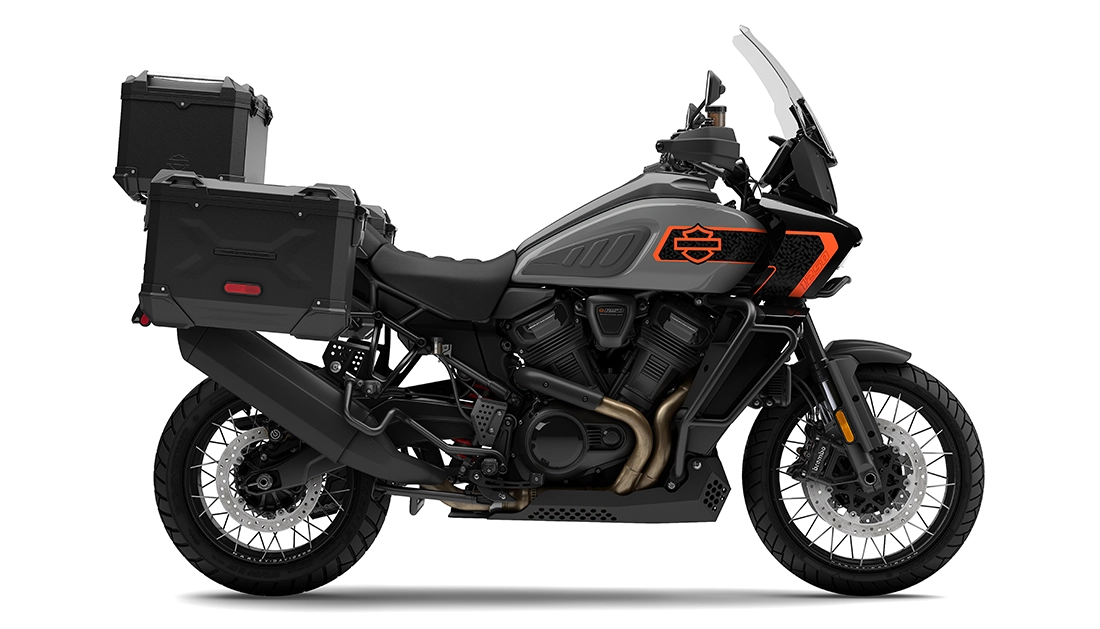

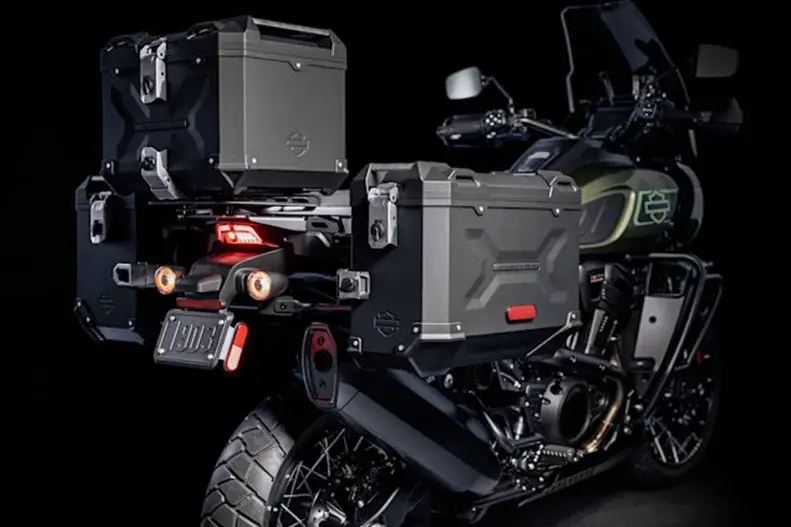

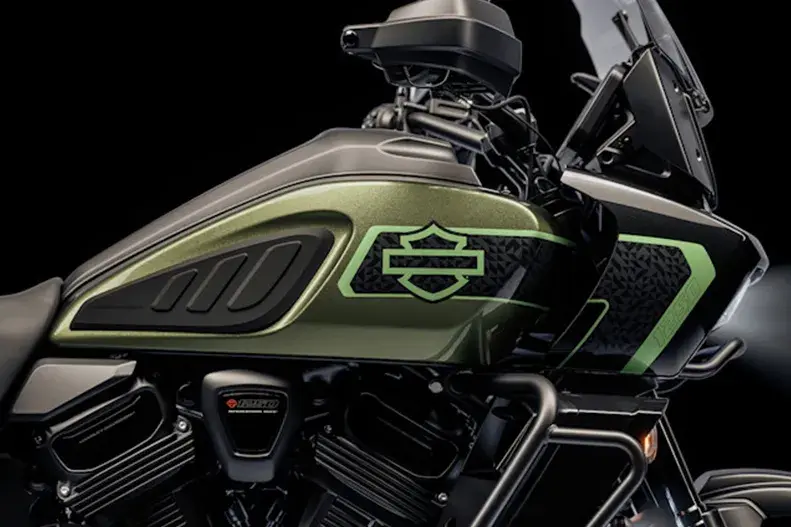

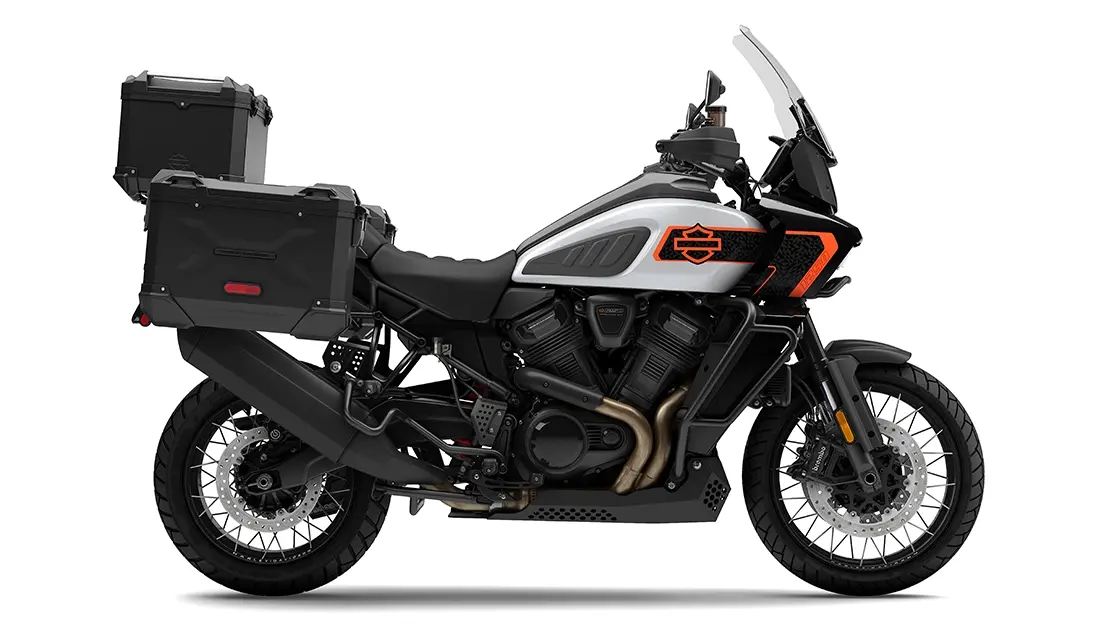

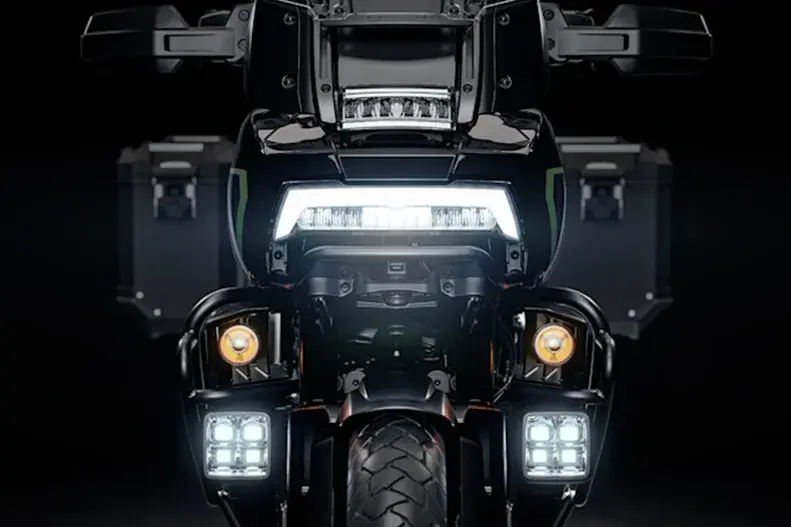

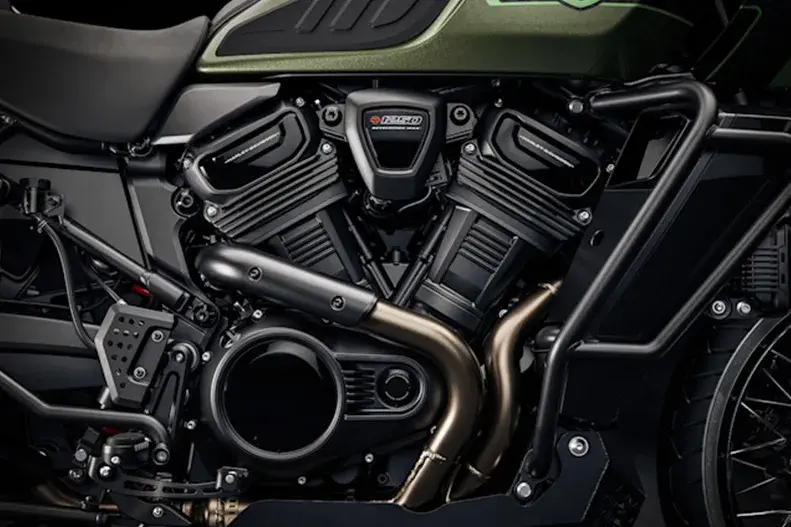

The 2026 Pan America 1250 Limited steps up with new SW-MOTECH aluminium luggage, fresh paint and graphics, and refined finishes on the Revolution® Max 1250 motor for a sharper, classic look. Standard tubeless laced wheels, Adaptive Ride Height, and a Screamin’ Eagle® Quickshifter bring confidence and control when the ground gets unpredictable, while factory-installed guarding and auxiliary lighting make it a true turn-key adventure machine. It’s fully equipped, straight from the factory, and itching to get dirty.
Disclaimer
Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Specifications
Length
2345 mm
Rake
25
Trail
108 mm
Wheelbase
1580 mm
Tyres, front specifications
120/70R19 60V
Tyres, rear specifications
170/60R17 72V
Oil capacity
4.5 L
Weight, as shipped
284 kg kg
Weight, in running order
299.82 kg kg
Luggage capacity – Volume
4.24 cu ft (0.12 m³)
Engine
Revolution® Max 1250
Bore
105 mm mm
Stroke
72.3 mm mm
Displacement
1252 cm³ cm³
Compression ratio
13.0:1
Fuel system
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-1-into-1; catalyst in header
Primary drive
Chain, 19/48 ratio
Gear Ratios (overall) 1st
13.11
Gear Ratios (overall) 2nd
9.687
Gear Ratios (overall) 3rd
7.509
Gear Ratios (overall) 4th
6.057
Gear Ratios (overall) 5th
5.08
Gear Ratios (overall) 6th
4.436
Engine torque testing method
J1349
Engine torque
127 Nm Nm
Engine Torque (rpm)
6,750
Horsepower
150 HP / 112 kW @ 8750 rpm
Fuel economy testing method
Estimated City/Hwy
Fuel economy
46 mpg (5.1 L/100 km)
Wheels, front type
Aluminum cast, satin black
Wheels, rear type
Aluminum cast, satin black
Brakes, caliper type
Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Front fork
1.9 in inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps
Rear shocks
Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping
Brakes, Type
Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor
Type
Color TFT w/ Touch
Headset specifications (if equipped)
Bluetooth
Languages
Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/French), German, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Turkish, Vietnamese
Hands-free Mobile Phone - via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone Dependent
Voice Recognition Languages: Tuner / Media / Navigation
Phone Dependent
Text-to-Speech (TTS) Languages
Phone Dependent
Rider/Passenger Intercom
Headset Function Only
Vehicle information screen
TPMS, Engine temp, battery Voltage, Ambient Air Temp
USB
Charging and instrument update, USB-C, 5V, 3A
Bluetooth
Phone/Media Supported
